Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 30 FRAMEFIG. 31 STANDFIG. 32 FOOTRESTFIG. 33 FUEL TANKFIG. 34 FRAME COVERFIG. 35 FRONT LEG SHIELDFIG. 36 FRONT FENDERFIG. 37 HANDLEBARFIG. 38 HEADLAMP HOUSINGFIG. 39 HANDLE LEVERFIG. 40 REAR FENDERFIG. 41 LUGGAGE BOXFIG. 42 LABELFIG. 43 SEATFIG. 44 FRONT FORK DAMPERFIG. 45 STEERING STEMFIG. 46 FRONT WHEELFIG. 47 FRONT CALIPERFIG. 48 FRONT MASTER CYLINDERFIG. 49 REAR SWINGINGARMFIG. 50 CHAIN CASEFIG. 51 REAR WHEEL

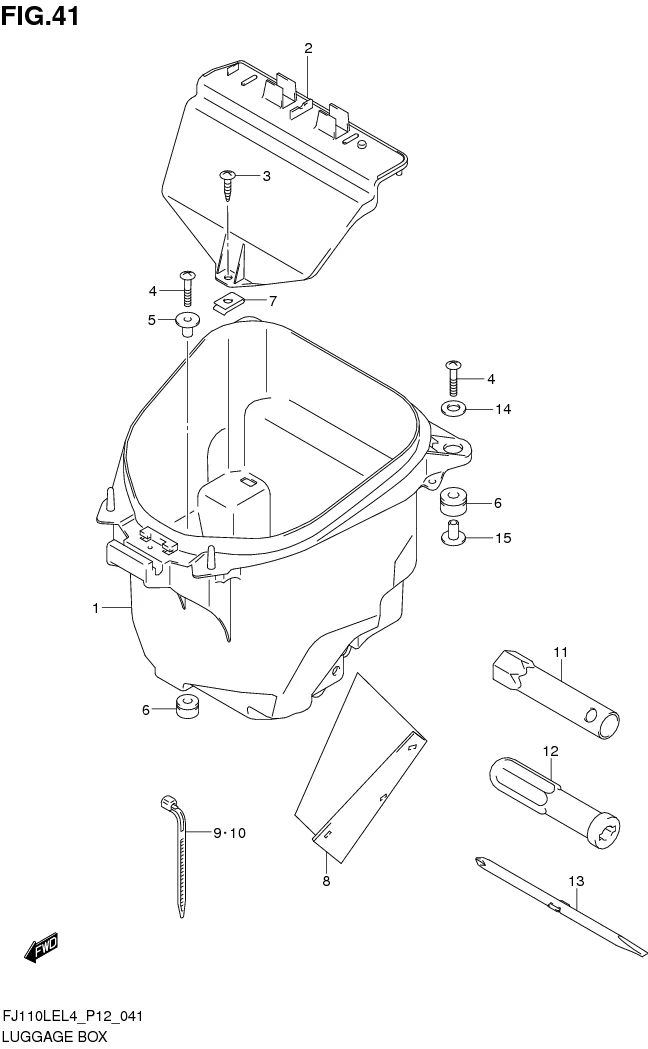

FIG. 41 LUGGAGE BOX

FIG. 41 LUGGAGE BOX
No No. Part Description Qty Price Per Pcs Remarks
1 92211-22J00-000
SUB: 92211B22J00N000		 BOX, LUGGAGE 1 Rp151.500
2 92212-22J00-000
SUB: 92212B22J00N000		 LID, BATTERY BOX 1 Rp35.500
3 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 1 Rp4.000
4 02142-0630A-000
SUB: 02142B0630AN000		 SCREW 3 Rp6.500
5 92215-20G00-000
SUB: 92215B20G00N000		 SPACER, LUGGAGE BOX 1 Rp8.000
6 DISCONTINUE
SUB: 92216B45H00N000		 CUSHION, LUGGAGE BOX 3 -
7 09148-05045-000
SUB: 09148B05045N000		 NUT 1 Rp4.000
8 92113-22J00-000
SUB: 92113B22J00N000		 MUDGUARD, LUGGAGE BOX 1 Rp9.000
9 36990-25G00-000 CLAMP (L:125) 2 Rp13.000
10 09407-18402-000
SUB: 09407B18402N000		 CLAMP (L:165) 1 Rp8.000
11 96512-10J00-000 SPANNER, BOX (16) 1 Rp10.500
12 09814-00016-000 DRIVER GRIP 1 Rp5.500
13 09814-00030-000 DRIVER 1 Rp7.000
14 09160-06136-000
SUB: 09160B06136N000		 WASHER (6.5X28X1.6) 2 Rp3.500
15 92215-22J00-000 SPACER 2 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
