Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 30 FRAMEFIG. 31 STANDFIG. 32 FOOTRESTFIG. 33 FUEL TANKFIG. 34 FRAME COVERFIG. 35 FRONT LEG SHIELDFIG. 36 FRONT FENDERFIG. 37 HANDLEBARFIG. 38 HEADLAMP HOUSINGFIG. 39 HANDLE LEVERFIG. 40 REAR FENDERFIG. 41 LUGGAGE BOXFIG. 42 LABELFIG. 43 SEATFIG. 44 FRONT FORK DAMPERFIG. 45 STEERING STEMFIG. 46 FRONT WHEELFIG. 47 FRONT CALIPERFIG. 48 FRONT MASTER CYLINDERFIG. 49 REAR SWINGINGARMFIG. 50 CHAIN CASEFIG. 51 REAR WHEEL

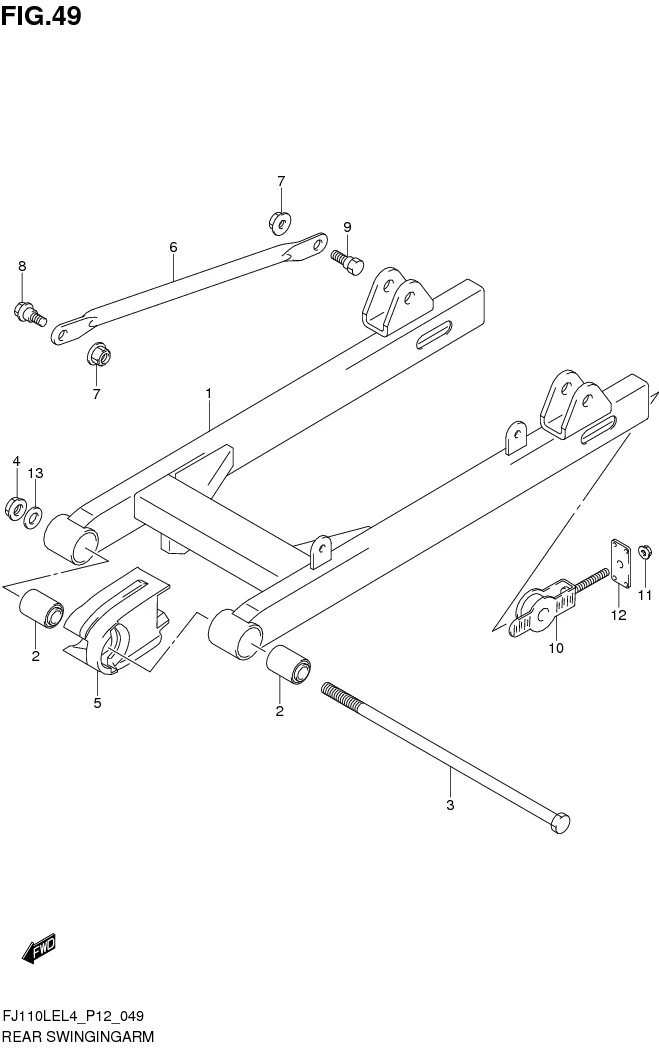

FIG. 49 REAR SWINGINGARM

FIG. 49 REAR SWINGINGARM
No No. Part Description Qty Price Per Pcs Remarks
1 61100-22J10-291
SUB: 61100B22J10N291		 SWINGINGARM, REAR (BLACK) 1 Rp436.000
2 61230-22J00-000
SUB: 61230B22J00N000		 BUSHING 2 Rp34.500
3 61211-22J10-000
SUB: 61211B22J00N000		 SHAFT, REAR SWINGINGARM 1 Rp29.500
4 08319-3112B-000
SUB: 08319B3112BN000		 NUT 1 Rp9.000
5 61273-22J00-000
SUB: 61273B22J00N000		 BUFFER, CHAIN TOUCH DEFENSE 1 Rp20.500
6 64310-45H00-000
SUB: 64310B45H00N000		 TORQUELINK, REAR 1 Rp29.000
7 08319-3108A-000
SUB: 08319B3108AN000		 NUT 2 Rp4.000
8 64321-45H00-000
SUB: 64321B45H00N000		 BOLT, FRONT 1 Rp4.000
9 64331-45H00-000
SUB: 64331B45H00N000		 BOLT, REAR 1 Rp4.000
10 61410-20G30-000
SUB: 61410B20G30N000		 ADJUSTER, CHAIN 2 Rp34.500
11 08319-3106A-000
SUB: 08319B3106AN000		 NUT 2 Rp6.500
12 61421-16H00-000
SUB: 61421B16H00N000		 GUIDE, CHAIN ADJUSTER 2 Rp29.000
13 DISCONTINUE
SUB: 09160B12118N000		 WASHER (12X27X2) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
