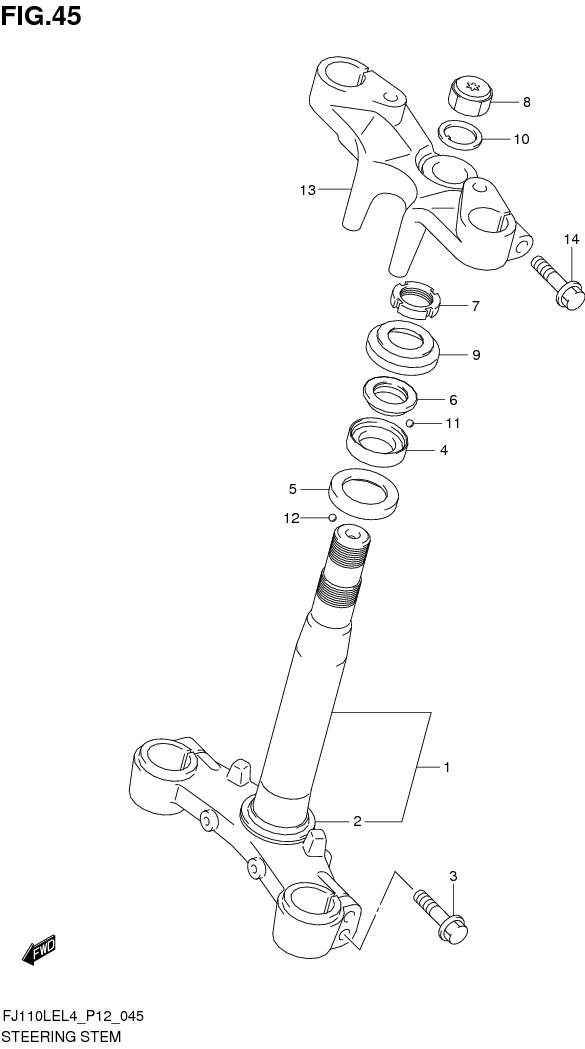

FIG. 45 STEERING STEM

FIG. 45 STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1 51410-32J00-000 BRACKET, UNDER 1 Rp1.286.500
2 51622-41H00-000 .RACE 1 Rp56.500
3 51451-32J00-000 BOLT 4 Rp14.500
4 51611-41H01-000 RACE, STEERING INNER UPPER 1 Rp20.500
5 51612-41H01-000 RACE, STEERING INNER LOWER 1 Rp20.500
6 51621-41H00-000 RACE, STEERING OUTER UPPER 1 Rp31.000
7 51631-05000-000 NUT, STEERING STEM 1 Rp20.000
8 51353-32J00-000 NUT, STEM 1 Rp73.000
9 51643-32J00-000
SUB: 51643B32J00N000		 SEAL, STEERING DUST UPPER 1 Rp6.500
10 51356-32J00-000 WASHER 1 Rp8.500
11 06111-06004-000
SUB: 06111-06004L000		 BALL UPPER 23 Rp1.000 UPPER
12 06111-06004-000
SUB: 06111-06004L000		 BALL LOWER 28 Rp1.000 LOWER
13 51311-32J00-000 BRACKET, UPPER 1 Rp500.000
14 51451-32J00-000 BOLT 2 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
