Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 30 FRAMEFIG. 31 STANDFIG. 32 FOOTRESTFIG. 33 FUEL TANKFIG. 34 FRAME COVERFIG. 35 FRONT LEG SHIELDFIG. 36 FRONT FENDERFIG. 37 HANDLEBARFIG. 38 HEADLAMP HOUSINGFIG. 39 HANDLE LEVERFIG. 40 REAR FENDERFIG. 41 LUGGAGE BOXFIG. 42 LABELFIG. 43 SEATFIG. 44 FRONT FORK DAMPERFIG. 45 STEERING STEMFIG. 46 FRONT WHEELFIG. 47 FRONT CALIPERFIG. 48 FRONT MASTER CYLINDERFIG. 49 REAR SWINGINGARMFIG. 50 CHAIN CASEFIG. 51 REAR WHEEL

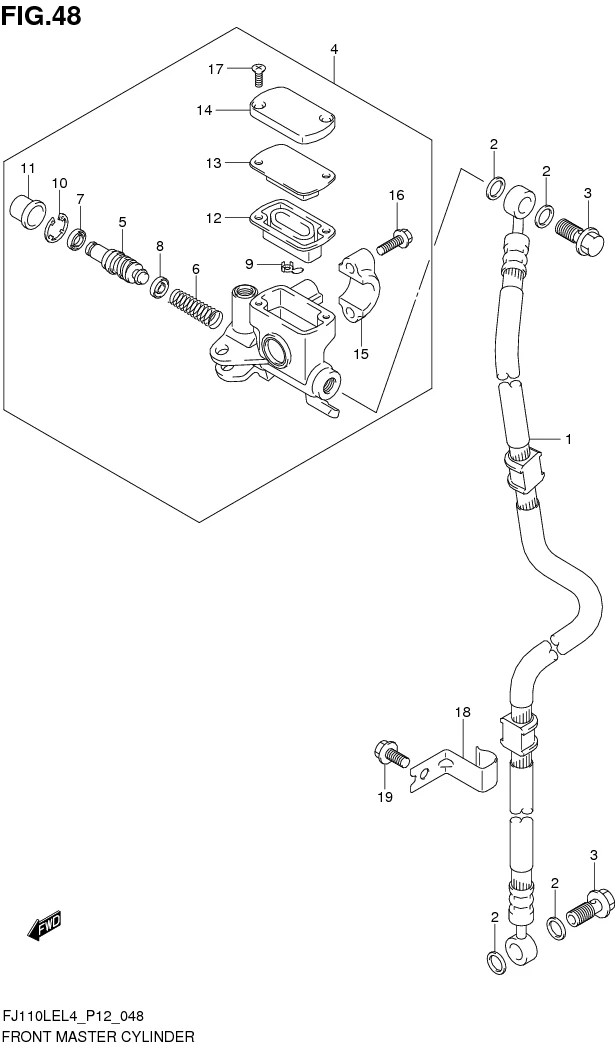

FIG. 48 FRONT MASTER CYLINDER

FIG. 48 FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59480-32J00-000 HOSE, FRONT BRAKE 1 Rp119.000
2 09168-10033-000
SUB: 09168B10033N000		 WASHER (10.2X15X1.4) 4 Rp8.500
3 59492-22J00-000
SUB: 59492B22J00N000		 BOLT, BRAKE FLUID 2 Rp19.500
4 59600-22J30-000 CYLINDER ASSY, FRONT MASTER 1 Rp310.000
5 59611-36500-000
SUB: 59611B36500N000		 .PISTON 1 Rp75.500
6 59621-36500-000
SUB: 59621B36500N000		 .SPRING 1 Rp5.500
7 59662-21D00-000
SUB: 59662B21D00N000		 .CUP, SECONDARY 1 Rp34.500
8 59663-21D00-000
SUB: 59663B21D00N000		 .CUP, PRIMARY 1 Rp42.000
9 59664-32F00-000
SUB: 59664B32F00N000		 .PROTECTOR 1 Rp20.500
10 59665-36500-000
SUB: 59665B36500N000		 .CIRCLIP 1 Rp5.500
11 59666-44300-000
SUB: 59666B44300N000		 .BOOT 1 Rp16.000
12 69667-01H00-000
SUB: 69667B01H00N000		 .DIAPHRAGM 1 Rp20.000
13 69668-01H00-000
SUB: 69668B01H00N000		 .PLATE, DIAPHRAGM 1 Rp4.500
14 DISCONTINUE
SUB: 59669-22J10-000		 .CAP 1 -
15 59671-36500-000
SUB: 59671B36500N000		 .HOLDER 1 Rp23.000
16 59675-02FA0-000
SUB: 59675B02FA0N000		 .BOLT 2 Rp9.000
17 69689-49300-000
SUB: 69689B49300N000		 .SCREW 2 Rp3.000
18 DISCONTINUE
SUB: 59267-32J00-000		 CLAMP, FR BRAKE HOSE LOWER 1 -
19 01550-0612A-000 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
