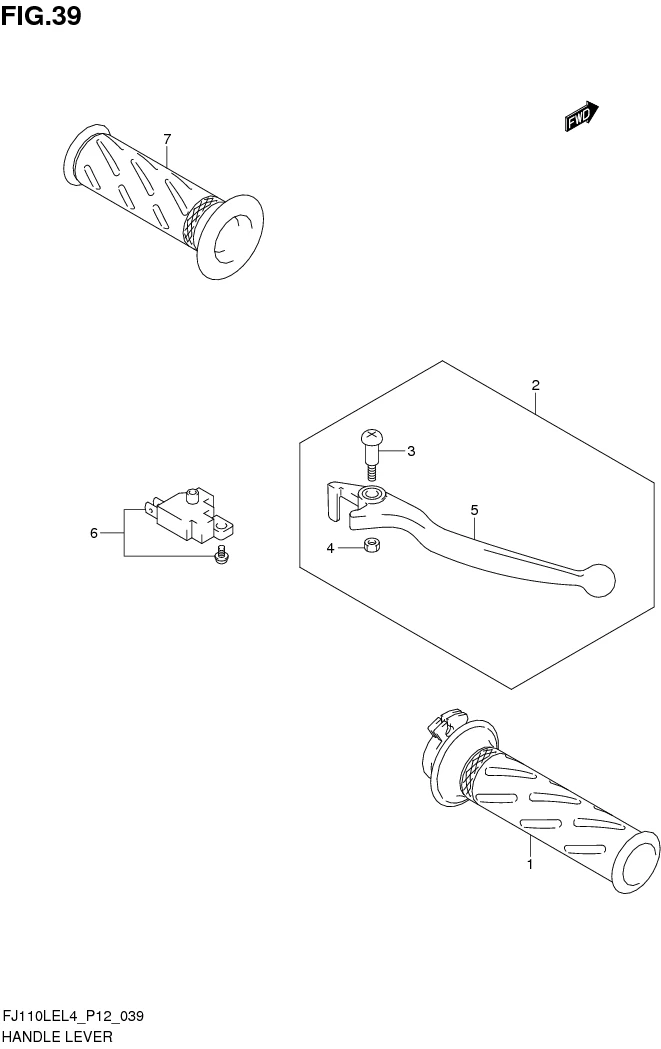

FIG. 39 HANDLE LEVER

FIG. 39 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-09GD0-000
SUB: 57110B09GD0N000		 GRIP, THROTTLE 1 Rp24.000
2 57300-41HC0-000
SUB: 57300B41HC0N000		 LEVER ASSY, BRAKE 1 Rp55.000
3 09139-06114-000 .SCREW (6X28) 1 Rp15.000
4 57433-09F00-000
SUB: 57433B09F00N000		 .NUT 1 Rp3.500
5 57421-41HC0-000
SUB: 57421B41HC0N000		 .LEVER, BRAKE 1 Rp47.000
6 57460-41H00-000
SUB: 57460B41H00N000		 SWITCH ASSY, STOP 1 Rp69.500
7 57211-22D01-000
SUB: 57211B22D01N291		 GRIP LH (BLACK) 1 Rp38.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
