Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 30 FRAMEFIG. 31 STANDFIG. 32 FOOTRESTFIG. 33 FUEL TANKFIG. 34 FRAME COVERFIG. 35 FRONT LEG SHIELDFIG. 36 FRONT FENDERFIG. 37 HANDLEBARFIG. 38 HEADLAMP HOUSINGFIG. 39 HANDLE LEVERFIG. 40 REAR FENDERFIG. 41 LUGGAGE BOXFIG. 42 LABELFIG. 43 SEATFIG. 44 FRONT FORK DAMPERFIG. 45 STEERING STEMFIG. 46 FRONT WHEELFIG. 47 FRONT CALIPERFIG. 48 FRONT MASTER CYLINDERFIG. 49 REAR SWINGINGARMFIG. 50 CHAIN CASEFIG. 51 REAR WHEEL

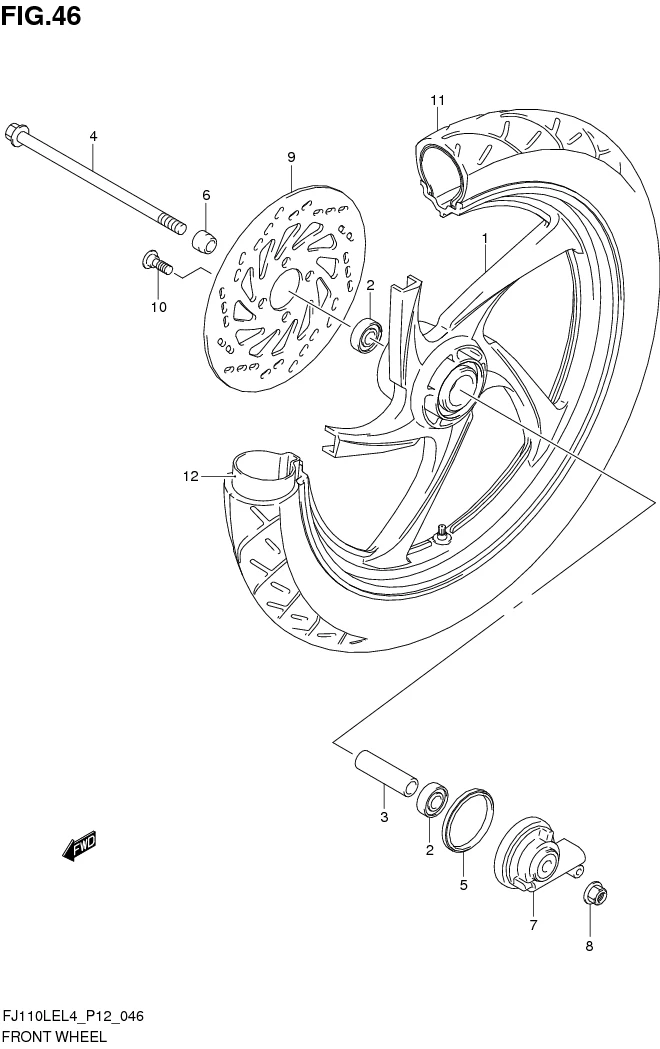

FIG. 46 FRONT WHEEL

FIG. 46 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54111-45H00-291
SUB: 54111B45H00N291		 WHEEL, FRONT (17X1.40) (BLACK) 1 Rp1.076.500
2 08123-63007-000 BEARING 2 Rp32.500
3 54731-41H00-000
SUB: 54731B41H00N000		 SPACER 1 Rp16.500
4 54711-13H00-000 AXLE, FRONT 1 Rp13.000
5 54742-41H00-000
SUB: 54742B41H00N000		 SEAL, FRONT HUB 1 Rp9.500
6 54750-46100-000 SPACER, FRONT AXLE RH 1 Rp12.500
7 54600-45H10-000
SUB: 54600B45H10N000		 BOX ASSY, SPEEDOMETER GEAR 1 Rp165.500
8 08319-3110A-000 NUT 1 Rp4.500
9 59211-09G60-000
SUB: 59211B09G60N000		 DISC, FRONT BRAKE 1 Rp188.000
10 59218-09G10-000 BOLT, FRONT BRAKE DISC 4 Rp7.000
11 55110-38D20-000
SUB: 55110B38D20N000		 TIRE, FRONT (70/90-17M/C 38P) 1 Rp205.000
12 DISCONTINUE
SUB: 55200B38D20N000		 TUBE ASSY, WHEEL INNER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
