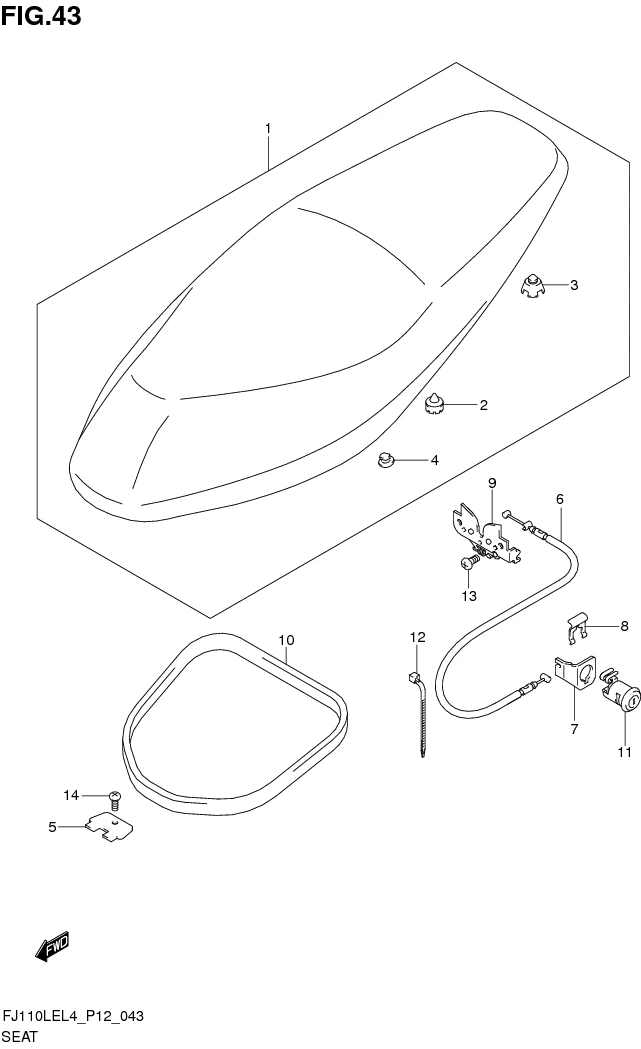

FIG. 43 SEAT

FIG. 43 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-22J30-W3A
SUB: 45100B22J30NW3A		 SEAT ASSY (BLACK) 1 Rp282.000
2 45148-20G70-000
SUB: 45148B20G70N000		 .CUSHION, SEAT MOUNT CENTER 2 Rp10.500
3 45148-13H50-000
SUB: 45148B13H50N000		 .CUSHION, SEAT MOUNT REAR 2 Rp15.500
4 45148-27J00-000 .CUSHION, SEAT MOUNT 3 Rp9.500
5 45271-18J00-000
SUB: 45271B18J00N000		 PLATE, SEAT HINGE 1 Rp4.500
6 45280-45H40-000
SUB: 45280B45H40N000		 CABLE, SEAT LOCK 1 Rp18.000
7 45288-20G00-000
SUB: 45288B20G00N000		 GUIDE, SEAT LOCK CABLE 1 Rp4.500
8 45289-11F00-000
SUB: 45289B11F00N000		 PLATE, SEAT LOCK ASSY 1 Rp4.000
9 45700-47G00-000
SUB: 45700B47G00N000		 BRACKET, STRIKER SUPPORT 1 Rp31.500
10 45211-22J00-000
SUB: 45211B22J00N000		 MOLDING, SEAT 1 Rp46.000
11 95700-14F50-000
SUB: 95700B14F50N000		 LOCK ASSY, SEAT 1 Rp77.000
12 36990-25G20-000 CLAMP, SEAT LOCK CABLE 2 Rp9.500
13 01547-0610A-000 SCREW 2 Rp3.000
14 03541-0516A-000 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
