Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 30 FRAMEFIG. 31 STANDFIG. 32 FOOTRESTFIG. 33 FUEL TANKFIG. 34 FRAME COVERFIG. 35 FRONT LEG SHIELDFIG. 36 FRONT FENDERFIG. 37 HANDLEBARFIG. 38 HEADLAMP HOUSINGFIG. 39 HANDLE LEVERFIG. 40 REAR FENDERFIG. 41 LUGGAGE BOXFIG. 42 LABELFIG. 43 SEATFIG. 44 FRONT FORK DAMPERFIG. 45 STEERING STEMFIG. 46 FRONT WHEELFIG. 47 FRONT CALIPERFIG. 48 FRONT MASTER CYLINDERFIG. 49 REAR SWINGINGARMFIG. 50 CHAIN CASEFIG. 51 REAR WHEEL

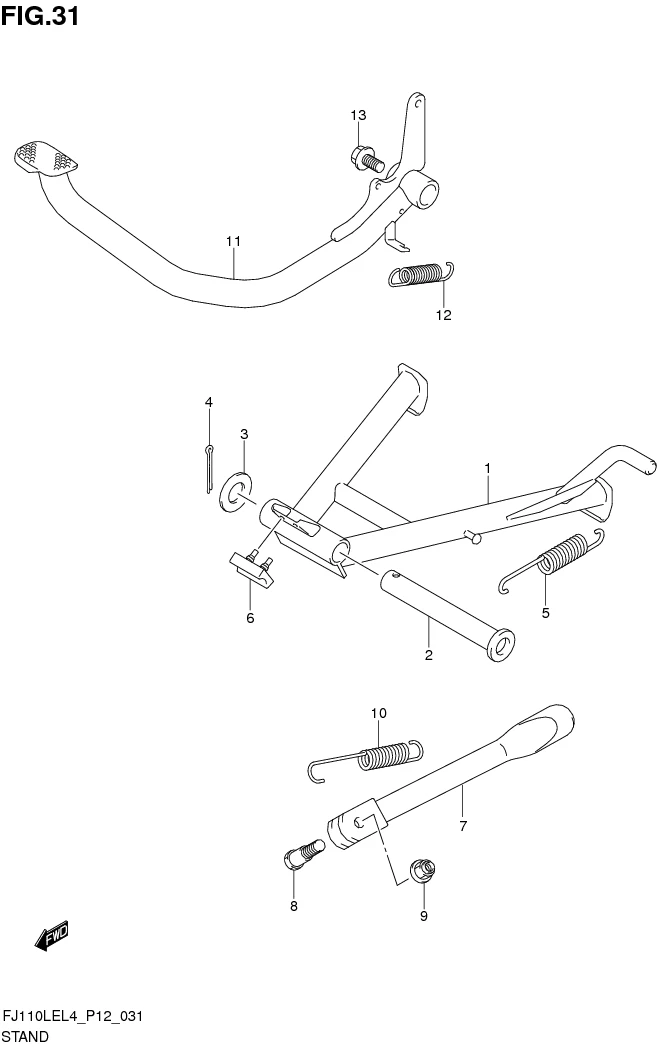

FIG. 31 STAND

FIG. 31 STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-22J00-000
SUB: 42100B22J00N000		 STAND, CENTER 1 Rp124.000
2 42211-25G00-000
SUB: 42211B20G00N000		 SHAFT, CENTER STAND 1 Rp23.500
3 08322-0116A-000
SUB: 08322B0116AN000		 WASHER 1 Rp6.500
4 04111-3025A-000
SUB: 04111B3025AN000		 COTTER PIN 1 Rp3.500
5 42241-45H00-000
SUB: 42241B45H00N000		 SPRING, CENTER STAND 1 Rp13.000
6 42272-09G00-000
SUB: 42272B09G00N000		 CUSHION, CENTER STAND 1 Rp4.500
7 42310-09G60-000
SUB: 42310B09G60N000		 STAND, PROP 1 Rp47.000
8 42341-09G01-000
SUB: 42341B09G01N000		 BOLT 1 Rp5.000
9 08319-3110A-000 NUT 1 Rp4.500
10 09443-14077-000 SPRING 1 Rp6.000
11 43110-22J00-000
SUB: 43110B22J00N000		 PEDAL, BRAKE 1 Rp99.000
12 09443-12033-000
SUB: 09443B12033N000		 SPRING 1 Rp4.000
13 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
