Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 30 FRAMEFIG. 31 STANDFIG. 32 FOOTRESTFIG. 33 FUEL TANKFIG. 34 FRAME COVERFIG. 35 FRONT LEG SHIELDFIG. 36 FRONT FENDERFIG. 37 HANDLEBARFIG. 38 HEADLAMP HOUSINGFIG. 39 HANDLE LEVERFIG. 40 REAR FENDERFIG. 41 LUGGAGE BOXFIG. 42 LABELFIG. 43 SEATFIG. 44 FRONT FORK DAMPERFIG. 45 STEERING STEMFIG. 46 FRONT WHEELFIG. 47 FRONT CALIPERFIG. 48 FRONT MASTER CYLINDERFIG. 49 REAR SWINGINGARMFIG. 50 CHAIN CASEFIG. 51 REAR WHEEL

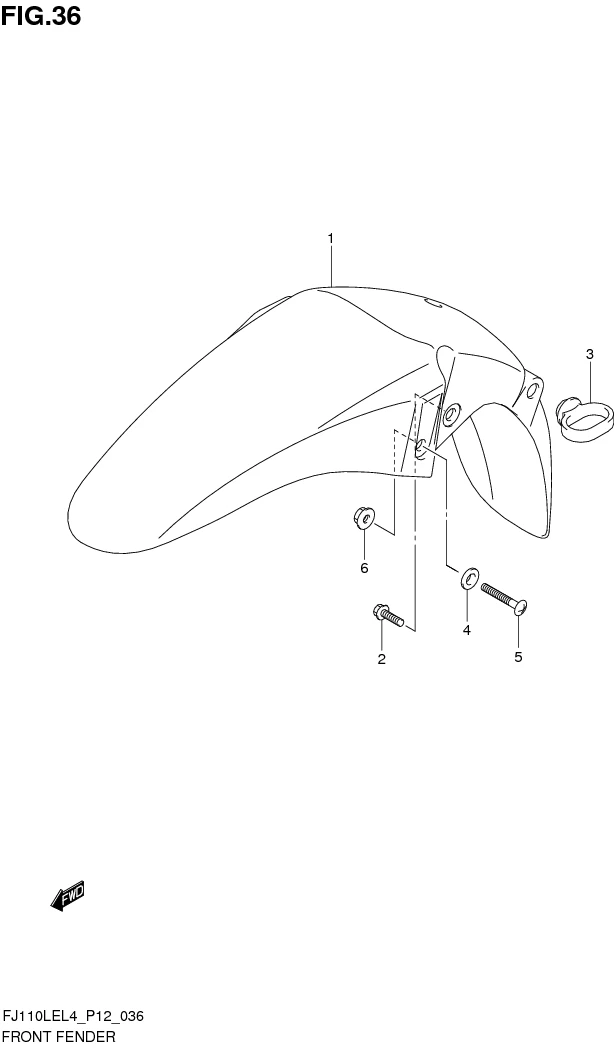

FIG. 36 FRONT FENDER

FIG. 36 FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 53111-32J00-YVU FENDER, FRONT (BLACK)FOR YVU,AFJ 1 Rp228.500 FOR YVU,AFJ
2 01547-0616A-000 BOLT 2 Rp6.500
3 58621-47E00-000
SUB: 58621B47E00N000		 GUIDE, FRONT BRAKE CABLE 1 Rp4.000
4 09169-06053-000
SUB: 09169B06053N000		 WASHER 4 Rp7.500
5 02142-0635A-000
SUB: 02142B0635AN000		 BOLT 2 Rp6.500
6 08316-1006A-000 NUT 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
