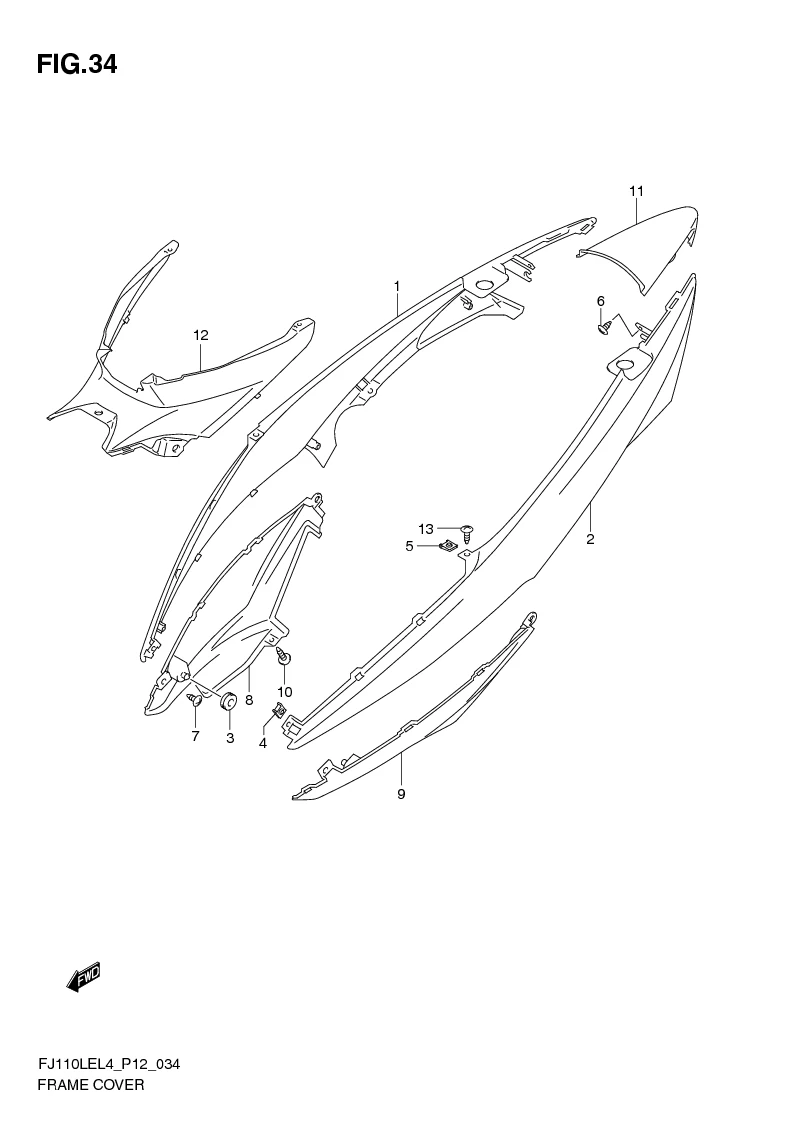

FIG. 34 FRAME COVER

FIG. 34 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-1 47111-22J00-PV5 COVER, FRAME RH (RED)FOR AFJ 1 Rp182.500 FOR AFJ
1-2 47111-22J00-YVU
SUB: 47111B22J00NYVU		 COVER, FRAME RH (BLACK)FOR YVU 1 Rp182.500 FOR YVU
2-1 47211-22J00-PV5 COVER, FRAME LH (RED)FOR AFJ 1 Rp182.500 FOR AFJ
2-2 47211-22J00-YVU
SUB: 47211B22J00NYVU		 COVER, FRAME LH (BLACK)FOR YVU 1 Rp182.500 FOR YVU
3 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 2 Rp15.000
4 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
5 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
6 03541-0412B-000
SUB: 03541B0412BN000		 SCREW 2 Rp4.000
7 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 4 Rp4.000
8 47511-22J10-291
SUB: 47511B22J00N291		 COVER, FRAME UNDER RH (BLACK) 1 Rp40.000
9 47611-22J10-291
SUB: 47611B22J00N291		 COVER, FRAME UNDER LH (BLACK) 1 Rp40.000
10 03541-0516A-000 SCREW 4 Rp3.500
11 47711-22J10-291
SUB: 47711B22J00N291		 COVER, FRAME REAR (BLACK) 1 Rp38.500
12 DISCONTINUE
SUB: 47411-32J00-291		 COVER, FRAME FRONT (BLACK) 1 -
13 03541-0516A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
