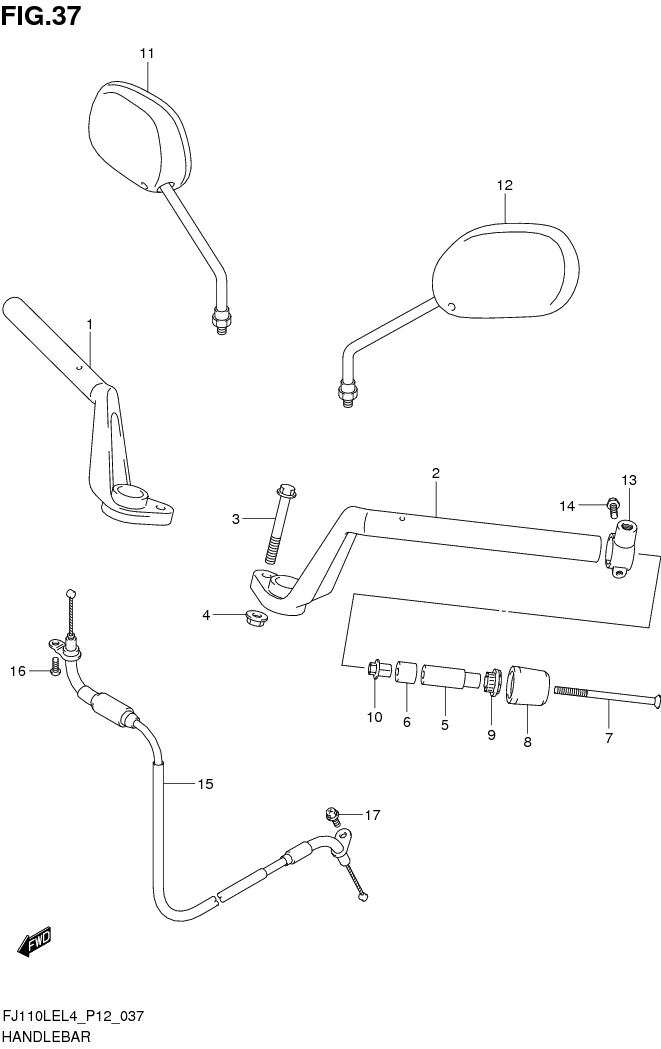

FIG. 37 HANDLEBAR

FIG. 37 HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1 56110-32J00-000 HANDLEBAR RH 1 Rp150.000
2 56150-32J00-000 HANDLEBAR LH 1 Rp150.000
3 01550-0865B-000
SUB: 01550B0865BN000		 BOLT 2 Rp8.500
4 08319-3108B-000
SUB: 08319B3108BN000		 NUT 2 Rp4.500
5 56276-22J00-000
SUB: 56276B22J00N000		 BALANCER, HANDLEBAR INNER 2 Rp10.500
6 56272-10G01-000
SUB: 56272B10G00N000		 EXPANDER, HANDLE BALANCER 2 Rp5.000
7 56277-32J00-000
SUB: 56277B32J00N000		 SCREW, HANDLE BALANCER 2 Rp6.000
8 56278-32J00-000
SUB: 56278B32J00N000		 BALANCER, HANDLEBAR 2 Rp28.000
9 56272-22J00-000
SUB: 56272B22J00N000		 EXPANDER, HANDLE BALANCER 2 Rp7.000
10 56273-10G10-000
SUB: 56273B10G10N000		 NUT 2 Rp20.500
11 56500-09GL0-000
SUB: 56500B09GL0N000		 MIRROR ASSY, REAR VIEW RH 1 Rp86.000
12 56600-09GL0-000
SUB: 56600B09GL0N000		 MIRROR ASSY, REAR VIEW LH 1 Rp86.000
13 DISCONTINUE
SUB: 57625-32J00-000		 HOLDER, MIRROR 1 -
14 01547-0620B-000 BOLT 1 Rp6.500
15 58300-32J01-000
SUB: 58300B32J00N000		 CABLE ASSY, THROTTLE 1 Rp63.000
16 02112-0512A-000 SCREW 1 Rp2.500
17 02162-0510A-000
SUB: 02162B0510AN000		 SCREW 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
