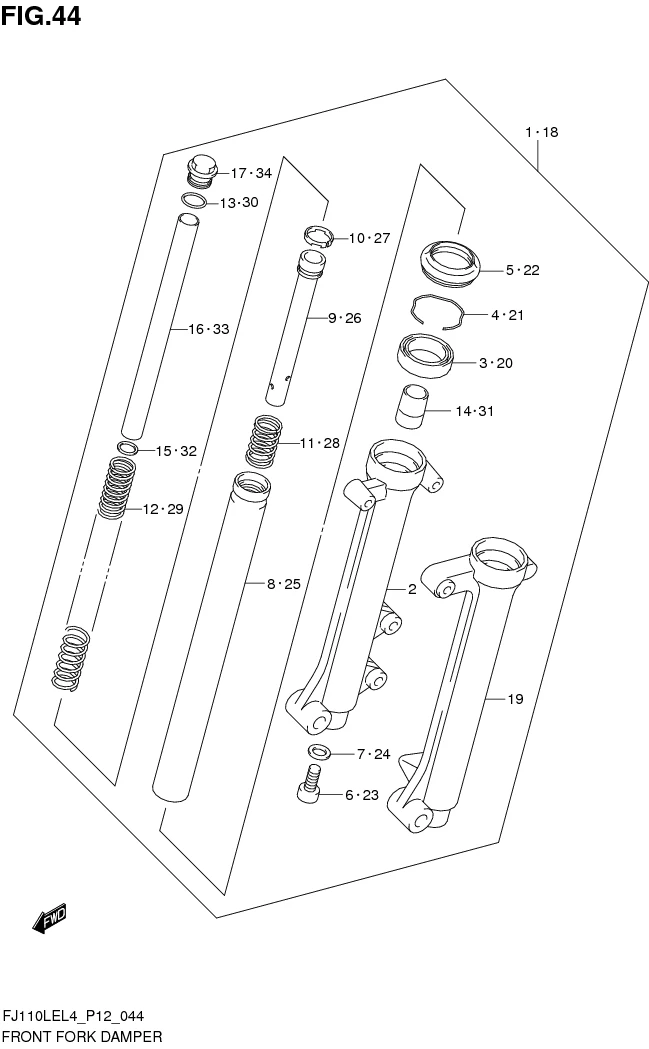

FIG. 44 FRONT FORK DAMPER

FIG. 44 FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103-32J00-291 DAMPER ASSY, FRONT FORK RH 1 Rp1.291.500
2 51131-32J00-291 .TUBE, OUTER RH (BLACK) 1 Rp307.500
3 51153-09GG0-000 .OIL SEAL 1 Rp33.000
4 51156-13H20-000 .RING, SNAP 1 Rp8.500
5 51173-09GG0-000 .SEAL, DUST 1 Rp28.000
6 51147-13H50-000 .BOLT 1 Rp58.000
7 51148-09GG0-000 .GASKET 1 Rp8.500
8 51110-32J00-000 .TUBE, INNER 1 Rp497.500
9 51146-32J00-000 .CYLINDER 1 Rp56.000
10 51196-09GG0-000 .RING, PISTON 1 Rp8.500
11 51177-22J20-000 .SPRING, REBOUND 1 Rp8.500
12 51171-22J20-000 .SPRING, FRONT 1 Rp39.000
13 51117-09GG0-000 .O RING 1 Rp8.500
14 51195-13H20-000 .PIECE, OIL LOCK 1 Rp16.500
15 51172-32J00-000 .WASHER 1 Rp8.500
16 51176-32J00-000 .SPACER 1 Rp15.000
17 51351-32J00-000 .BOLT 1 Rp73.000
18 51104-32J00-291 DAMPER ASSY, FRONT FORK LH 1 Rp1.291.500
19 51141-32J00-291 .TUBE, OUTER LH (BLACK) 1 Rp307.500
20 51153-09GG0-000 .OIL SEAL 1 Rp33.000
21 51156-13H20-000 .RING, SNAP 1 Rp8.500
22 51173-09GG0-000 .SEAL, DUST 1 Rp28.000
23 51147-13H50-000 .BOLT 1 Rp58.000
24 51148-09GG0-000 .GASKET 1 Rp8.500
25 51110-32J00-000 .TUBE, INNER 1 Rp497.500
26 51146-32J00-000 .CYLINDER 1 Rp56.000
27 51196-09GG0-000 .RING, PISTON 1 Rp8.500
28 51177-22J20-000 .SPRING, REBOUND 1 Rp8.500
29 51171-22J20-000 .SPRING, FRONT 1 Rp39.000
30 51117-09GG0-000 .O RING 1 Rp8.500
31 51195-13H20-000 .PIECE, OIL LOCK 1 Rp16.500
32 51172-32J00-000 .WASHER 1 Rp8.500
33 51176-32J00-000 .SPACER 1 Rp15.000
34 51351-32J00-000 .BOLT 1 Rp73.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
