Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 30 FRAMEFIG. 31 STANDFIG. 32 FOOTRESTFIG. 33 FUEL TANKFIG. 34 FRAME COVERFIG. 35 FRONT LEG SHIELDFIG. 36 FRONT FENDERFIG. 37 HANDLEBARFIG. 38 HEADLAMP HOUSINGFIG. 39 HANDLE LEVERFIG. 40 REAR FENDERFIG. 41 LUGGAGE BOXFIG. 42 LABELFIG. 43 SEATFIG. 44 FRONT FORK DAMPERFIG. 45 STEERING STEMFIG. 46 FRONT WHEELFIG. 47 FRONT CALIPERFIG. 48 FRONT MASTER CYLINDERFIG. 49 REAR SWINGINGARMFIG. 50 CHAIN CASEFIG. 51 REAR WHEEL

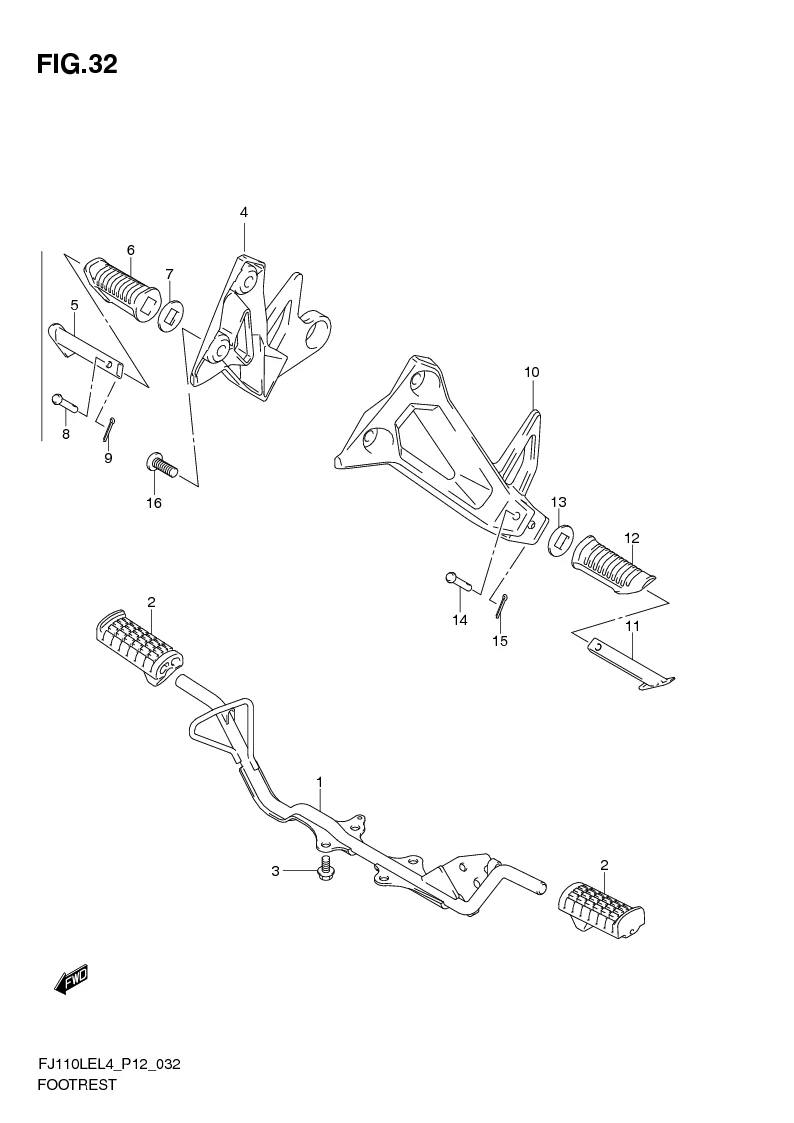

FIG. 32 FOOTREST

FIG. 32 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43510-22J00-000
SUB: 43510B22J00N000		 BAR, FRONT FOOTREST 1 Rp133.500
2 43551-22J00-000
SUB: 43551B22J00N000		 RUBBER, FRONT FOOTREST 2 Rp13.500
3 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 4 Rp6.000
4 43811-22J10-13L
SUB: 43811B22J10N13L		 BRACKET PILLION FOOTREST RH (SILVER) 1 Rp85.000
5 43610-34A00-000 BAR, PILLION FOOTREST RH 1 Rp15.000
6 43612-22J00-000 RUBBER, PILLION FOOTREST 1 Rp12.500
7 43631-09G00-000 WASHER, PILLION FOOTREST RUBBER 1 Rp7.500
8 09200-06041-000
SUB: 09200B06041N000		 PIN 1 Rp4.000
9 04111-2515A-000
SUB: 04111B2515AN000		 COTTER PIN 1 Rp8.500
10 43821-22J10-13L
SUB: 43821B22J10N13L		 BRACKET PILLION FOOTREST LH (SILVER) 1 Rp85.000
11 43710-34A00-000 BAR, PILLION FOOTREST LH 1 Rp15.000
12 43612-22J00-000 RUBBER, PILLION FOOTREST 1 Rp12.500
13 43631-09G00-000 WASHER, PILLION FOOTREST RUBBER 1 Rp7.500
14 09200-06041-000
SUB: 09200B06041N000		 PIN 1 Rp4.000
15 04111-2515A-000
SUB: 04111B2515AN000		 COTTER PIN 1 Rp8.500
16 09106-08196-000
SUB: 09106B08196N000		 BOLT 4 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
