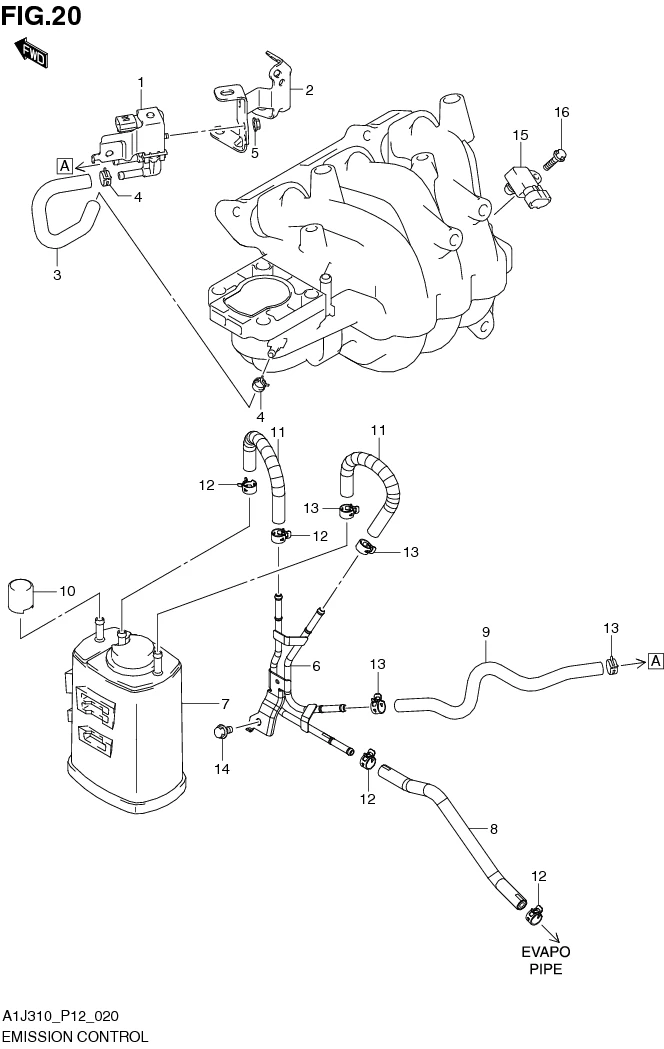

FIG. 20 EMISSION CONTROL

FIG. 20 EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18114-67LA0-000
SUB: 18114B67LA0N000		 VALVE ASSY, DUTY FOR PURGE 1 Rp184.500
2 18117-67LA0-000
SUB: 18117B67LA0N000		 BRACKET, PURGE VSV 1 Rp50.000
3 18564-67LA0-000
SUB: 18564B67LA0N000		 HOSE, PURGE (VSV TO INMF) 1 Rp51.000
4 09401-10409-000
SUB: 09401-11419-000		 CLIP 2 Rp7.500
5 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
6 18340-67L00-000
SUB: 18340B67L00N000		 PIPE, PURGE 1 Rp57.500
7 18560-58M00-000
SUB: 18560B58M00N000		 CANISTER 1 Rp342.000
8 18561-67LA0-000
SUB: 18561B67LA0N000		 HOSE, CANISTER INLET 1 Rp48.000
9 18562-67LA0-000
SUB: 18562B67LA0N000		 HOSE, PURGE (PIPE TO VSV) 1 Rp53.500
10 18571-65H20-000
SUB: 18571M65H20-000		 CAP, CANISTER AIR 1 Rp11.000
11 18888M75J00-170 HOSE, CSTR TO PIPE 2 Rp22.500
12 09401-10409-000
SUB: 09401-11419-000		 CLIP 4 Rp7.500
13 09401-10409-000
SUB: 09401-11419-000		 CLIP 4 Rp7.500
14 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
15 18590-67LA0-000
SUB: 18590B67LA0N000		 SENSOR, MAP 1 Rp244.000
16 01550-0620C-000 BOLT 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
