KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

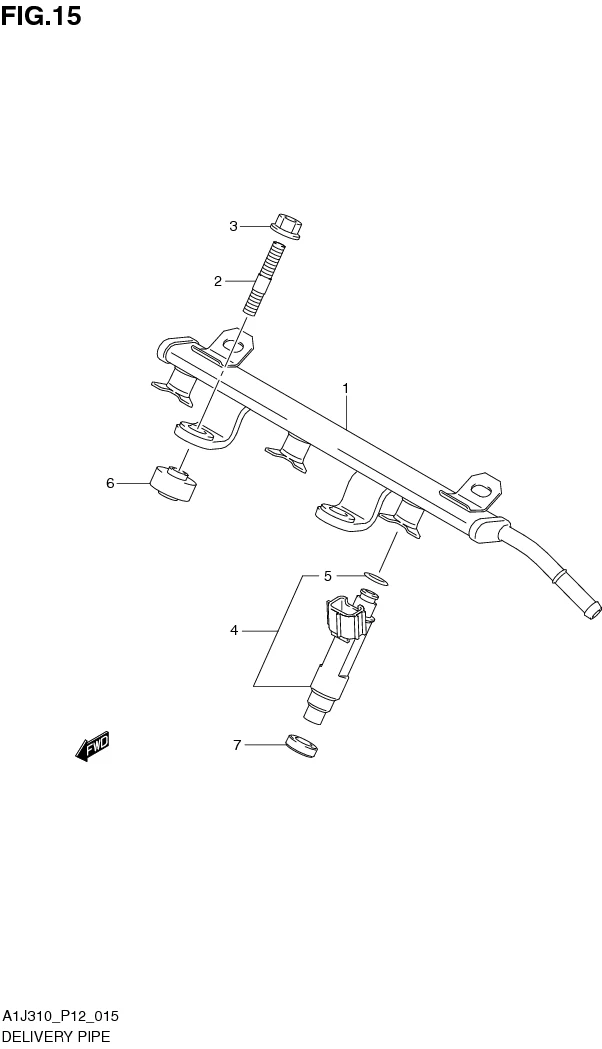

FIG. 15 DELIVERY PIPE

FIG. 15 DELIVERY PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 15730-51K00-000 PIPE, FUEL DELIVERY 1 Rp1.096.000
2 01421-0830A-000 STUD BOLT 2 Rp16.500
3 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
4 15710-77M00-000
SUB: 15710B77M00N000		 INJECTOR ASSY, FUEL 3 Rp304.000
5 15710-09300-000
SUB: 15710B09300N000		 •O RING 3 Rp13.500
6 15735-58B00-000 INSULATOR 2 Rp45.500
7 09320-09022-000
SUB: 09320-08062-000		 CUSHION 3 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
