KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

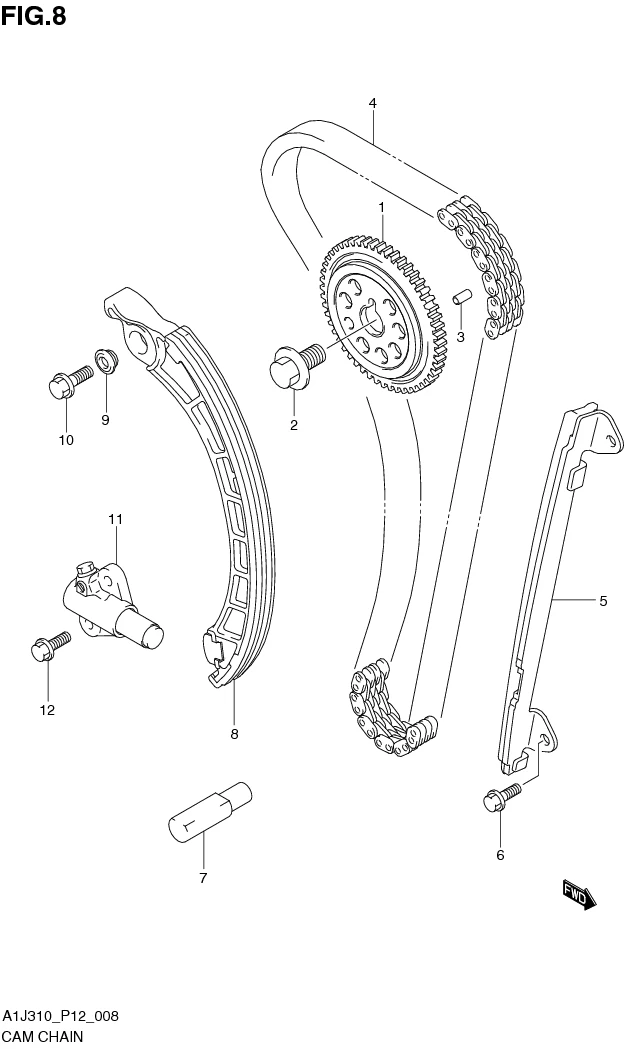

FIG. 8 CAM CHAIN

FIG. 8 CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12742-51K00-000
SUB: 12742M51K00-000		 SPROCKET, CAMSHAFT TIMING EXH 1 Rp119.500
2 12722-67LA0-000
SUB: 12722B67LA0N000		 BOLT, CAMSHAFT SPROCKET 1 Rp9.500
3 09206-05001-000 PIN (3.4X5X10) 1 Rp11.500
4 DISCONTINUE
SUB: 12761-69LA0-000		 CHAIN, TIMING 1 -
5 12771-58M00-000
SUB: 12771B58M00N000		 GUIDE, TIMING CHAIN 1 Rp172.000
6 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 2 Rp3.500
7 12781-69G00-000
SUB: 12781M69G00-000		 JET, TIMING CHAIN 1 Rp24.500
8 12811-58M00-000
SUB: 12811B58M00N000		 TENSIONER, TIMING CHAIN 1 Rp273.000
9 12812M73G10-000 SPACER, TIMING CHAIN TENSIONER 1 Rp13.000
10 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500
11 12831-69J00-000
SUB: 12831B69J00N000		 ADJUSTER ASSY, TENSIONER 1 Rp475.500
12 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
