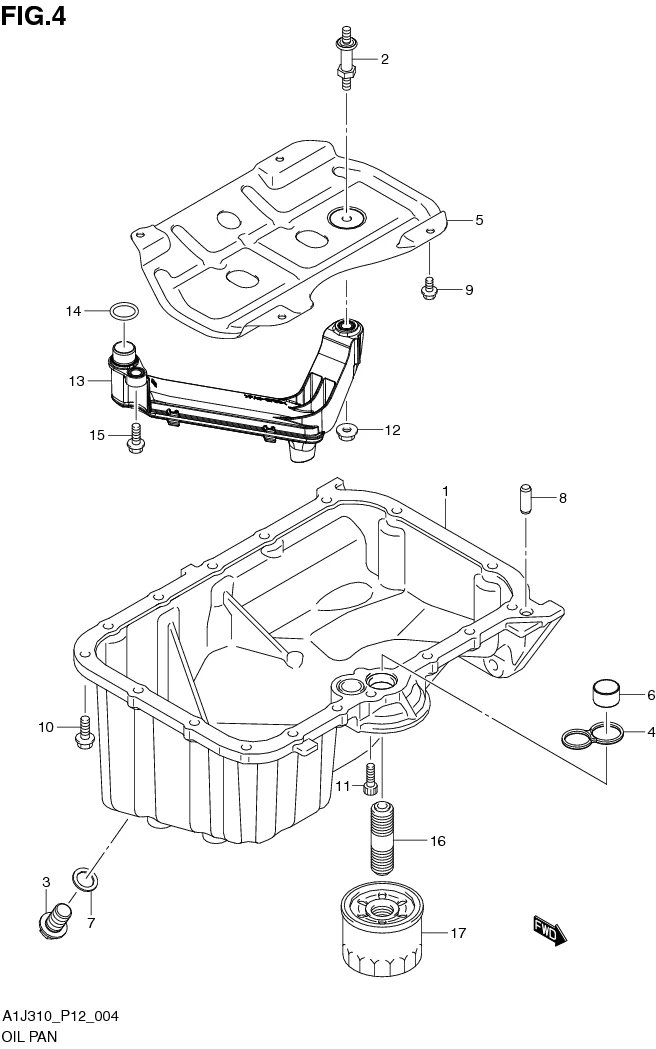

FIG. 4 OIL PAN

FIG. 4 OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11511-65L00-000
SUB: 11511B65L00N000		 PAN, OIL 1 Rp516.500
2 11515-51K03-000 STUD BOLT 1 Rp54.000
3 11518-63J10-000
SUB: 11518B63J10N000		 PLUG, OIL DRAIN 1 Rp9.500
4 11518-67LA0-000
SUB: 11518B67LA0N000		 O RING 1 Rp6.000
5 11541M51K10-000 PLATE, OIL PAN BAFFLE 1 Rp119.500
6 16114M69J00-000
SUB: 16114B69J00N000		 PIN, OIL PAN DOWEL 1 Rp14.500
7 09168-14015-000
SUB: 09168M14015-000		 GASKET (14X20X1.5) 1 Rp7.500
8 09202-08004-000 PIN (8X23) 1 Rp6.500
9 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 4 -
10 DISCONTINUE
SUB: 01550B0625AN000		 BOLT 16 -
11 07130-0625A-000
SUB: 07130B0625AN000		 BOLT 1 Rp3.500
12 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
13 16520-85L00-000 STRAINER, OIL PUMP 1 Rp334.500
14 51181-37B00-000
SUB: 09280B17002N000		 O RING 1 Rp5.000
15 07120-0620A-000 BOLT 1 Rp22.000
16 11241-68K00-000
SUB: 11241B68K00N000		 STAND, OIL FILTER 1 Rp15.000
17 16510-67LA0-000
SUB: 16510B67LA0N000		 FILTER ASSY, OIL 1 Rp35.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
