KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

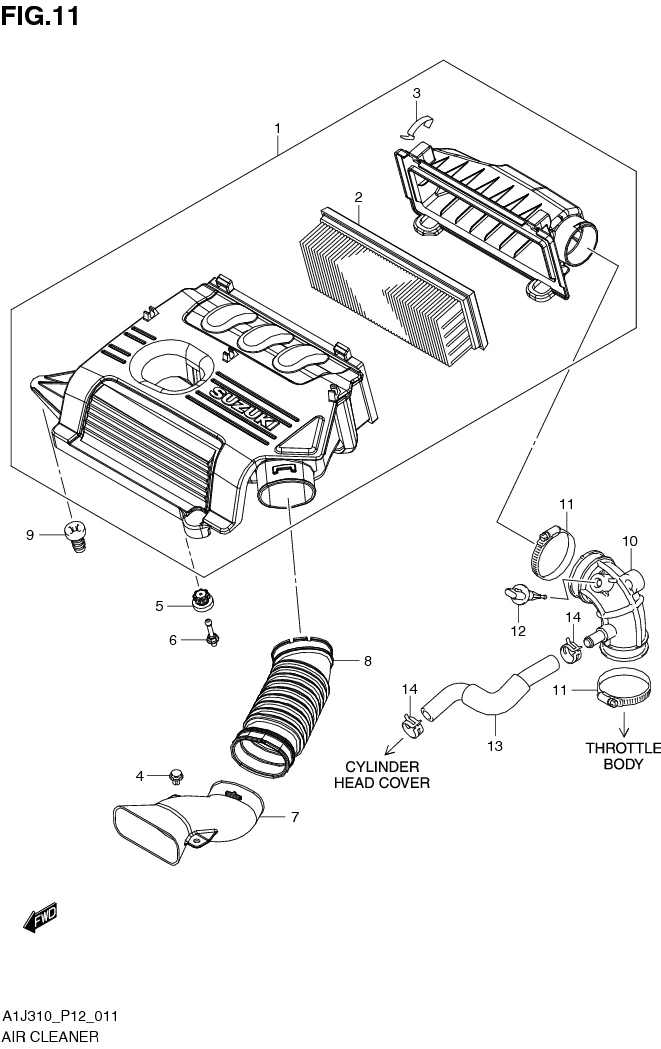

FIG. 11 AIR CLEANER

FIG. 11 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-52P00-000
SUB: 13700B52P00N000		 CLEANER ASSY, AIR 1 Rp362.000
2 13780-76M00-000
SUB: 13780B76M00N000		 •ELEMENT 1 Rp133.500
3 13783-54LA0-000
SUB: 13783B54LA0N000		 •CLIP 2 Rp16.500
4 09409-08327-000 CLIP 2 Rp15.000
5 13175M68K00-000 CUSHION, AIR CLEANER 1 Rp6.500
6 13176-65L00-000 BOLT, AIR CLEANER 1 Rp82.500
7 13765-67LB0-000
SUB: 13765B67L01N000		 PIPE, AIR CLEANER SUCT 1 Rp26.500
8 13766-65L00-000
SUB: 13766M65L00-000		 HOSE, AIR CLEANER SUCT 1 Rp79.000
9 13871-73K00-000 GROMMET, AIR INTK 4 Rp22.500
10 13881-67LA0-000
SUB: 13881B67LA0N000		 HOSE, AIR CLNR OUT 1 Rp97.500
11 09402-70503-000 CLAMP 2 Rp91.500
12 13650-52G00-000 SENSOR, INLET AIR TEMP 1 Rp762.500
13 11191-67LA0-000
SUB: 11191B67LA0N000		 HOSE, BREATHER 1 Rp35.500
14 11199M68K00-000
SUB: 09401M18404-000		 CLIP 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
