KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

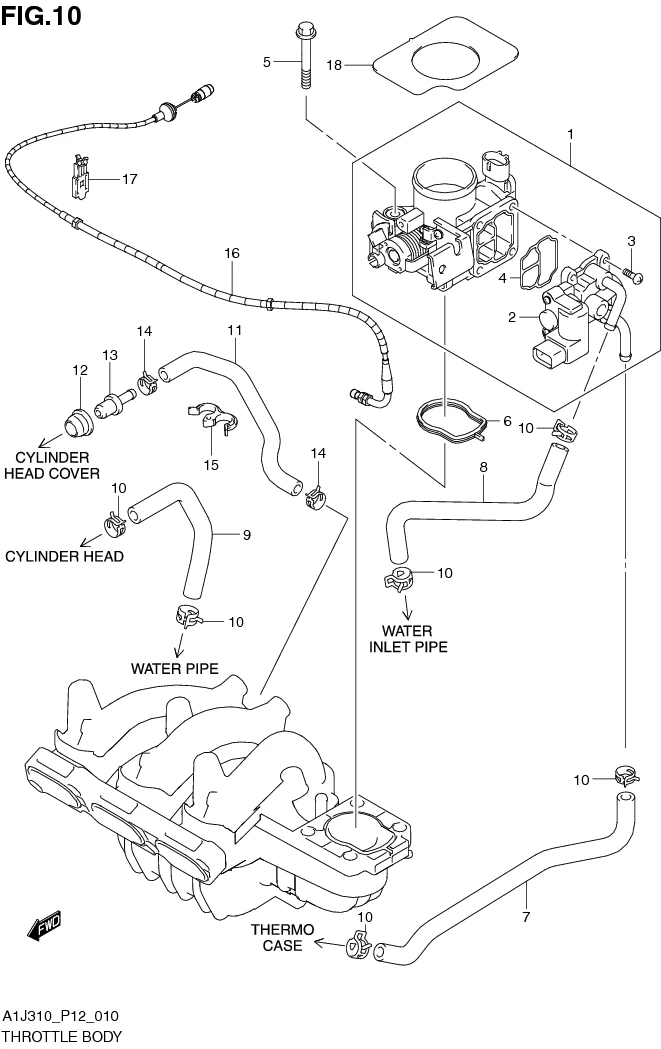

FIG. 10 THROTTLE BODY

FIG. 10 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-52P00-000
SUB: 13400B67LB0N000		 BODY ASSY, THROTTLE 1 Rp1.506.500
2 18117-52P00-000
SUB: 18117B67LB0N000		 •VALVE, ISC 1 Rp870.000
3 13601-05148-XC0 •SCREW 4 Rp22.500
4 14139-70G30-000
SUB: 14139M70G30-000		 •GASKET, ISC VALVE 1 Rp38.500
5 01550-0855A-000 BOLT 4 Rp3.500
6 13421-67LA0-000
SUB: 13421B67LA0N000		 GASKET, THROTTLE BODY 1 Rp52.500
7 13491-67LA0-000
SUB: 13491B67LA0N000		 HOSE, WTR THROT BODY INLET 1 Rp20.500
8 13492-67LA1-000
SUB: 13492B67LA1N000		 HOSE, WTR THROT BODY OUT NO.1 1 Rp16.000
9 17698-67LA0-000
SUB: 17698B67LA0N000		 HOSE, WATER BYPASS 1 Rp20.500
10 09401-12410-000 CLIP 6 Rp15.000
11 11193-67LA0-000
SUB: 11193B67LA0N000		 HOSE, PCV 1 Rp30.000
12 11198M79F00-000
SUB: 11198M58B00-000		 COVER 1 Rp16.500
13 18118-73K00-000 VALVE, PCV 1 Rp179.000
14 09401-13414-000 CLIP 2 Rp18.000
15 09408-00155-000 CLAMP 1 Rp23.000
16 15910-67LA0-000
SUB: 15910B67LA0N000		 CABLE ASSY, ACCEL 1 Rp123.000
17 15911-67LA0-000
SUB: 15911B67LA0N000		 CLAMP 1 Rp6.500
18 13471-67L00-000
SUB: 13471B67L00N000		 COVER,THROTTLE BODY 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
