KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

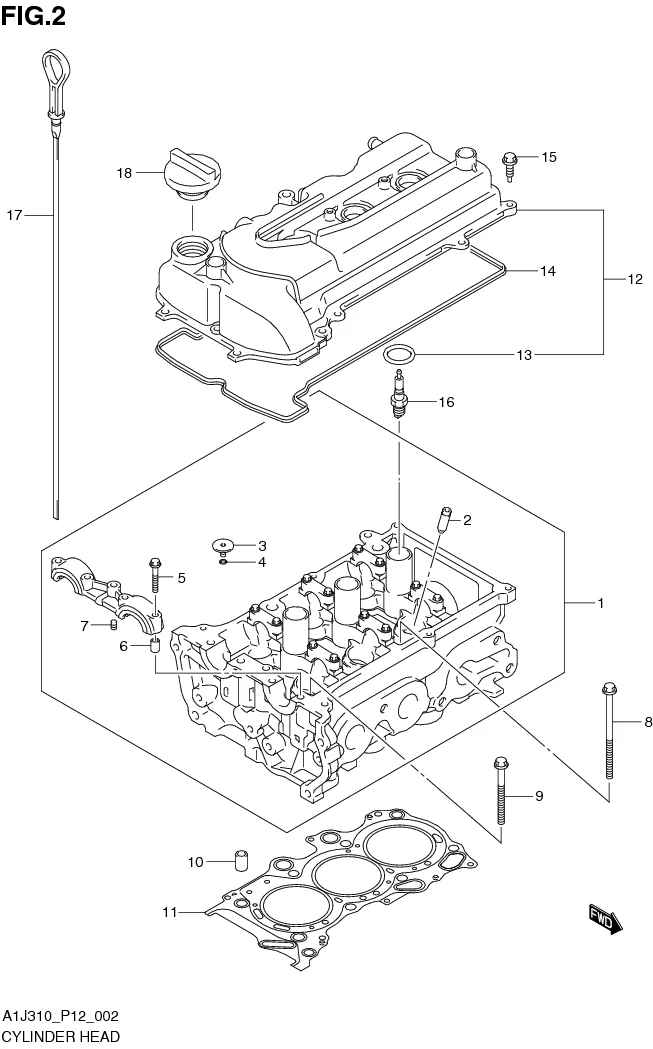

FIG. 2 CYLINDER HEAD

FIG. 2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11100B51K11N000		 HEAD ASSY, CYLINDER 1 -
2 11115-77G00-001 •GUIDE, VALVE 12 Rp275.500
3 09248-18011-000 •PLUG 2 Rp38.000
4 11216-77E00-000 •GASKET, M18 PLUG 3 Rp21.000
5 11128-69G01-000 •BOLT, CAMSHAFT HOUSING 17 Rp24.000
6 09206-08001-000
SUB: 09206B08001N000		 •PIN (6.2X8X11) 14 Rp5.500
7 11112-53A00-000 •PLUG, OIL VENTURI 1 Rp31.500
8 11117-69J00-000 BOLT, CYLINDER HEAD 8 Rp64.500
9 01550-0880A-000 BOLT 1 Rp5.500
10 09206-13020-000 PIN (10.4X13X18) 2 Rp13.500
11 11141-51K01-000 GASKET, CYLINDER HEAD 1 Rp375.000
12 11170-67LA0-000
SUB: 11170B67LA0N000		 COVER, CYLINDER HEAD 1 Rp458.000
13 11179-67LA0-000
SUB: 11179B67LA0N000		 •O RING 3 Rp7.500
14 11189-68K00-000
SUB: 11189B68K00N000		 GASKET, CYLINDER HEAD COVER 1 Rp116.000
15 DISCONTINUE
SUB: 01550B0625AN000		 BOLT 5 -
16 09482-00L10-000
SUB: 09482B00L10N000		 SPARK PLUG (NGK KR6A-10) 3 Rp41.500
17 16910-51K01-000
SUB: 16910-51K00-000		 GAUGE, OIL LEVEL 1 Rp134.500
18 16920-83G02-000
SUB: 16920-83G00-000		 CAP, OIL FILTER 1 Rp149.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
