KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

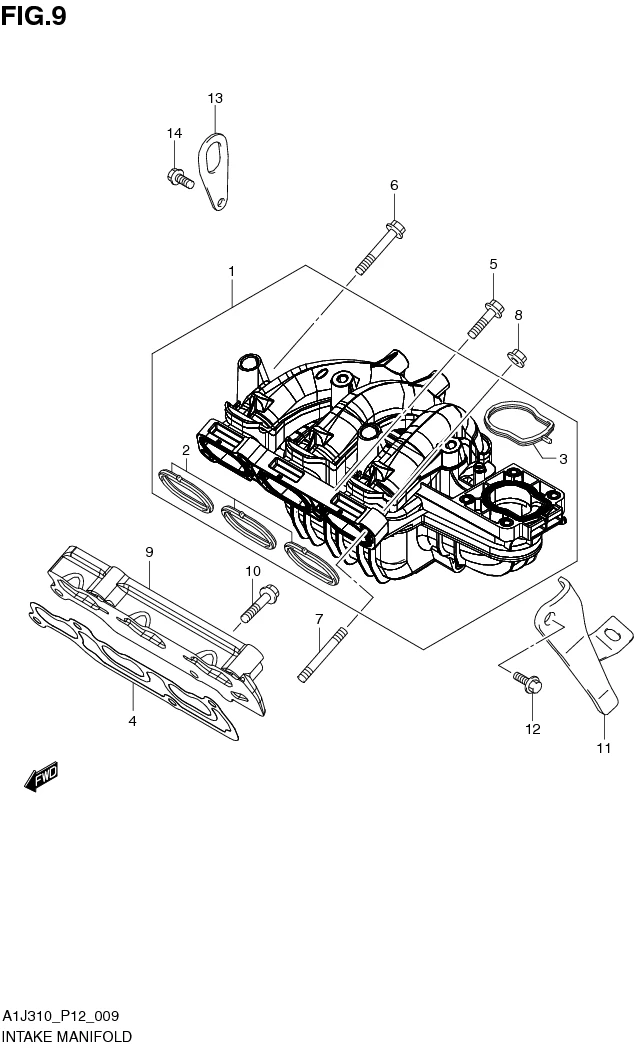

FIG. 9 INTAKE MANIFOLD

FIG. 9 INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110-67LA0-000
SUB: 13110B67LA0N000		 MANIFOLD, INTK 1 Rp1.009.500
2 13118-67LA0-000
SUB: 13118B67LA0N000		 •GASKET, INTAKE MANIFOLD 1 Rp33.500
3 13421-67LA0-000
SUB: 13421B67LA0N000		 •GASKET, THROTTLE BODY 1 Rp52.500
4 13119-67LA0-000
SUB: 13119B67LA0N000		 GASKET, INTK MANF 1 Rp66.500
5 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500
6 01550-0865B-000
SUB: 01550-0865A-000		 BOLT 1 Rp8.500
7 01421-0860A-000 STUD BOLT 2 Rp29.500
8 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
9 13151-51K01-000
SUB: 13151B51K01N000		 PLATE, INTK MANF 1 Rp185.500
10 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500
11 13161-65L00-000
SUB: 13161M65L00-000		 STIFFENER, INTK MANF 1 Rp43.500
12 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 2 Rp5.500
13 11851-60B01-000
SUB: 11851B60B01N000		 HOOK, ENGINE 1 Rp9.500
14 DISCONTINUE
SUB: 01550-0816C-000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
