KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

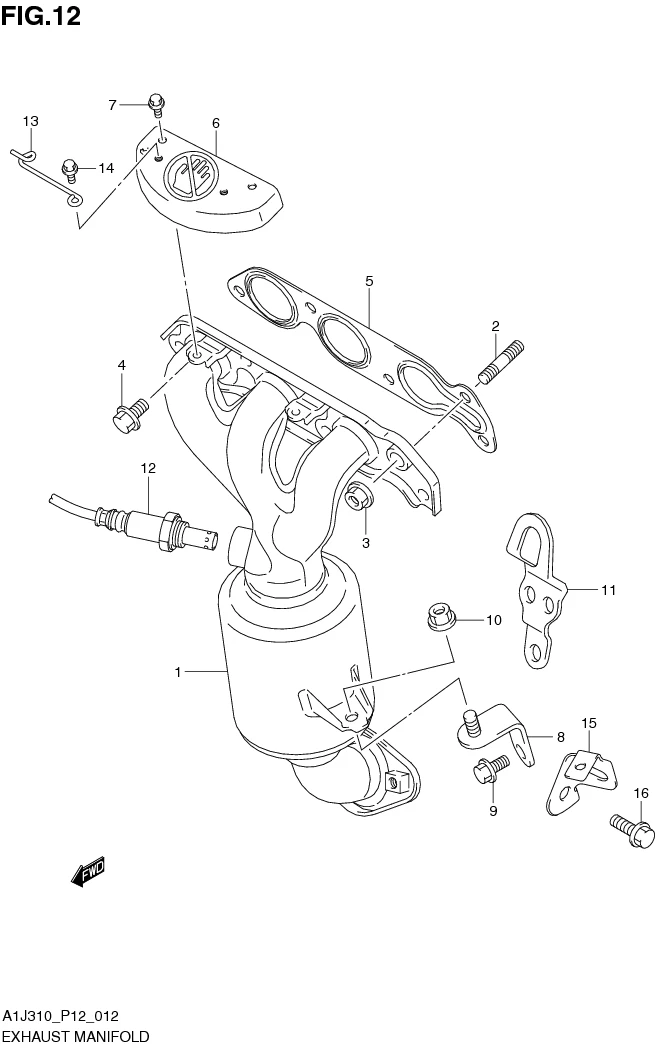

FIG. 12 EXHAUST MANIFOLD

FIG. 12 EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 14110-67LB0-000
SUB: 14110B67LA0N000		 MANIFOLD, EXH 1 Rp7.706.500
2 14118-63J00-000 STUD BOLT 3 Rp21.500
3 08316-1010A-000
SUB: 08316B1010AN000		 NUT 3 Rp3.500
4 01550-1020A-000 BOLT 2 Rp21.000
5 14140-67LA0-000
SUB: 14140B67LA0N000		 GASKET, EXH MANF 1 Rp82.500
6 14121-73KB0-000
SUB: 14121B73KB0N000		 PLATE, CAUTION 1 Rp20.500
7 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 2 Rp21.500
8 14271-68K00-000 STIFFENER, EXH MANF 1 Rp25.000
9 01550-0820A-000
SUB: 09103-08505-000		 BOLT (8X20) 1 Rp5.500
10 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
11 11851-73K00-000
SUB: 11851B73K00N000		 HOOK, ENGINE 1 Rp12.000
12 18213-67LA0-000
SUB: 18213B67LA0N000		 SENSOR, OXYGEN 1 Rp663.500
13 14122-66G00-000
SUB: 14122B66G00N000		 CLAMP 1 Rp14.500
14 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 1 Rp21.500
15 18214-68KA0-000
SUB: 18214B68KA0N000		 BRACKET, OXYGEN SENSOR 1 Rp14.500
16 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
