KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

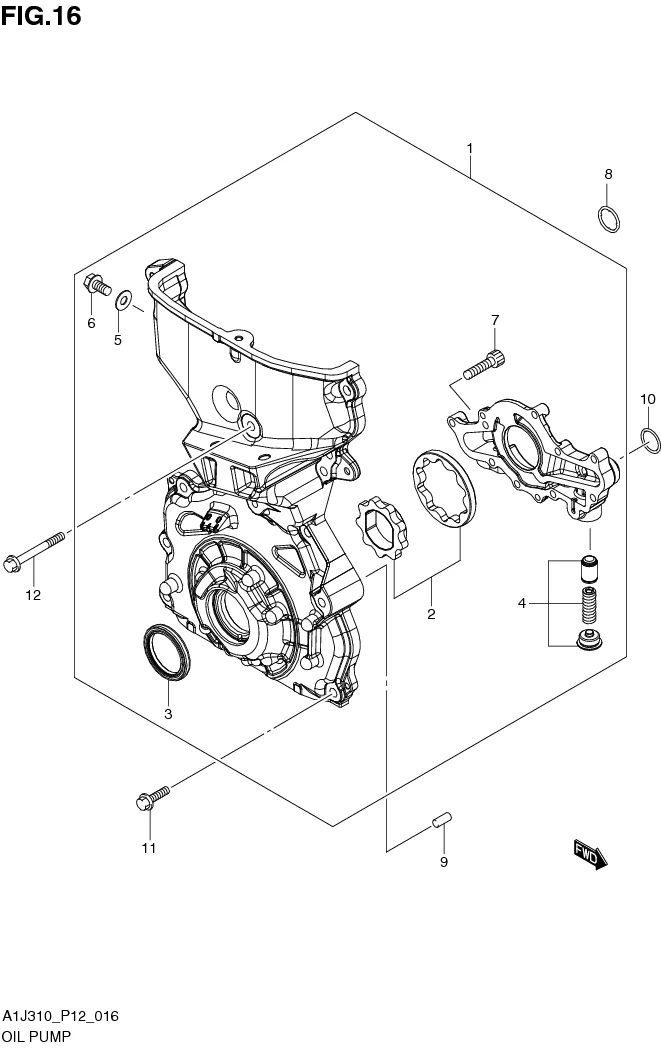

FIG. 16 OIL PUMP

FIG. 16 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16100-67LB0-000
SUB: 16100B67LA0N000		 PUMP ASSY, OIL 1 Rp1.156.000
2 16130-68K00-000
SUB: 16130B68K00N000		 •ROTOR SET, OIL PUMP 1 Rp190.500
3 16141-58M00-000
SUB: 16141B58M00N000		 •SEAL, CRANKSHAFT FRONT OIL 1 Rp97.500
4 16151-51K00-000
SUB: 16150B51K01N000		 •VALVE SET, OIL PUMP RELIEF 1 Rp22.000
5 09168-08016-000
SUB: 09168B08016N000		 •GASKET (8.2X14X1) 1 Rp25.000
6 01550-0816A-000
SUB: 01550B0816AN000		 •BOLT 1 Rp6.000
7 07130-0625A-000
SUB: 07130B0625AN000		 •BOLT 9 Rp3.500
8 16117-67LA0-000
SUB: 16117B67LA0N000		 O RING 1 Rp5.500
9 09206-06005-000
SUB: 09206B06005N000		 PIN (4X6X11) 2 Rp14.500
10 16119-67LA0-000
SUB: 16119B67LA0N000		 O RING, OIL GALLERY 1 Rp5.500
11 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 13 Rp4.000
12 01550-0865B-000
SUB: 01550-0865A-000		 BOLT 1 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
