KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

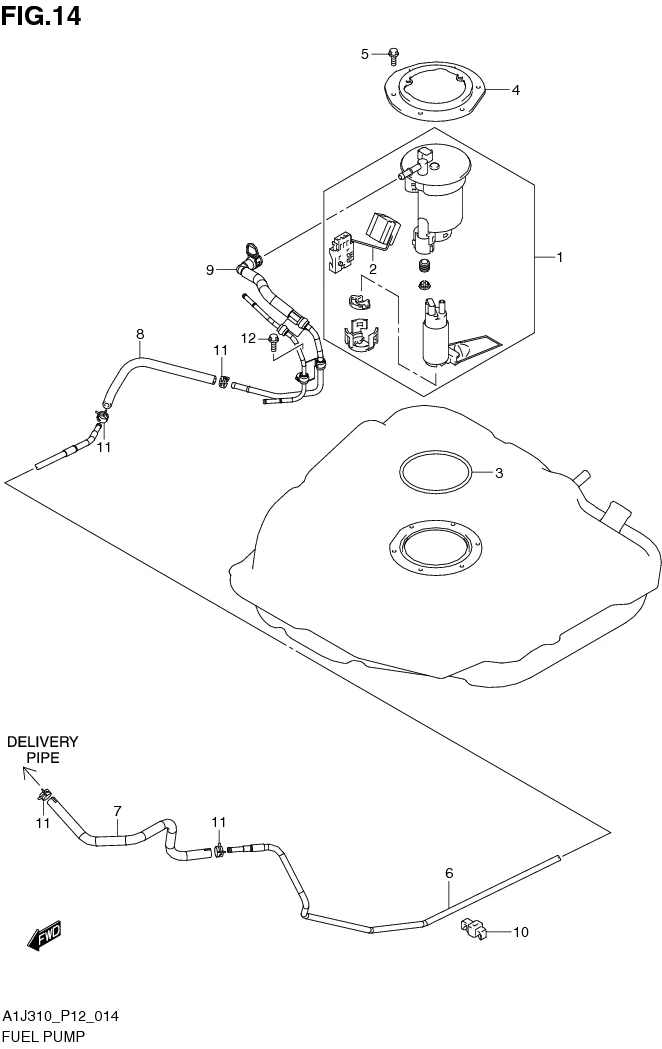

FIG. 14 FUEL PUMP

FIG. 14 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-67LA0-000
SUB: 15100B67LA0N000		 PUMP ASSY, FUEL 1 Rp1.016.000
2 34810-67LA0-000
SUB: 34810B67LA0N000		 •GAUGE, FUEL LEVEL 1 Rp245.500
3 15111-67LA0-000
SUB: 15111B67LA0N000		 GASKET, FUEL PUMP 1 Rp32.000
4 15121-68K20-000
SUB: 15121B68K20N000		 PLATE, FUEL PUMP 1 Rp26.000
5 01550-0610B-000
SUB: 01550B0610AN000		 BOLT 6 Rp3.000
6 15811-67L00-000
SUB: 15811B67L00N000		 PIPE, FUEL 1 Rp94.000
7 15815M67L00-000 HOSE, FUEL (PIPE TO ENG) 1 Rp195.000
8 15817-67LA0-000 HOSE, FUEL (TANK TO PIPE) 1 Rp185.500
9 15820-67LA0-000
SUB: 15820B67LA0N000		 PIPE, TANK SIDE 1 Rp175.500
10 15893-67LA0-000
SUB: 15893B67LA0N000		 CLAMP 5 Rp6.500
11 09401-13419-000 CLIP 4 Rp26.500
12 DISCONTINUE
SUB: 01560-0616A-000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
