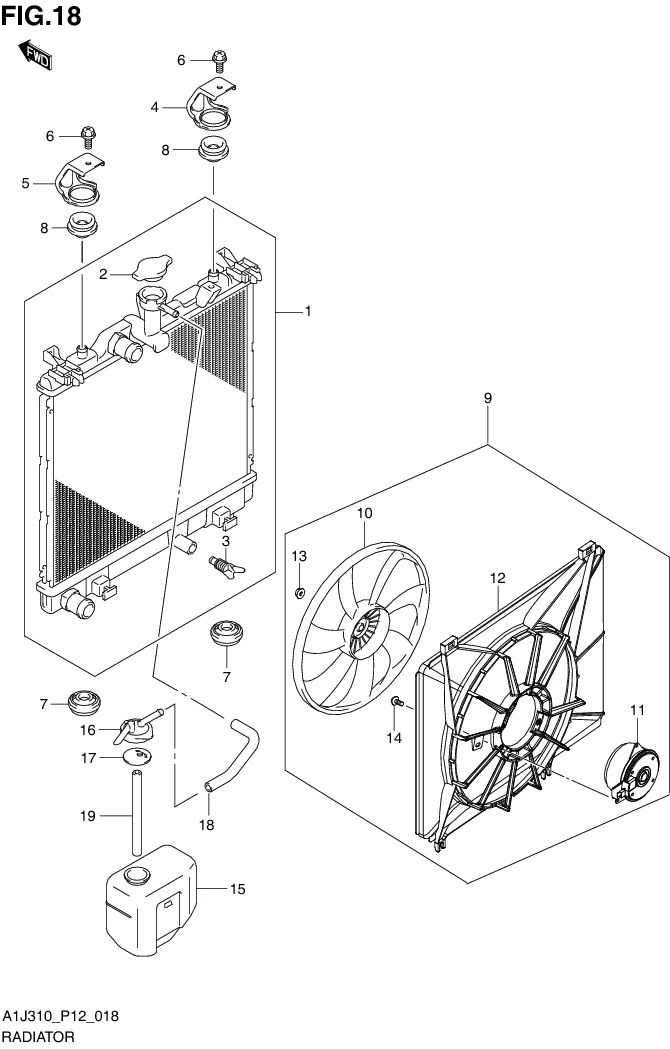

FIG. 18 RADIATOR

FIG. 18 RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1 17700-67LA0-000
SUB: 17700B67LA0N000		 RADIATOR ASSY 1 Rp1.050.000
2 DISCONTINUE
SUB: 17920B75F00N000		 •CAP, RADIATOR 1 -
3 17751-61A00-000
SUB: 17751B61A00N000		 •PLUG, DRAIN 1 Rp13.000
4 17861M65L00-000 BRACKET, RADIATOR SUP UPPER 1 Rp62.000
5 17861M65L00-000 BRACKET, RADIATOR SUP UPPER 1 Rp62.000
6 02162-0612A-000 BOLT 2 Rp11.000
7 17878-81K00-000
SUB: 17878B81K00N000		 MOUNT, RADIATOR SUPPORT LOWER 2 Rp14.000
8 17879-77M00-000
SUB: 17879B77M00N000		 MOUNT, RADIATOR SUPPORT UPPER 2 Rp12.500
9 17100-67LA0-000
SUB: 17100B67LA0N000		 FAN ASSY, ENG COOLING 1 Rp1.308.500
10 17111-67LA0-000
SUB: 17111B67LA0N000		 •FAN COOLING 1 Rp242.000
11 17120-76LA0-000
SUB: 17120B76LA0N000		 •MOTOR ASSY COOLING FAN 1 Rp415.500
12 17760-67LA0-000
SUB: 17760B67LA0N000		 •SHROUD 1 Rp400.000
13 08316-2005A-000 •NUT 1 Rp13.000
14 17129-56F00-000
SUB: 17129M56F00-000		 •SCREW,FAN MOTOR (5X11) 3 Rp24.000
15 17931-67LA0-000
SUB: 17931B67LA0N000		 TANK, WATER RESERVE 1 Rp35.500
16 17932-67LA0-000
SUB: 17932B67LA0N000		 CAP, WATER RESERVER TANK 1 Rp6.000
17 17933-68K00-000
SUB: 17933B68K00N000		 SEAL, WATER RESERVER TANK CAP 1 Rp8.500
18 17939-67LA0-000
SUB: 17939B67LA0N000		 HOSE, RADIATOR TO RSV TANK 1 Rp13.000
19 09352-70111-600 HOSE 1 Rp82.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
