KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

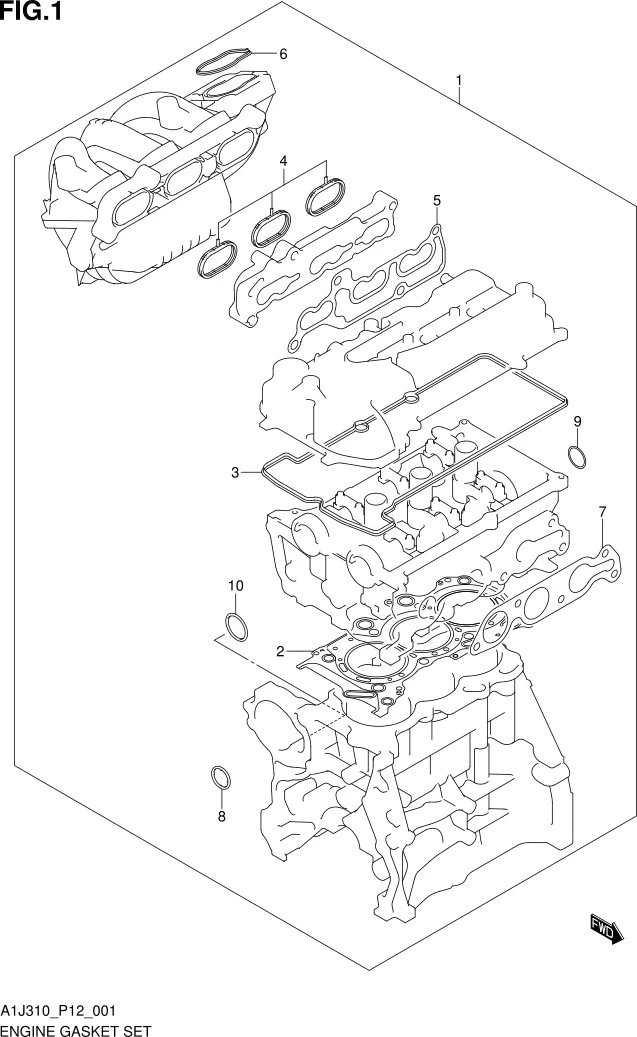

FIG. 1 ENGINE GASKET SET

FIG. 1 ENGINE GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
1 11400-66870-000
SUB: 11400B66870N000		 GASKET SET, ENGINE 1 Rp770.500
2 11141-51K01-000 •GASKET, CYLINDER HEAD 1 Rp375.000
3 11189-68K00-000
SUB: 11189B68K00N000		 •GASKET, CYLINDER HEAD COVER 1 Rp116.000
4 13118-67LA0-000
SUB: 13118B67LA0N000		 •GASKET, INTAKE MANIFOLD 1 Rp33.500
5 13119-67LA0-000
SUB: 13119B67LA0N000		 •GASKET, INTAKE MANIFOLD PLATE 1 Rp66.500
6 13421-67LA0-000
SUB: 13421B67LA0N000		 •GASKET, THROTTLE BODY 1 Rp52.500
7 14140-67LA0-000
SUB: 14140B67LA0N000		 •GASKET, EXH MANF 1 Rp82.500
8 16117-67LA0-000
SUB: 16117B67LA0N000		 •O RING, OIL PUMP CASE 1 Rp5.500
9 17699M68K00-000 •GASKET, WATER THERMOSTAT 1 Rp13.000
10 09280-28008-000
SUB: 09280B28008N000		 •O RING (D:3.5,ID:27.7) 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
