KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

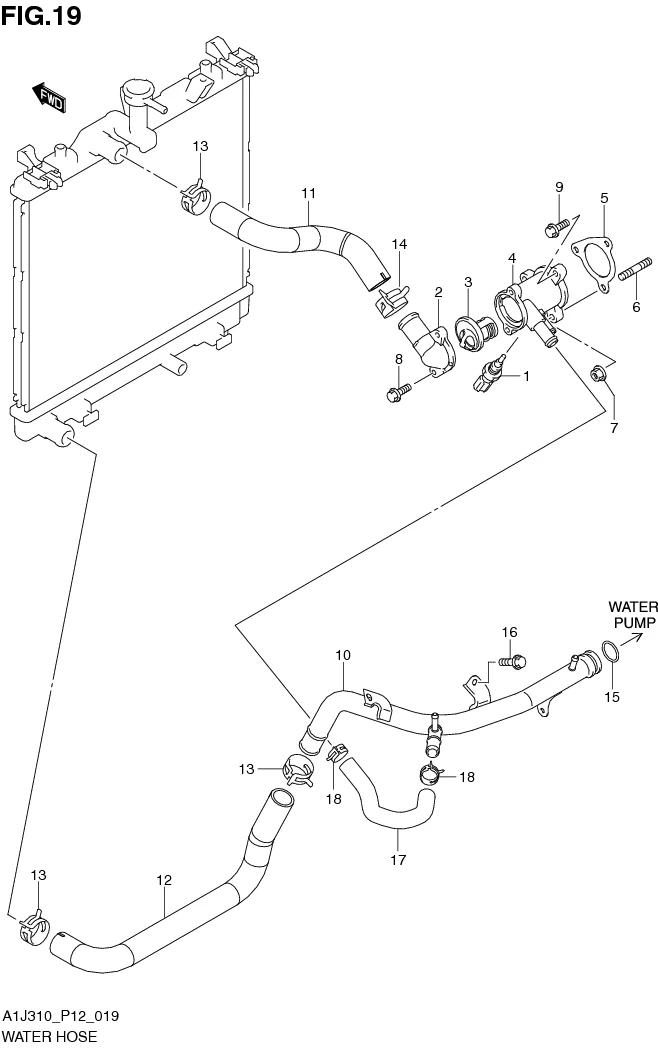

FIG. 19 WATER HOSE

FIG. 19 WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 13650-73H00-000 SENSOR, WTR TEMP 1 Rp368.000
2 17561-68K00-000
SUB: 17561B68K00N000		 CAP, WTR THERMO 1 Rp27.500
3 17670-50G11-000
SUB: 17670-50G10-000		 THERMOSTAT, WTR 1 Rp215.500
4 17690-67L00-000
SUB: 17690B67L00N000		 CASE, THERMO 1 Rp135.000
5 17699M68K00-000 GASKET 1 Rp13.000
6 01421-0825A-000 STUD BOLT 2 Rp13.000
7 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
8 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 2 Rp3.500
9 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000
10 17830-65L00-000
SUB: 17830B65L00N000		 PIPE, WATER INLET 1 Rp144.500
11 17852-67LA0-000
SUB: 17852B67LA0N000		 HOSE, RADIATOR INLET 1 Rp41.000
12 17854-67LA0-000
SUB: 17854B67LA0N000		 HOSE, RADIATOR OUTLET 1 Rp63.000
13 09401-30405-000 CLIP 3 Rp35.000
14 09401-33403-000 CLIP 1 Rp53.500
15 09280-28008-000
SUB: 09280B28008N000		 O RING 1 Rp2.500
16 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
17 17873-67LA0-000
SUB: 17873B67LA0N000		 HOSE,HTR CIRCULATION 1 Rp28.000
18 09401-21405-000 CLIP 2 Rp25.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
