KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

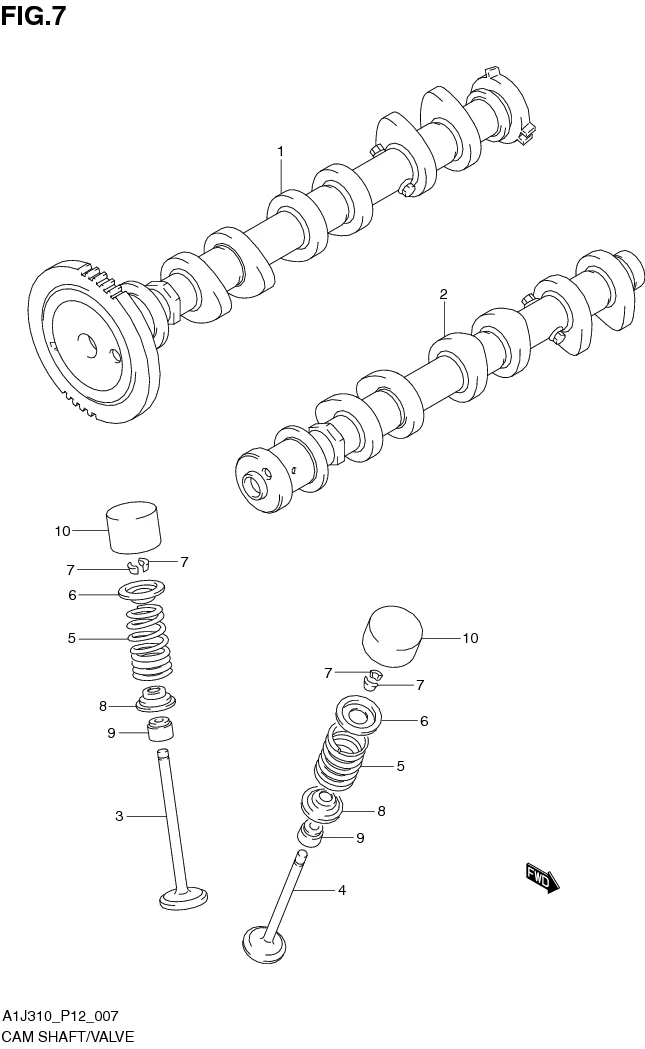

FIG. 7 CAM SHAFT/VALVE

FIG. 7 CAM SHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-51K00-000 CAMSHAFT, INTK 1 Rp4.904.500
2 12721-67L00-000 CAMSHAFT, EXH 1 Rp4.370.000
3 12911-67LA0-000
SUB: 12911B67LA0N000		 VALVE, INTAKE 6 Rp34.000
4 12915-67LA0-000
SUB: 12915B67LA0N000		 VALVE, EXH 6 Rp39.000
5 12921-67LA0-000
SUB: 12921B67LA0N000		 SPRING, VALVE 12 Rp15.000
6 12931-78G00-000 RETAINER, VALVE SPRING 12 Rp35.500
7 12932-24400-000 COTTER, VALVE 24 Rp13.000
8 12933M51E00-000 SEAT, VALVE SPRING 12 Rp3.500
9 12934-67LA0-000
SUB: 12934B67LA0N000		 SEAL, VALVE STEM 12 Rp14.500
10-29 12891-51K00-366 TAPPET (T:3.66) 0 Rp226.000
10-28 12891-51K00-364 TAPPET (T:3.64) 0 Rp232.500
10-27 12891-51K00-362 TAPPET (T:3.62) 0 Rp232.500
10-26 12891-51K00-360 TAPPET (T:3.60) 0 Rp234.500
10-25 12891-51K00-358 TAPPET (T:3.58) 0 Rp232.500
10-24 12891-51K00-356 TAPPET (T:3.56) 0 Rp226.000
10-23 12891-51K00-354 TAPPET (T:3.54) 0 Rp232.500
10-22 12891-51K00-352 TAPPET (T:3.52) 0 Rp232.500
10-40 12891-51K00-388 TAPPET (T:3.88) 0 Rp226.000
10-21 12891-51K00-350 TAPPET (T:3.50) 0 Rp232.500
10-30 12891-51K00-368 TAPPET (T:3.68) 0 Rp234.500
10-31 12891-51K00-370 TAPPET (T:3.70) 0 Rp239.500
10-32 12891-51K00-372 TAPPET (T:3.72) 0 Rp239.500
10-33 12891-51K00-374 TAPPET (T:3.74) 0 Rp237.500
10-34 12891-51K00-376 TAPPET (T:3.76) 0 Rp232.500
10-35 12891-51K00-378 TAPPET (T:3.78) 0 Rp234.500
10-36 12891-51K00-380 TAPPET (T:3.80) 0 Rp232.500
10-37 12891-51K00-382 TAPPET (T:3.82) 0 Rp234.500
10-38 12891-51K00-384 TAPPET (T:3.84) 0 Rp234.500
10-39 12891-51K00-386 TAPPET (T:3.86) 0 Rp234.500
10-10 12891-51K00-328 TAPPET (T:3.28) 0 Rp232.500
10-1 12891-51K00-310 TAPPET (T:3.10) 0 Rp227.500
10-2 12891-51K00-312 TAPPET (T:3.12) 0 Rp234.500
10-3 12891-51K00-314 TAPPET (T:3.14) 0 Rp234.500
10-4 12891-51K00-316 TAPPET (T:3.16) 0 Rp232.500
10-5 12891-51K00-318 TAPPET (T:3.18) 0 Rp232.500
10-6 12891-51K00-320 TAPPET (T:3.20) 0 Rp232.500
10-7 12891-51K00-322 TAPPET (T:3.22) 0 Rp232.500
10-8 12891-51K00-324 TAPPET (T:3.24) 0 Rp232.500
10-9 12891-51K00-326 TAPPET (T:3.26) 0 Rp234.500
10-20 12891-51K00-348 TAPPET (T:3.48) 0 Rp226.000
10-11 12891-51K00-330 TAPPET (T:3.30) 0 Rp232.500
10-12 12891-51K00-332 TAPPET (T:3.32) 0 Rp232.500
10-13 12891-51K00-334 TAPPET (T:3.34) 0 Rp232.500
10-14 12891-51K00-336 TAPPET (T:3.36) 0 Rp226.000
10-15 12891-51K00-338 TAPPET (T:3.38) 0 Rp226.000
10-16 12891-51K00-340 TAPPET (T:3.40) 0 Rp227.000
10-17 12891-51K00-342 TAPPET (T:3.42) 0 Rp220.000
10-18 12891-51K00-344 TAPPET (T:3.44) 0 Rp232.500
10-19 12891-51K00-346 TAPPET (T:3.46) 0 Rp226.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
