KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

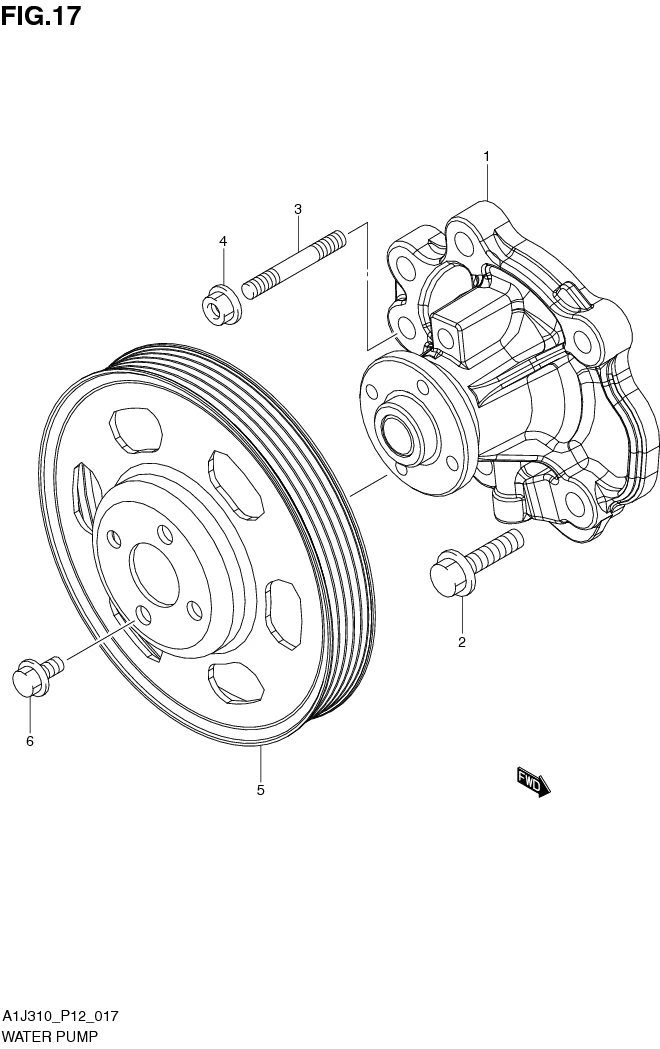

FIG. 17 WATER PUMP

FIG. 17 WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17400-77M02-000
SUB: 17400B58M00N000		 PUMP ASSY, WATER 1 Rp1.201.500
2 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 4 Rp4.000
3 01421-0835A-000 STUD BOLT 2 Rp13.500
4 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
5 17511-58M00-000
SUB: 17511B58M00N000		 PULLEY, WATER PUMP 1 Rp160.000
6 09103-06265-000
SUB: 09103-06168-000		 BOLT 4 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
