KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

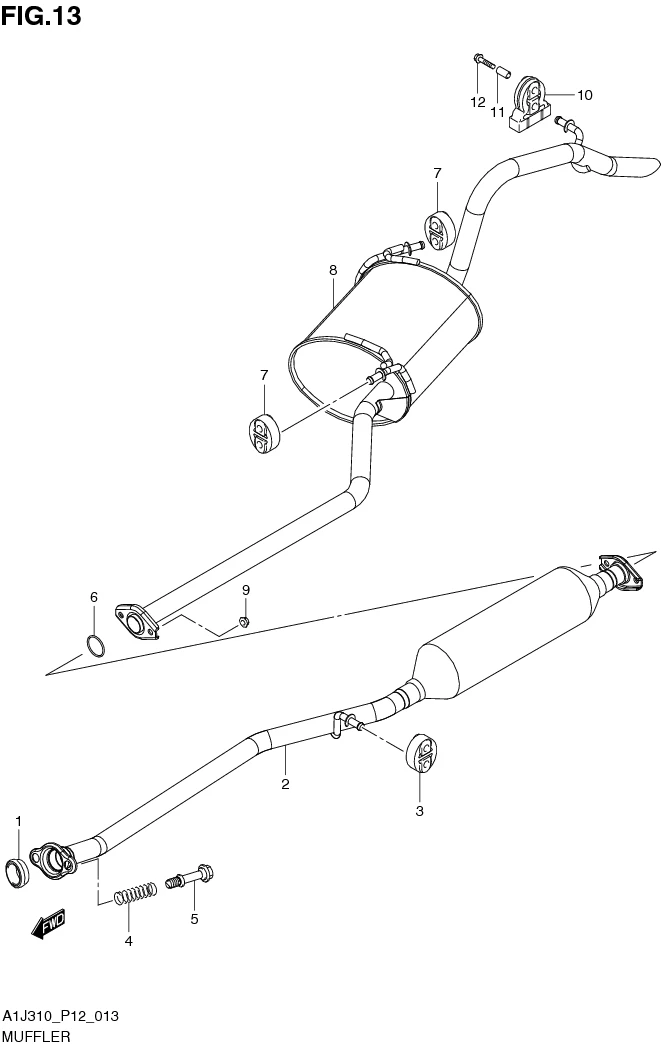

FIG. 13 MUFFLER

FIG. 13 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14183-67LA1-000
SUB: 14183B67LA1N000		 RING, SEAL EXH PIPE 1 Rp138.000
2 14190-67LC0-000
SUB: 14190B67LA0N000		 PIPE, EXH NO.1 1 Rp910.000
3 14281-77M30-000
SUB: 14281B77M30N000		 MOUNTING, MUFFLER 1 Rp23.000
4 14492-67LA0-000
SUB: 14492B67LA0N000		 SPRING, EXH PIPE 2 Rp24.000
5 14493-76G01-000 BOLT (10X53.5) 2 Rp67.000
6 14182-62L01-000
SUB: 14182-62L00-000		 GASKET, EXH PIPE 1 Rp49.000
7 14281-77M30-000
SUB: 14281B77M30N000		 MOUNTING, MUFFLER 2 Rp23.000
8 14300-67LB1-000
SUB: 14300B67LA0N000		 MUFFLER 1 Rp1.297.000
9 09159M10049-000
SUB: 09159-10102-000		 NUT 2 Rp10.500
10 14281-67LA0-000
SUB: 14281B67LA0N000		 MOUNTING, MUFFLER 1 Rp71.500
11 09180M08095-000
SUB: 09180-08057-000		 SPACER (8.2X12.5X23.5) 1 Rp7.000
12 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
