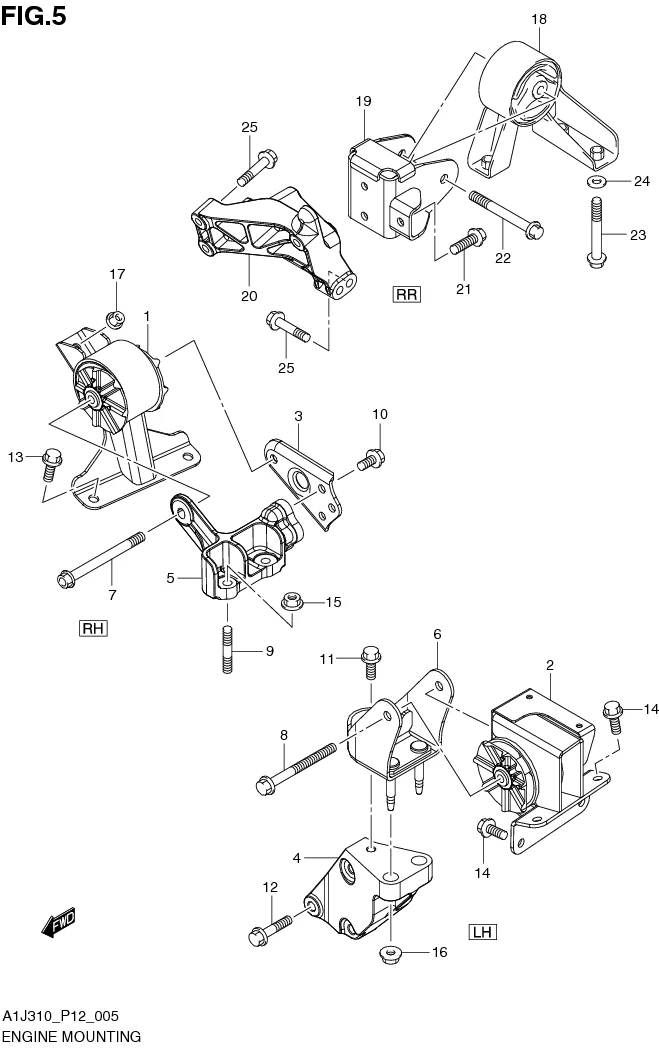

FIG. 5 ENGINE MOUNTING

FIG. 5 ENGINE MOUNTING
No No. Part Description Qty Price Per Pcs Remarks
1 11610-67LA0-000
SUB: 11610B67LA0N000		 MOUNTING, ENG RH 1 Rp511.500
2 11620-67LB0-000
SUB: 11620B67LA0N000		 MOUNTING, ENG LH 1 Rp243.000
3 11640-67LA0-000
SUB: 11640B67LA0N000		 BRACKET, ENG RH MTG 1 Rp60.000
4 11651-65L00-000
SUB: 11651B65L00N000		 BRACKET, ENG LH MTG 1 Rp153.500
5 11661M67L00-000 BRACKET, ENG MTG RH 1 Rp374.500
6 11670-65L00-000
SUB: 11670B65L00N000		 BRACKET, ENG LH MTG 1 Rp119.000
7 09103-10318-000 BOLT (10X110) 1 Rp50.500
8 09103-10414-000 BOLT (10X105) 1 Rp55.000
9 09108-10136-000 STUD BOLT 2 Rp31.500
10 01550-1020A-000 BOLT 3 Rp21.000
11 01550-1025A-000
SUB: 01550B1025AN000		 BOLT 1 Rp3.500
12 01550-1045A-000
SUB: 01550B1045AN000		 BOLT 3 Rp11.500
13 01551-1025A-000 BOLT 2 Rp29.000
14 01551-1025A-000 BOLT 4 Rp29.000
15 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
16 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
17 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
18 11710-67LB0-000
SUB: 11710B67LA0N000		 MOUNTING, ENG RR 1 Rp203.500
19 11740-67L00-000
SUB: 11740B67L00N000		 BRACKET, ENG RR MTG 1 Rp104.500
20 11749-68K01-000
SUB: 11749B68K01N000		 BRACKET, ENG RR MTG 1 Rp504.500
21 09103-10342-000 BOLT (10X32) 3 Rp41.000
22 09103-10426-000 BOLT (10X90) 1 Rp43.500
23 09113-10003-000 BOLT (10X75) 3 Rp25.500
24 09160-10506-000
SUB: 09160-10039-000		 WASHER 3 Rp6.000
25 01550-1050A-000 BOLT 4 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
