KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 ENGINE GASKET SETFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 OIL PANFIG. 5 ENGINE MOUNTINGFIG. 6 CRANKSHAFTFIG. 7 CAM SHAFT/VALVEFIG. 8 CAM CHAINFIG. 9 INTAKE MANIFOLDFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 EXHAUST MANIFOLDFIG. 13 MUFFLERFIG. 14 FUEL PUMPFIG. 15 DELIVERY PIPEFIG. 16 OIL PUMPFIG. 17 WATER PUMPFIG. 18 RADIATORFIG. 19 WATER HOSEFIG. 20 EMISSION CONTROLFIG. 21 LABEL

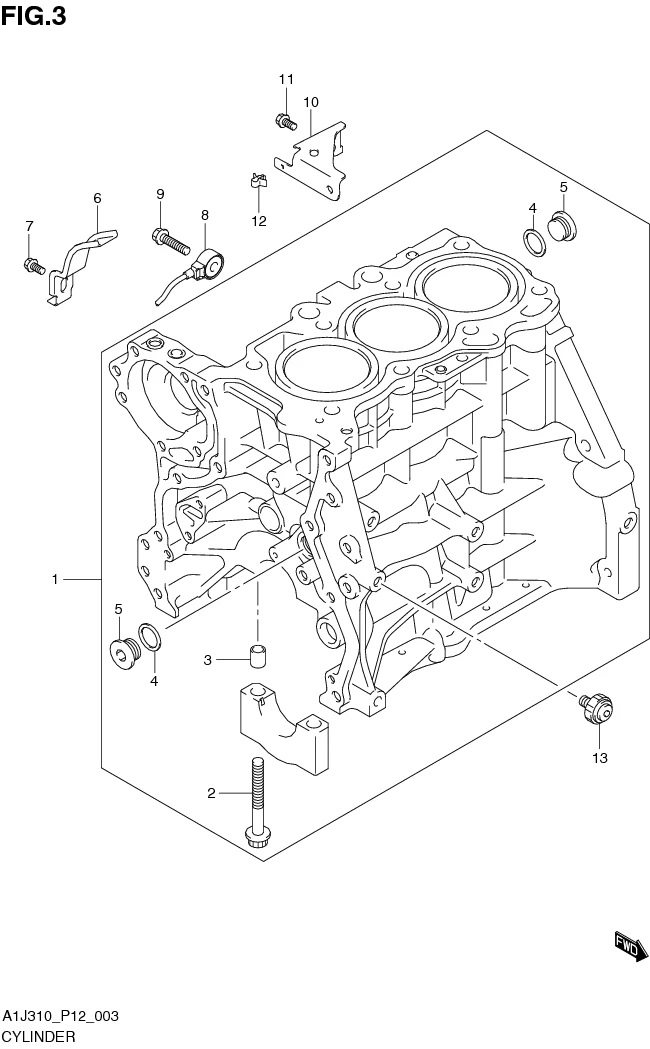

FIG. 3 CYLINDER

FIG. 3 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11200-51K10-X12 BLOCK ASSY, CYLINDER (K10B) 1 Rp18.830.000
2 11261-69J01-000
SUB: 11261-69J00-000		 •BOLT, CRANK BEARING CAP 8 Rp37.000
3 04211M13189-000 •PIN 4 Rp9.000
4 11216-77E00-000 •GASKET, M18 PLUG 2 Rp21.000
5 09248-18011-000 •PLUG 2 Rp38.000
6 11311-51K00-000
SUB: 11311M51K00-000		 COVER, STARTER OUTER 1 Rp11.000
7 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
8 18640-67LA0-000
SUB: 18640B67LA0N000		 SENSOR ASSY, KNOCK 1 Rp1.089.000
9 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500
10 18645-65L00-000
SUB: 18645M65L00-000		 BRACKET, KNOCK SENSOR 1 Rp11.000
11 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
12 09403-06412-000 CLAMP 2 Rp16.500
13 37820-80GP0-000
SUB: 37820-80G01-000		 SWITCH ASSY, OIL PRESSURE 1 Rp144.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
