JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

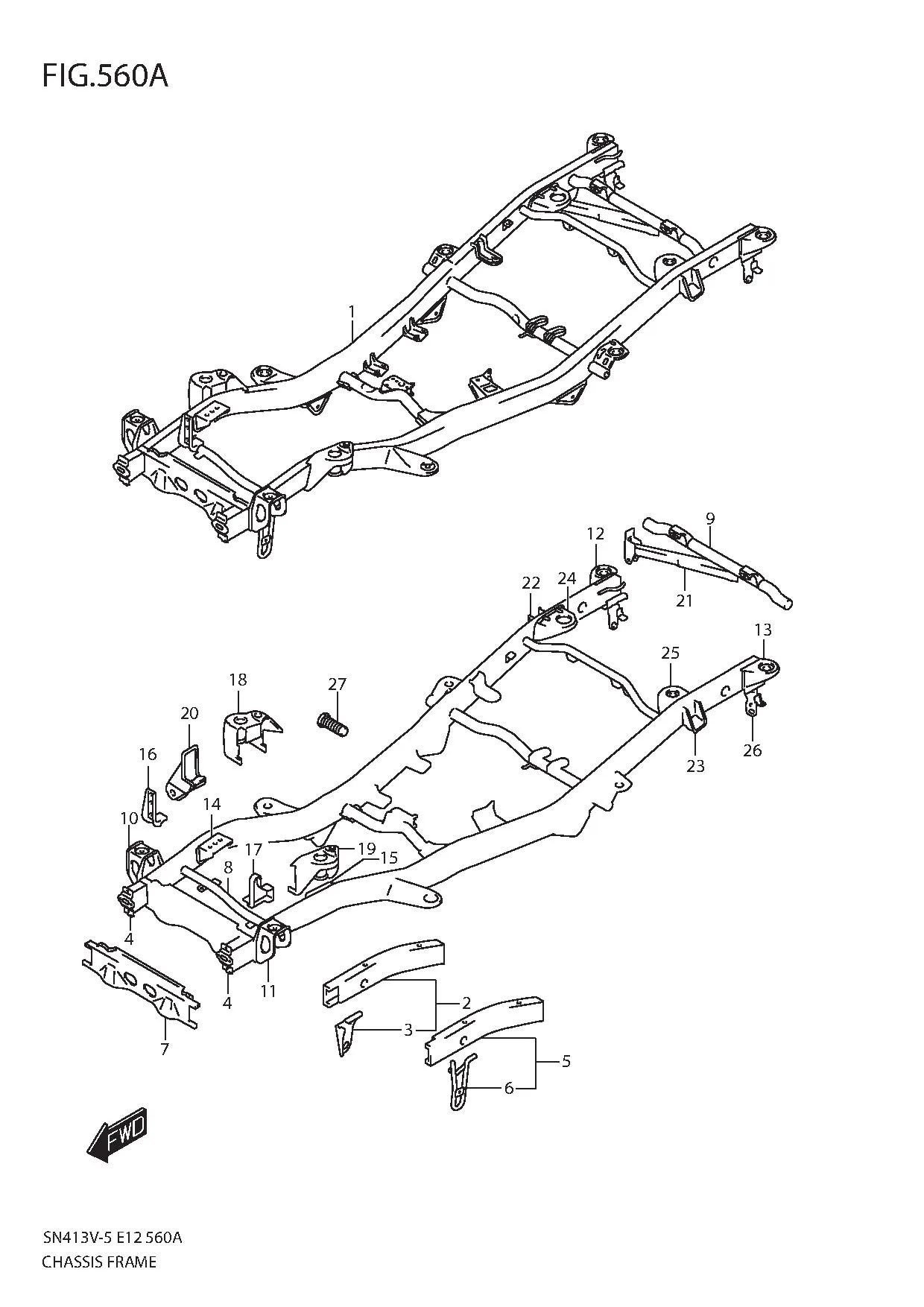

FIG.560A CHASSIS FRAME

FIG.560A CHASSIS FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 57000-57M50-000 FRAME ASSY 1 Rp46.574.500
2 57110-57M00-000 •MEMBER, FRAME FRONT RH 1 Rp4.357.500
3 57660-81A00-000 ••BRACKET & HOOK STRG GEAR BOX 1 Rp1.003.500
4 57153-57M00-000 •BRACKET, FRONT BUMPER MEMBER 2 Rp191.000
5 57160-57M00-000 •MEMBER, FRAME FRONT LH 1 Rp4.357.500
6 57671-76J00-000 ••HOOK, TOWING FR 1 Rp753.500
7 57210-57M50-000 •CROSSMEMBER,1ST 1 Rp3.699.000
8 57220-84A00-000 •CROSSMEMBER,2ND 1 Rp917.000
9 57250-81A01-000 •CROSSMEMBER,5TH 1 Rp2.391.000
10 57310-84A10-000 •BRACKET,1ST MOUNTING RH 1 Rp597.500
11 57320-84A10-000 •BRACKET,1ST MOUNTING LH 1 Rp597.500
12 57370-84A00-000 •BRACKET,4TH MOUNTING RH 1 Rp549.500
13 57380-84A00-000 •BRACKET,4TH MOUNTING LH 1 Rp549.500
14 57510-81A01-000 •BRACKET, ENGINE MOUNTING RH 1 Rp653.500
15 57520-81A10-000 •BRACKET, ENGINE MOUNTING LH 1 Rp580.000
16 57531-81A00-000 •BRACKET, RADIATOR STAY RH 1 Rp238.500
17 57541-81A01-000 •BRACKET, RADIATOR STAY LH 1 Rp185.000
18 57810-84A00-000 •BRACKET, FR COIL SPRING RH 1 Rp1.405.500
19 57830-84A00-000 •BRACKET, FR COIL SPRING LH 1 Rp1.405.500
20 57820-81A00-000 •BRACKET, LATERAL ROD FR 1 Rp964.000
21 57840-84A01-000 •BRACKET, LATERAL ROD RR 1 Rp1.425.500
22 57860-81A01-000 •BRACKET, RR BUMP STOPPER RH 1 Rp653.500
23 57870-81A01-000 •BRACKET, RR BUMP STOPPER LH 1 Rp648.500
24 57880-81A00-000 •BRACKET, RR COIL SPRING RH 1 Rp653.500
25 57890-81A00-000 •BRACKET, RR COIL SPRING LH 1 Rp653.500
26 57920-84A01-000 •HOOK, TOWING RR 2 Rp672.500
27 09119-05018-000 •STUD BOLT (5X15) 8 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
