JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

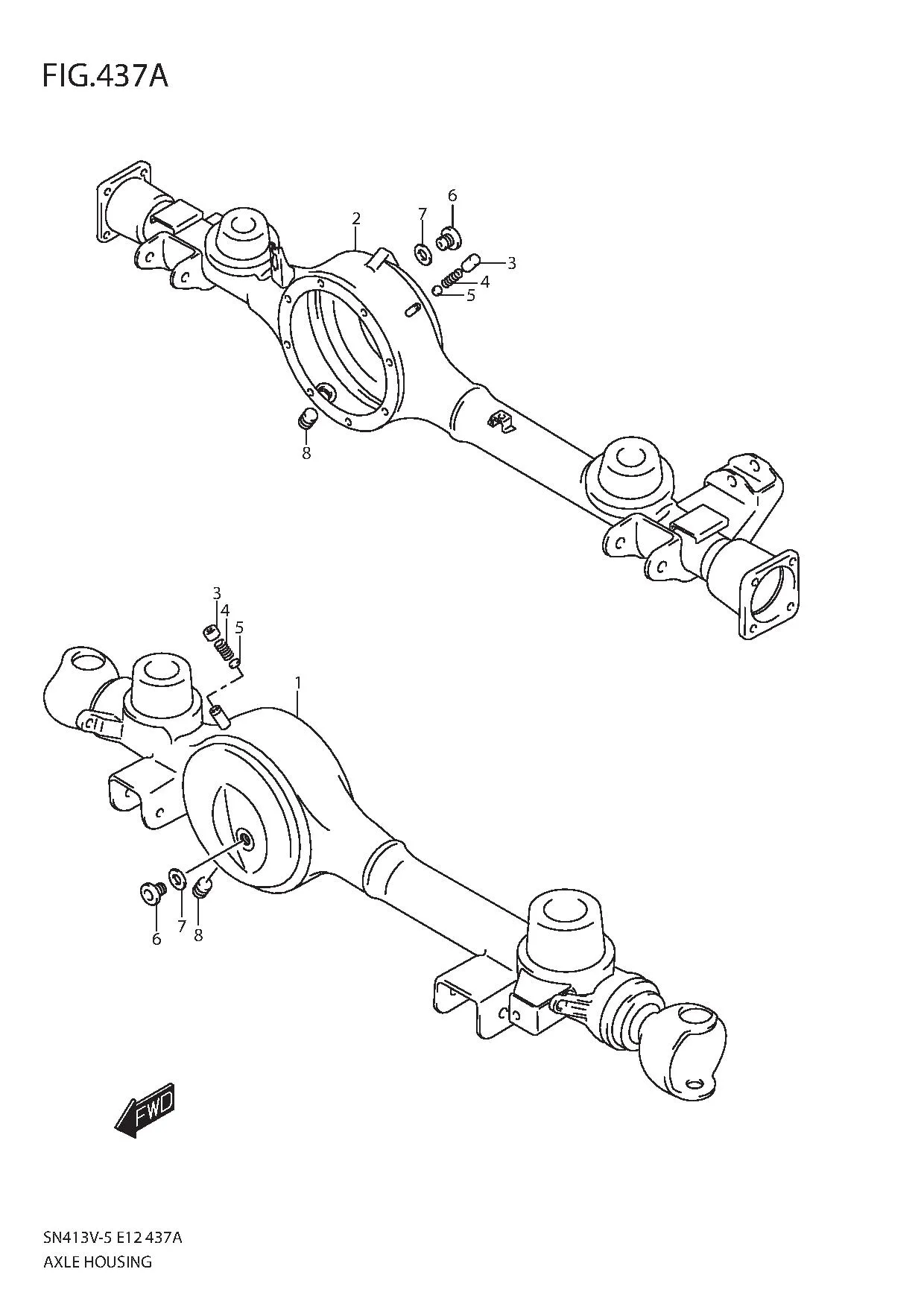

FIG.437A AXLE HOUSING

FIG.437A AXLE HOUSING
No No. Part Description Qty Price Per Pcs Remarks
1 45500-81A72-000 HOUSING, FRONT AXLE 1 Rp12.409.500
2 46510-84A30-000 HOUSING, REAR AXLE 1 Rp10.313.500
3 46541-52002-000 CAP, BREATHER 2 Rp32.000
4 09440-12004-000 SPRING 2 Rp14.000
5 46542-52001-000
SUB: 46542-52000-000		 VALVE, BREATHER 2 Rp15.000
6 09248-20003-000 PLUG 2 Rp28.500
7 09168-20003-000 GASKET (20X27X2) 2 Rp31.000
8 09246-16021-000
SUB: 09246-16010-000		 PLUG 2 Rp48.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
