JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

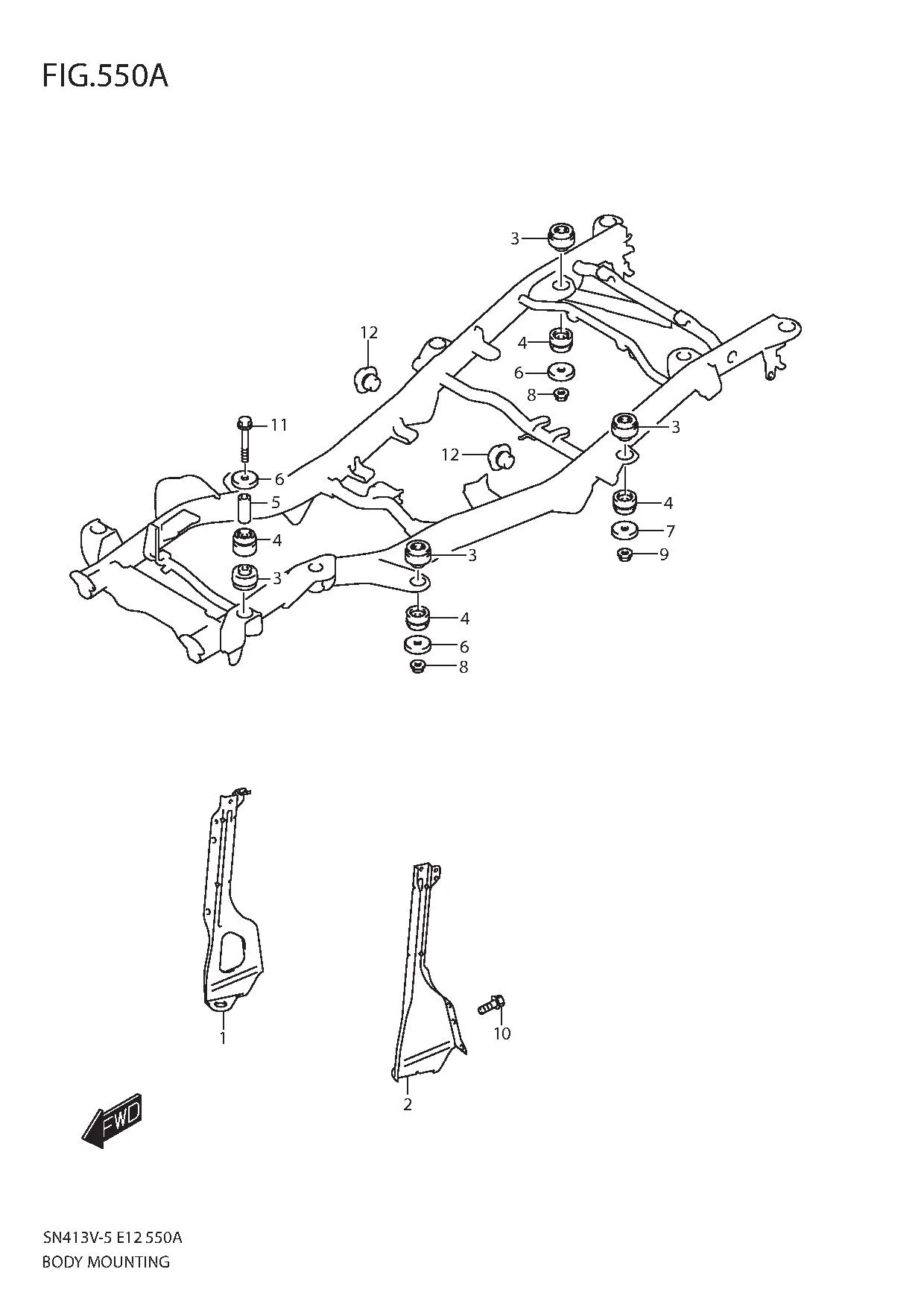

FIG.550A BODY MOUNTING

FIG.550A BODY MOUNTING
No No. Part Description Qty Price Per Pcs Remarks
1 71420-81AA0-000 STAY, RADIATOR RH 1 Rp769.000
2 71431-81A01-000 STAY, RADIATOR LH 1 Rp706.000
3 71511-65D00-000 CUSHION, BODY MOUNTING NO.1 8 Rp185.000
4 71512-65D00-000 CUSHION, BODY MOUNTING NO.2 8 Rp114.500
5 71515-65D01-000 COLLAR, BODY 1ST MOUNTING 2 Rp50.000
6 71632-83011-000 BOTTOM, BODY MOUNTING 6 Rp51.000
7 71632-81A00-000 BOTTOM,3RD BODY MOUNTING 2 Rp90.500
8 09159-10060-000 NUT 4 Rp14.000
9 08316-1012C-000 NUT 2 Rp19.500
10 01551-0816C-000 BOLT 4 Rp13.500
11 71631-57M00-000 BOLT,1ST MOUNTING 2 Rp48.500
12 09250-10022-000 CAP 22 Rp24.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
