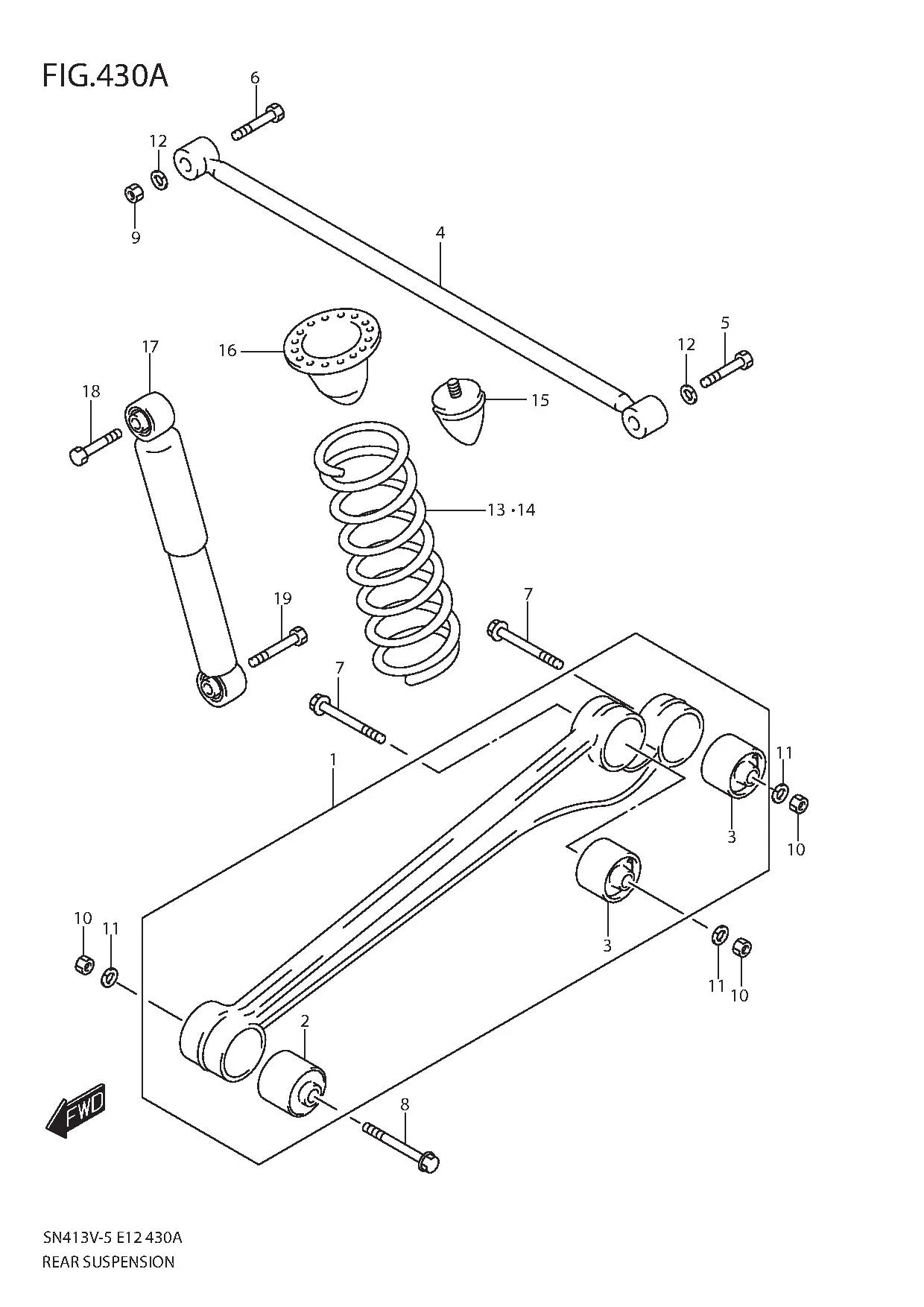

FIG.430A REAR SUSPENSION

FIG.430A REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 46200-81A13-000 ARM, REAR TRAILING 2 Rp4.060.500
2 46213-76J00-000 •BUSHING, BODY SIDE 2 Rp393.000
3 46282-81A00-000 •BUSHING, AXLE SIDE 4 Rp373.000
4 46300-81A01-000 ROD ASSY, REAR LATERAL 1 Rp1.014.000
5 45215-57M00-000 BOLT, LATERAL LOD AXLE SIDE 1 Rp46.500
6 09100-12094-000 BOLT (12X65) 1 Rp45.500
7 09103-12103-000 BOLT (12X84) 4 Rp53.000
8 09103M12057-000
SUB: 09103-12104-000		 BOLT (12X90) 2 Rp20.500
9 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
10 08316-1012A-000
SUB: 08316B1012AN000		 NUT 6 Rp6.500
11 DISCONTINUE
SUB: 08321-01123L000		 LOCK WASHER 6 -
12 DISCONTINUE
SUB: 08321-01123L000		 LOCK WASHER 2 -
13 41311-81A50-000 SPRING, REAR COIL RH 1 Rp1.401.500
14 41311-81A70-000 SPRING, REAR COIL LH 1 Rp1.401.500
15 42110-60A10-000 STOPPER, BUMP 2 Rp266.000
16 41211-82CB0-000 SEAT, REAR COIL SPRING 2 Rp187.500
17 41700-81A02-000
SUB: 41700-81A01-000		 ABSORBER ASSY, REAR SHOCK 2 Rp1.342.000
18 09103-12106-000 BOLT (12X52.2) 2 Rp34.500
19 09135-12003-000 BOLT (12X71) 2 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
