JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

FIG.439A REAR AXLE

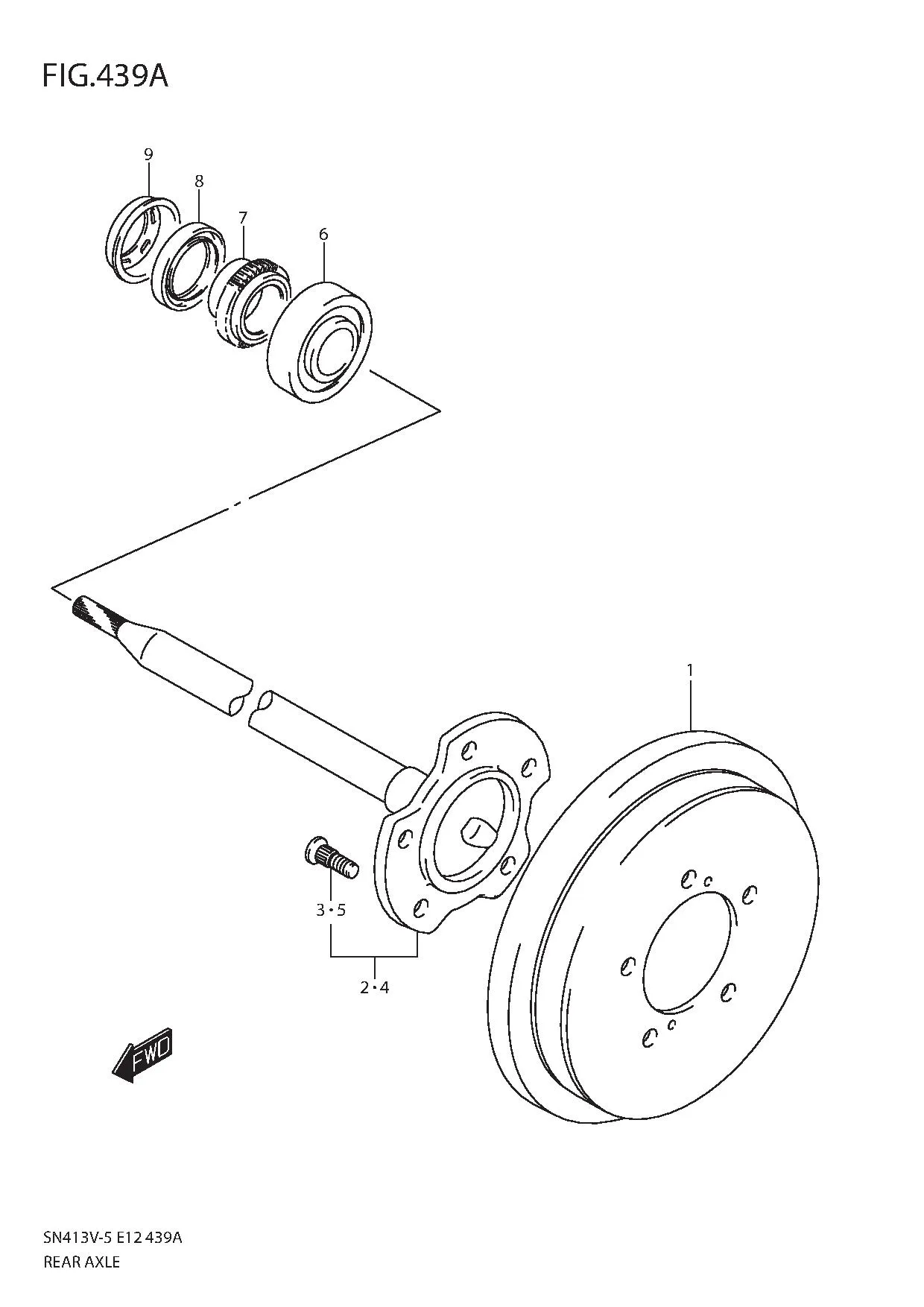

FIG.439A REAR AXLE
No No. Part Description Qty Price Per Pcs Remarks
1 43511-81A02-000 DRUM, REAR BRAKE 2 Rp2.791.500
2 44210-81810-000 SHAFT, REAR AXLE RH 1 Rp3.433.500
3 09119-12012-000 •BOLT (12X38) 5 Rp14.500
4 44220-81810-000 SHAFT, REAR AXLE LH 1 Rp3.423.500
5 09119-12012-000 •BOLT (12X38) 5 Rp14.500
6 09269-35009-000 BEARING (35X72X22) 2 Rp573.500
7 43485-76J00-000 RING, BEARING RETAINER 2 Rp479.000
8 09283-48007-000 OIL SEAL (48X62X9) 2 Rp45.000
9 43588-73000-000 PROTECTOR, OIL SEAL 2 Rp23.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
