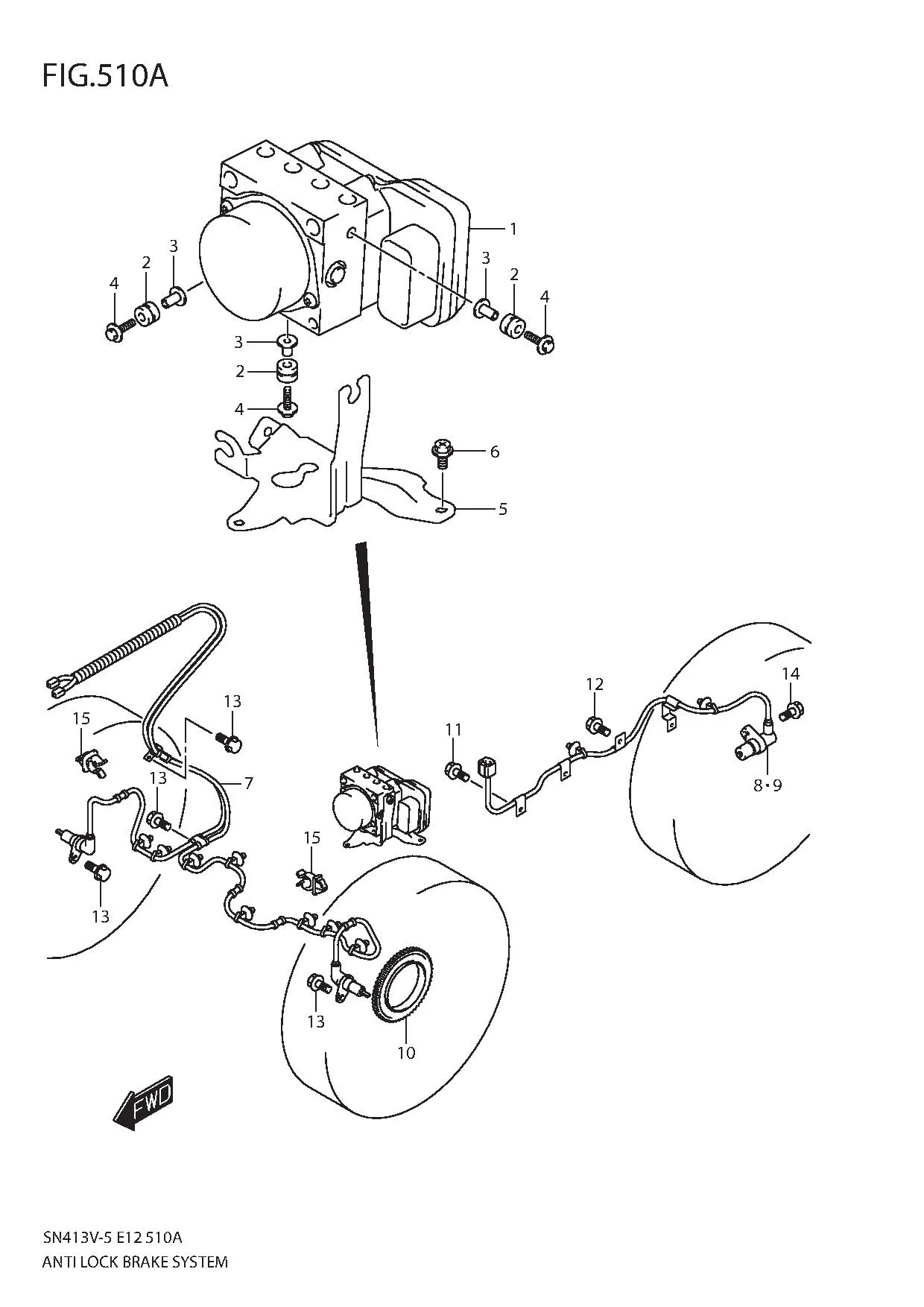

FIG.510A ANTI LOCK BRAKE SYSTEM

FIG.510A ANTI LOCK BRAKE SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1 56110-57MC0-000 ACTUATOR ASSY, ABS 1 Rp13.408.000
2 56112-60K01-000 DAMPER, ACTUATOR MOUNT 3 Rp53.500
3 56113-60K01-000 SPACER, ACTUATOR MOUNT 3 Rp66.000
4 09116-06146-000 BOLT (6X25) 3 Rp18.000
5 56160-57M00-000 BRACKET, ABS ACTUATOR 1 Rp240.000
6 01550-0612B-000 SCREW 3 Rp16.500
7 56200-57M01-000
SUB: 56200-57M00-000		 SENSOR ASSY, FR WHEEL SPEED 1 Rp3.314.000
8 56310-57M02-000
SUB: 56310-57M01-000		 SENSOR, RR WHEEL SPEED RH 1 Rp661.000
9 56320-57M02-000
SUB: 56320-57M01-000		 SENSOR, RR WHEEL SPEED LH 1 Rp817.000
10 56411-81A10-000 RING, FR WHEEL SPEED SENSOR 2 Rp729.000
11 09132-06006-000 SCREW (6X12) 2 Rp18.000
12 01550-0612B-000 SCREW 8 Rp16.500
13 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
14 02162-0616A-000 SCREW 2 Rp3.000
15 09403-08321-000 CLAMP 2 Rp20.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
