JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

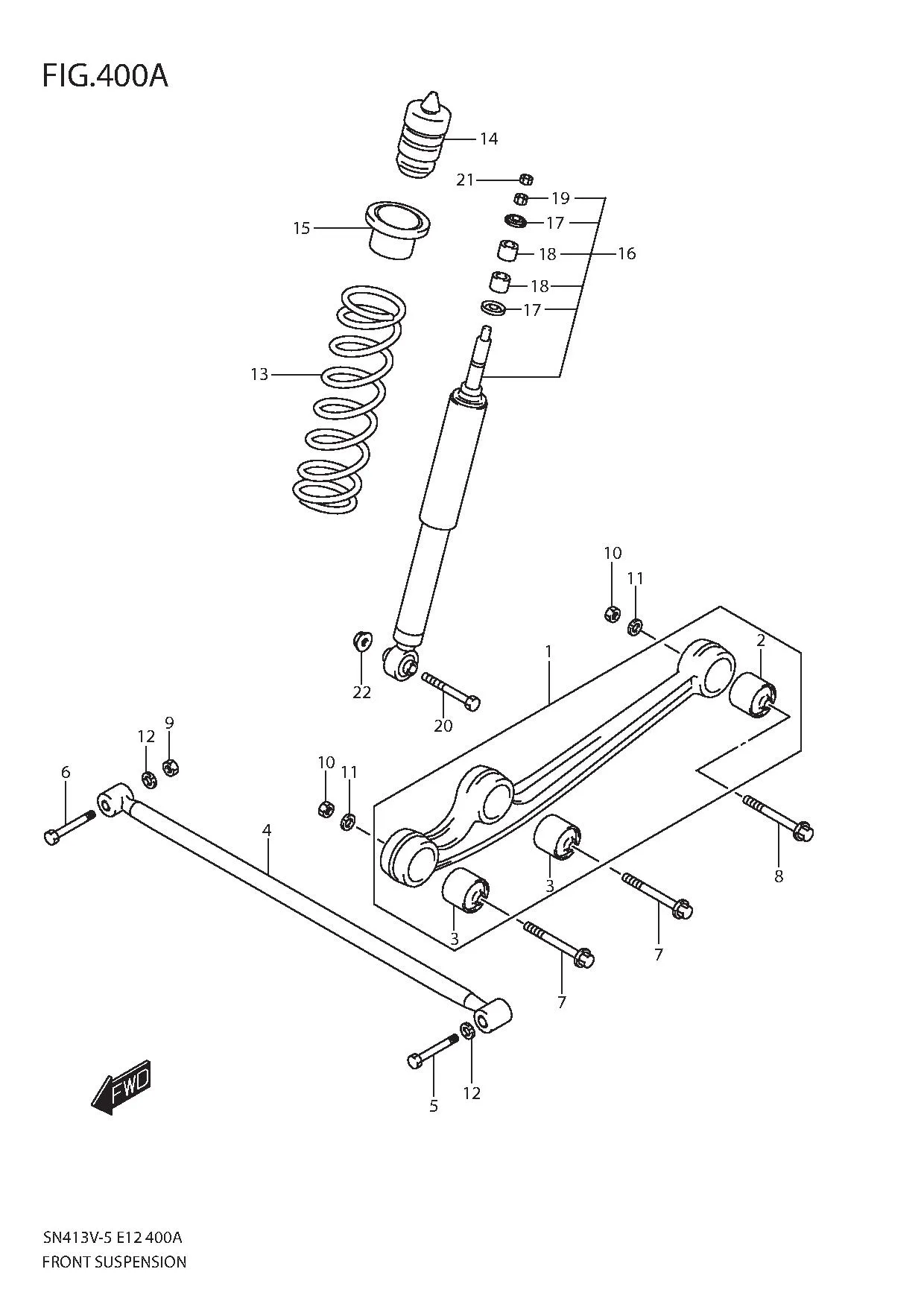

FIG.400A FRONT SUSPENSION

FIG.400A FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45200-81A12-000 ARM, FRONT LEADING 2 Rp4.050.500
2 46213-76J00-000 •BUSHING, BODY SIDE 2 Rp393.000
3 46282-81A30-000 •BUSHING, AXLE SIDE 4 Rp373.000
4 46300-82CA1-000 ROD ASSY, FRONT LATERAL 1 Rp1.217.000
5 45215-57M00-000 BOLT, LATERAL ROD AXLE SIDE 1 Rp46.500
6 09100-12094-000 BOLT (12X65) 1 Rp45.500
7 09103-12103-000 BOLT (12X84) 4 Rp53.000
8 09103M12057-000
SUB: 09103-12104-000		 BOLT (12X90) 2 Rp20.500
9 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
10 08316-1012A-000
SUB: 08316B1012AN000		 NUT 6 Rp6.500
11 DISCONTINUE
SUB: 08321-01123L000		 LOCK WASHER 6 -
12 DISCONTINUE
SUB: 08321-01123L000		 LOCK WASHER 2 -
13 41111-81A31-000
SUB: 41111-81A30-000		 SPRING, FRONT COIL 2 Rp942.500
14 42111-81A10-000 STOPPER, FRONT BUMP 2 Rp191.000
15 41341-66H00-000 SEAT, COIL SPRING RUBBER 2 Rp118.500
16 41600-81AA1-000 ABSORBER ASSY, FRONT SHOCK 2 Rp1.604.000
17 DISCONTINUE
SUB: 09165-10003-000		 •WASHER 4 -
18 09320-10047-000 •BUSHING 4 Rp43.000
19 08310-0010A-000
SUB: 08310B0010AN000		 •NUT 2 Rp3.500
20 09103M12051-000
SUB: 09103M12501-000		 BOLT (12X55) 2 Rp10.500
21 08310-0010A-000
SUB: 08310B0010AN000		 NUT 2 Rp3.500
22 08316-1012A-000
SUB: 08316B1012AN000		 NUT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
