  5. FIG.503A BRAKE PIPING

JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

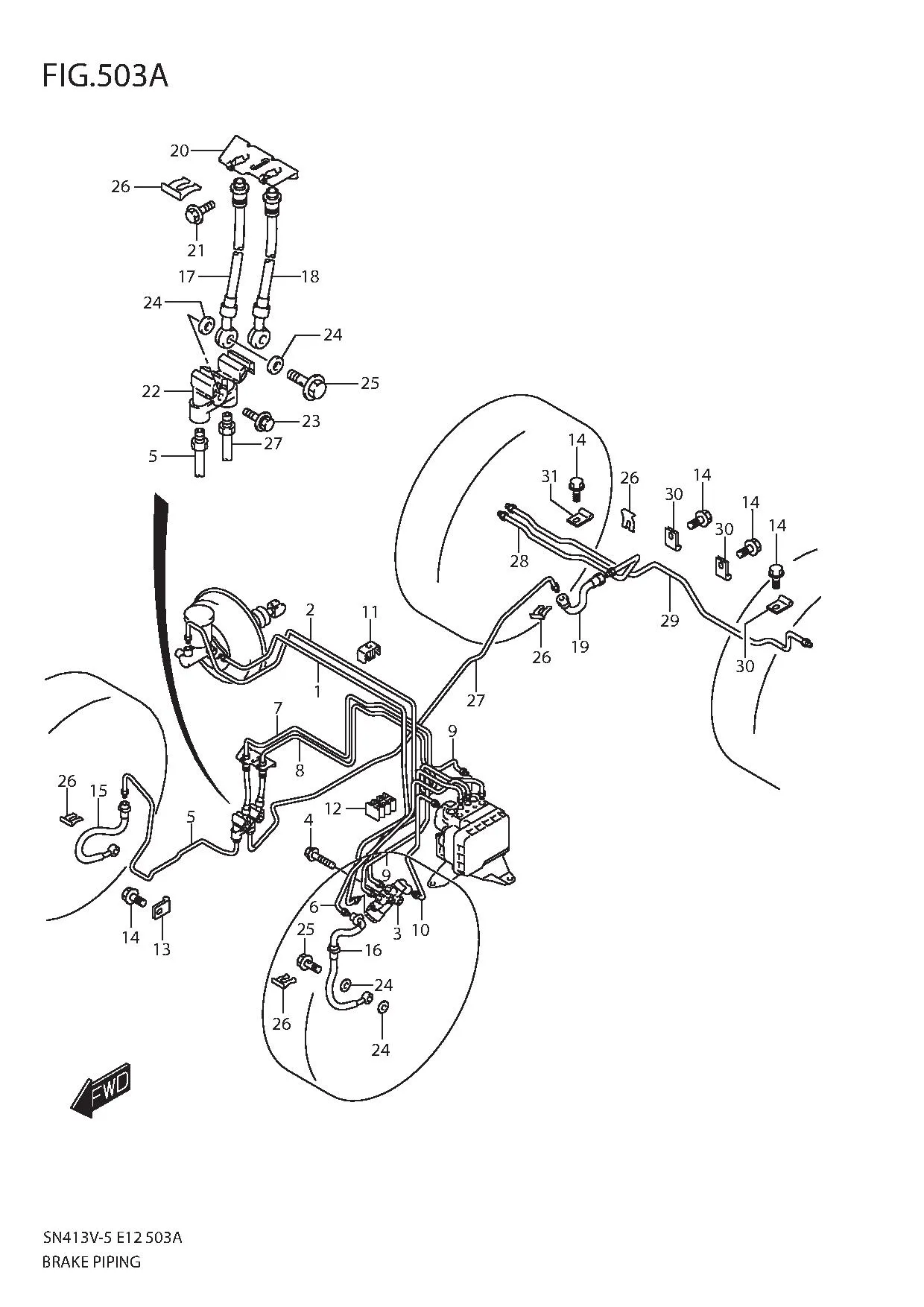

FIG.503A BRAKE PIPING

FIG.503A BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 51520-57M00-000 PIPE, MA PRI TO P VALVE 1 Rp289.500
2 51410-57M00-000 PIPE, MA SEC TO P VALVE 1 Rp87.000
3 51920-81A00-000 VALVE ASSY, P & DIFFERENTIAL 1 Rp1.736.000
4 01550-0640A-000 BOLT 2 Rp5.500
5 51420-81A01-000 PIPE, JOINT TO BK HOSE RH 1 Rp221.500
6 51430-57M00-000 PIPE, HU TO BK HOSE LH 1 Rp83.500
7 51440-57M00-000 PIPE, HU TO HOSE FR 1 Rp156.500
8 51450-57M00-000 PIPE, HU TO HOSE RR 1 Rp208.500
9 51490-57M00-000 PIPE, PV FR TO HU 1 Rp170.500
10 51510-57M00-000 PIPE, PV RR TO HU 1 Rp63.500
11 51751-75F00-000 CLAMP, BK PIPE DASH 5 Rp29.000
12 DISCONTINUE
SUB: 51753-60G00-000		 CLAMP, PIPE UNIT 2 -
13 09403-06401-000 CLAMP 1 Rp16.500
14 09132-06006-000 SCREW (6X12) 5 Rp18.000
15 51540-81A00-000 HOSE, FR BK FLEXIBLE RH 1 Rp504.000
16 51550-81A00-000 HOSE, FR BK FLEXIBLE LH 1 Rp807.000
17 51570-76J00-000 HOSE, BODY TO FRAME FLEXIBLE 1 Rp294.500
18 51570-81A00-000 HOSE, BODY TO FRAME FLEXIBLE 1 Rp375.500
19 51560-81A00-000 HOSE, RR BK FLEXIBLE 1 Rp375.500
20 51711-76J00-000 BRACKET, HOSE BODY TO FRAME 1 Rp93.000
21 02162-0616A-000 BOLT 2 Rp3.000
22 51630-65D03-000 JOINT, BRAKE 4 WAY 1 Rp378.000
23 01550-0630A-000 BOLT 1 Rp3.000
24 09161-10009-000 WASHER (10X15X1.5) 8 Rp12.500
25 09360-10026-000 BOLT 4 Rp25.000
26 09383M13004-000
SUB: 09383-13003-000		 E RING 7 Rp7.000
27 51460-76J00-000 PIPE, JOINT TO RR BK HOSE 1 Rp213.500
28 51470-81A01-000 PIPE, RR BK HOSE TO RH BK 1 Rp165.000
29 51480-81A02-000 PIPE, RR BK RH TO LH 1 Rp241.500
30 09403-06401-000 CLAMP 3 Rp16.500
31 DISCONTINUE
SUB: 09403-06404-000		 CLAMP 1 -
