JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

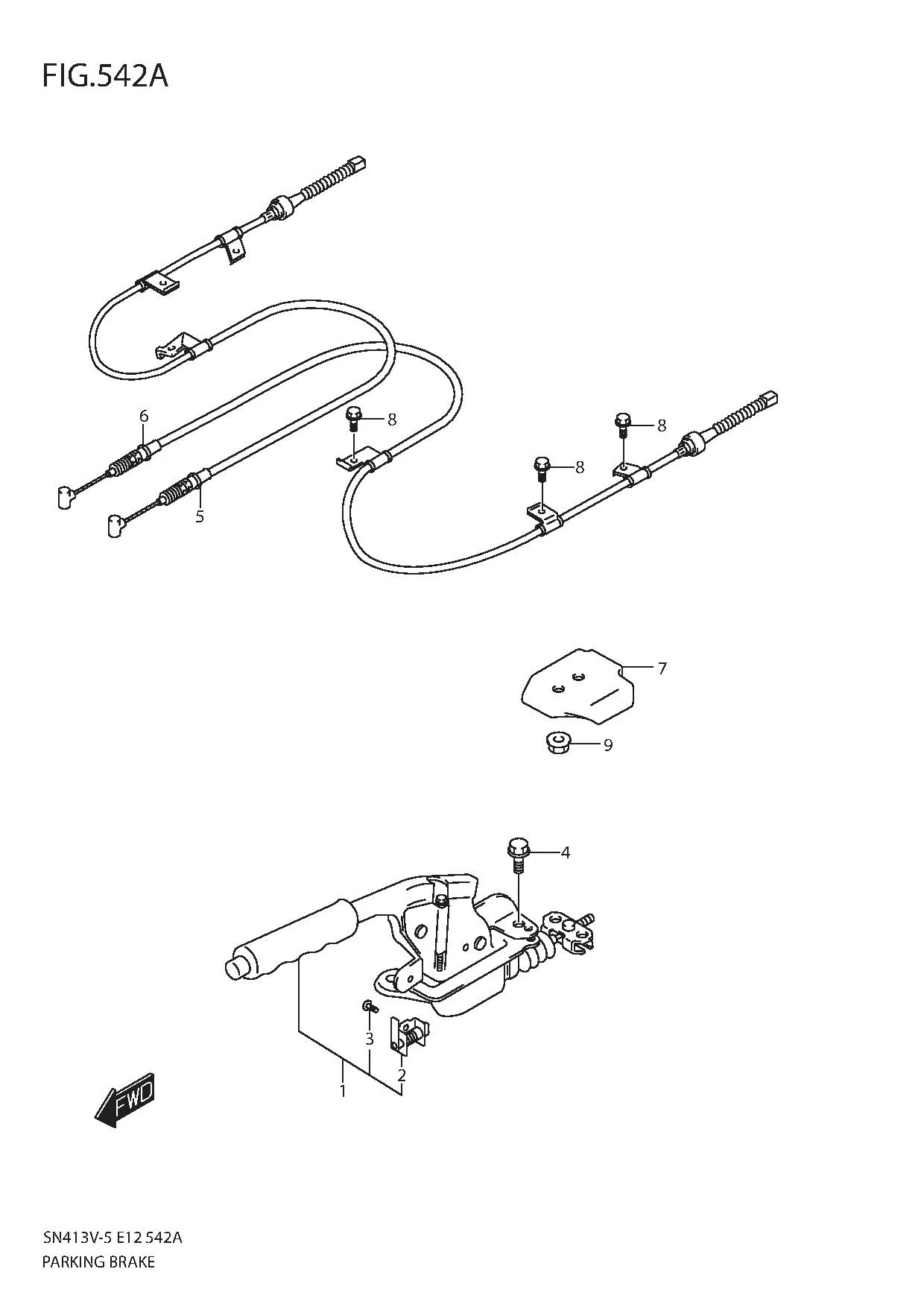

FIG.542A PARKING BRAKE

FIG.542A PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 54100-81A01-000 LEVER ASSY, PARKING BRAKE 1 Rp1.235.500
2 37940-81A00-000 •SWITCH ASSY, PARKING BK 1 Rp114.500
3 54115-76G00-000
SUB: 54115B76G00N000		 •SCREW 1 Rp16.000
4 01570-0820B-000
SUB: 01570-0820A-000		 BOLT 2 Rp31.000
5 54410-81A02-000 CABLE, PARKING BRAKE RH 1 Rp1.024.000
6 54420-81A02-000 CABLE, PARKING BRAKE LH 1 Rp1.024.000
7 54495-81A00-000 BRACKET, PARKING CABLE 1 Rp162.000
8 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 6 Rp3.500
9 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
