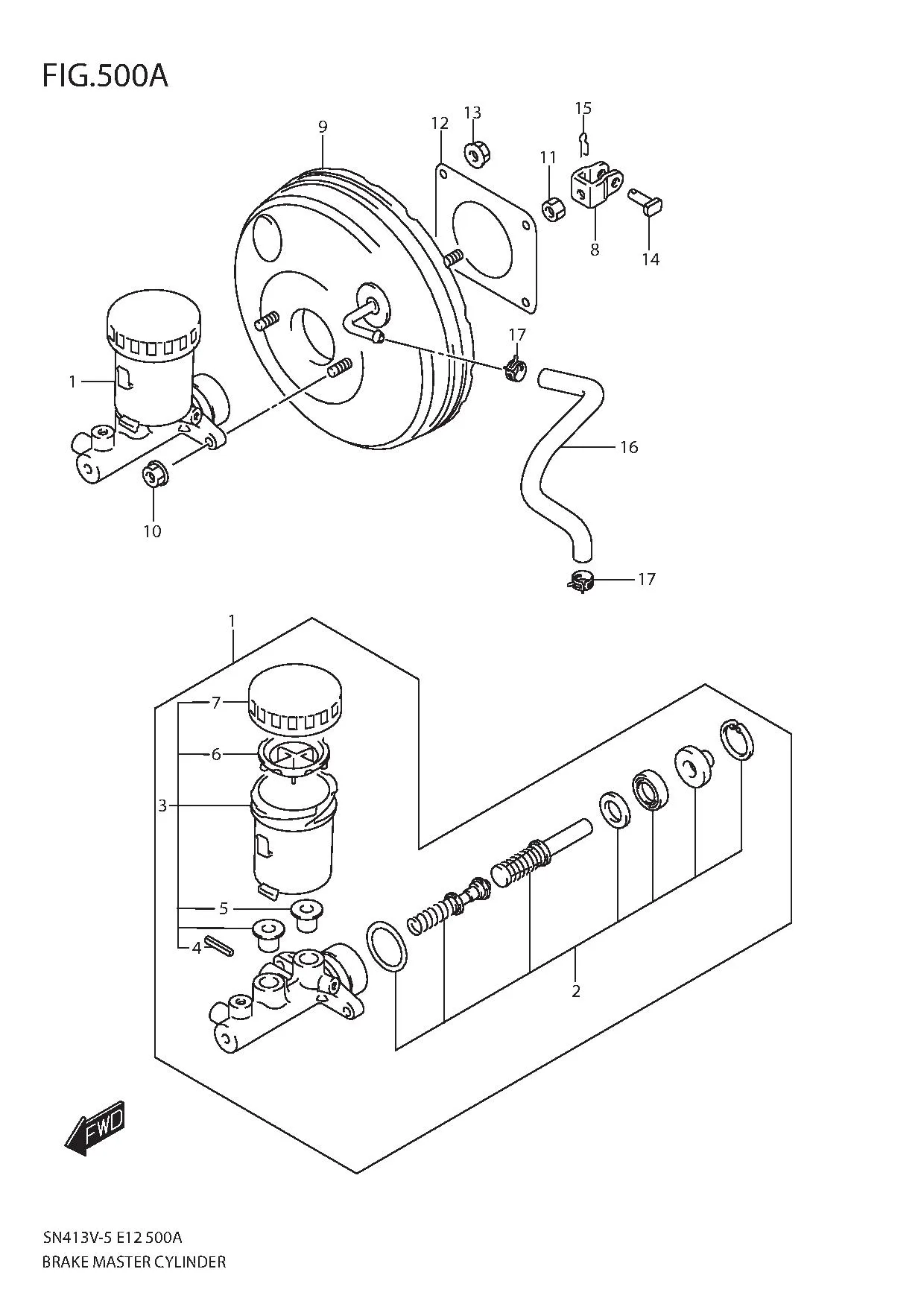

FIG.500A BRAKE MASTER CYLINDER

FIG.500A BRAKE MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 51100-81A52-000 CYLINDER ASSY, BRAKE MASTER 1 Rp3.986.000
2 51810-70AF1-000 •PISTON SET 1 Rp1.316.500
3 51200-65D10-000 •RESERVOIR ASSY, MASTER CYL 1 Rp1.629.500
4 09205-05003-000 ••SPRING PIN (5X45) 1 Rp13.500
5 DISCONTINUE
SUB: 51197-85520-000		 ••GROMMET, RESERVOIR CONNECTOR 2 -
6 DISCONTINUE
SUB: 51234-60A20-000		 ••STRAINER, MASTER CYLINDER 1 -
7 51220-60A30-000 ••CAP, RESERVOIR 1 Rp437.000
8 DISCONTINUE
SUB: 51182-77E00-000		 CLEVIS, CYLINDER PUSH ROD 1 -
9 51300-81AG0-000 BOOSTER ASSY, MASTER CYLINDER 1 Rp5.650.500
10 09159-08075-000 NUT 2 Rp14.000
11 DISCONTINUE
SUB: 09140-10019-000		 NUT 1 -
12 51132-82003-000 PACKING, BRAKE MASTER CYLINDER 1 Rp33.000
13 09159-08127-000
SUB: 09159-08135-000		 NUT 4 Rp11.000
14 09200M10021-000 PIN 1 Rp7.000
15 09385-10006-000 SNAP PIN 1 Rp16.000
16 51010-81A30-000 HOSE, BRAKE VACUUM 1 Rp569.000
17 09401-15404-000 CLAMP 2 Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
