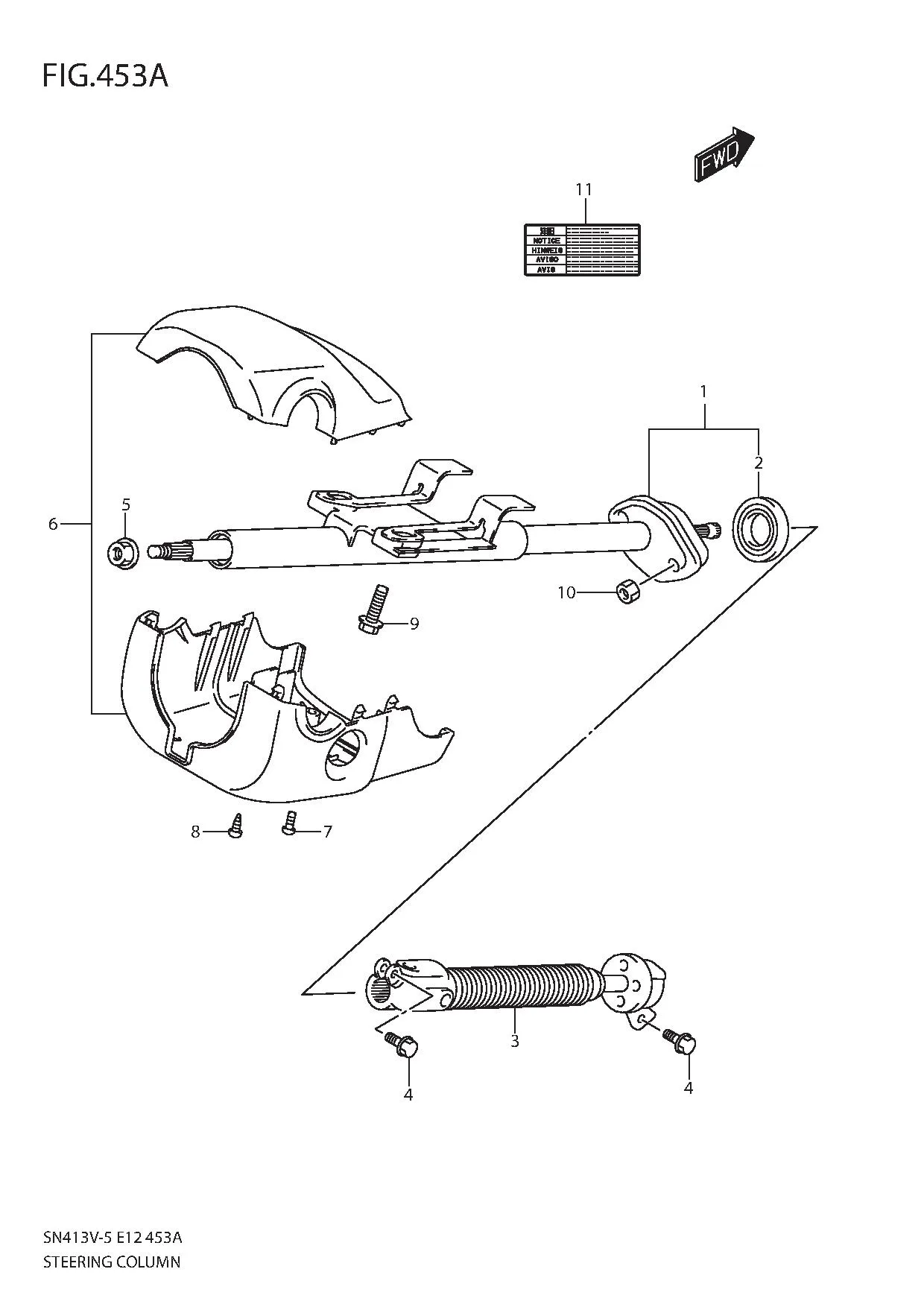

FIG.453A STEERING COLUMN

FIG.453A STEERING COLUMN
No No. Part Description Qty Price Per Pcs Remarks
1 48200-76J70-000 COLUMN ASSY, COLLAPSIBLE STEERING 1 Rp9.119.000
2 48491-81A00-000 •SEAL, STEERING COLUMN (GRAY) 1 Rp47.500
3 48220-81A20-000 SHAFT ASSY, STEERING LOWER 1 Rp5.168.000
4 DISCONTINUE
SUB: 09117-08068-000		 BOLT (8X30) 2 -
5 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
6 48400-57M00-P4Z COVER ASSY, STEERING COLUMN (GRAY) 1 Rp1.066.000
7 09136M05030-000 SCREW (5X12) 1 Rp4.500
8 03211M0512A-000 SCREW 2 Rp4.500
9 09116-08144-000 BOLT (8X28) 2 Rp37.500
10 DISCONTINUE
SUB: 08316-2008A-000		 NUT 2 -
11 DISCONTINUE
SUB: 79172-80G02-000		 LABEL, STEERING COLUMN AIR BAG 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
