JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

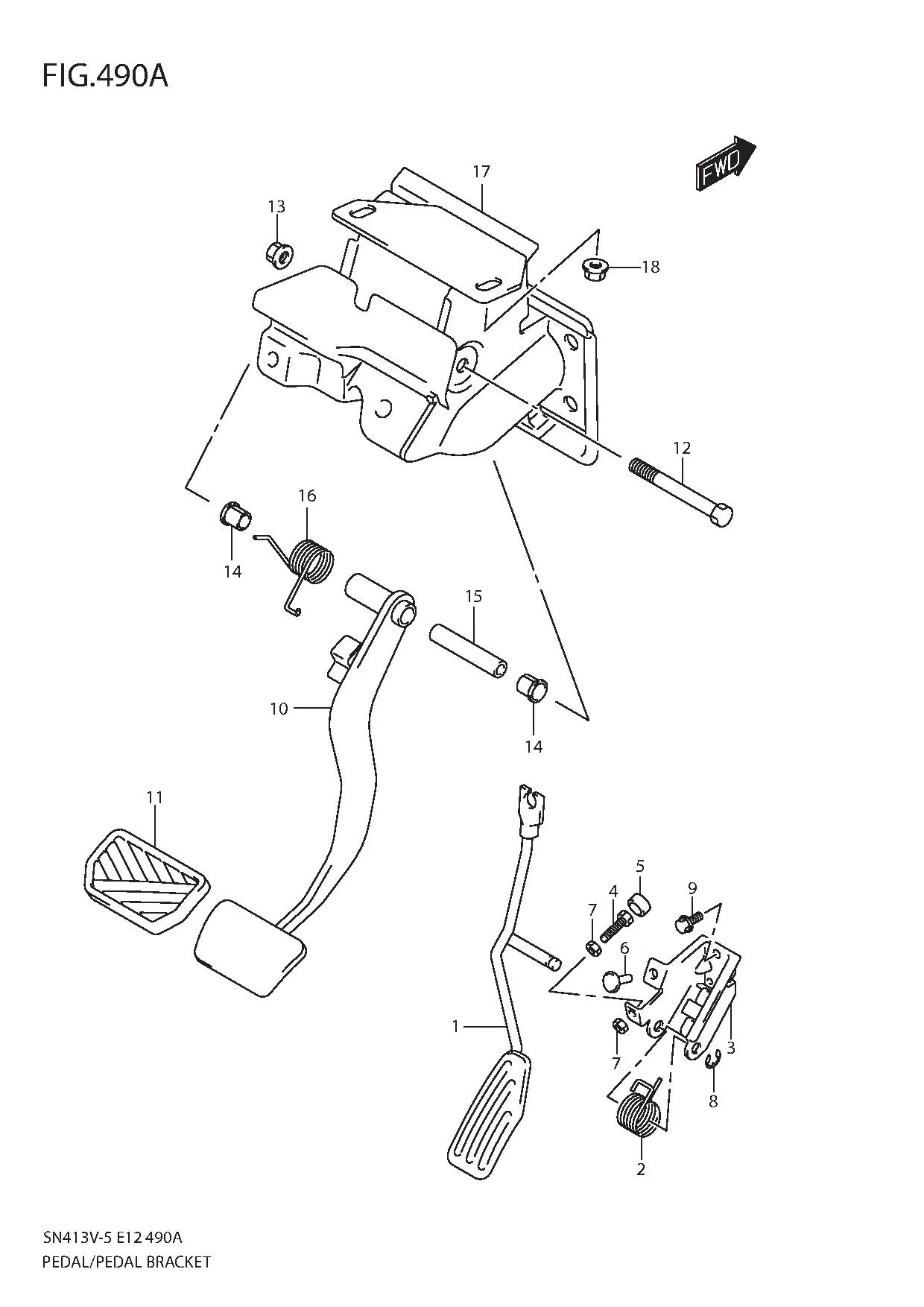

FIG.490A PEDAL/PEDAL BRACKET

FIG.490A PEDAL/PEDAL BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 49410-81A00-000 PEDAL, ACCELERATOR 1 Rp453.000
2 49491-81A02-000 SPRING, ACCELERATOR PEDAL 1 Rp89.000
3 49511-81A00-000 BRACKET, ACCELERATOR PEDAL 1 Rp134.000
4 DISCONTINUE
SUB: 09100-06055-000		 BOLT (6X25) 1 -
5 09251-09002-000 CAP (OD:13.6) 1 Rp22.000
6 09321M06026-000 CUSHION 2 Rp4.500
7 08310-0006A-000
SUB: 08310B0006AN000		 NUT 2 Rp2.500
8 08332-1107A-000 E RING 1 Rp17.000
9 01550-0612B-000 SCREW 2 Rp16.500
10 49610-57MB1-000 PEDAL, BRAKE 1 Rp1.067.500
11 49751M58J10-000 PAD, BRAKE PEDAL 1 Rp7.500
12 09100-10226-000 BOLT (10X85) 1 Rp19.500
13 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
14 09306M13004-000
SUB: 09307M13005-000		 BUSH 2 Rp11.500
15 49671-57M00-000 SPACER, BRAKE PEDAL SHAFT 1 Rp55.500
16 49691-81A00-000 SPRING, BRAKE PEDAL 1 Rp97.000
17 49710-81AA1-000 BRACKET, PEDAL 1 Rp1.613.500
18 09159-08127-000
SUB: 09159-08135-000		 NUT 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
