JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

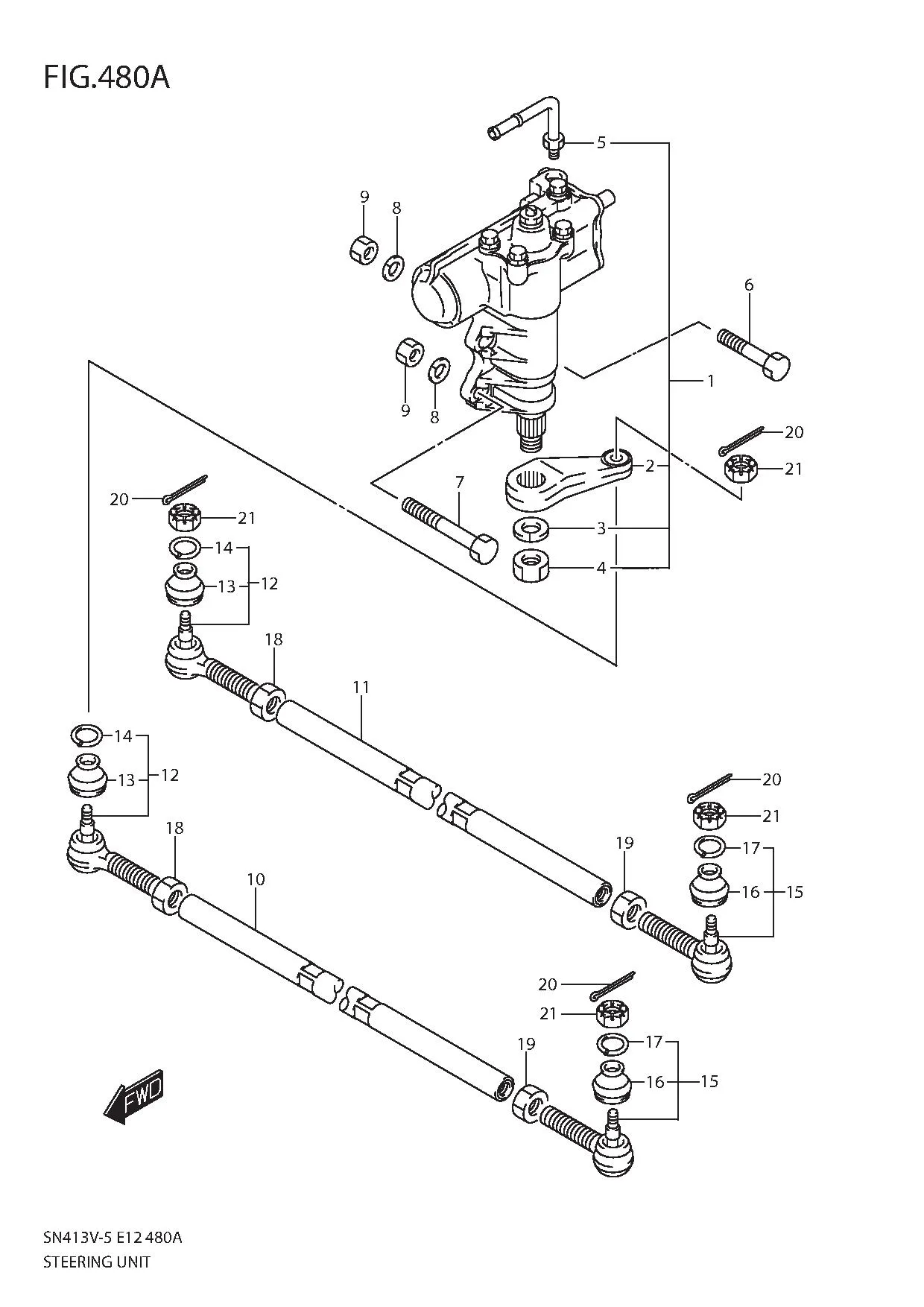

FIG.480A STEERING UNIT

FIG.480A STEERING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 48600-81A40-000 BOX ASSY, POWER STEERING GEAR 1 Rp35.802.500
2 48671-81A20-000 •ARM, PITMAN 1 Rp1.519.500
3 48644-80010-000 •LOCK WASHER 1 Rp41.000
4 48674-63240-000 •NUT 1 Rp74.500
5 48691-81A20-000 •TUBE, RETURN 1 Rp531.500
6 01500-1270A-000 BOLT 1 Rp38.500
7 01500-1290A-000 BOLT 2 Rp42.500
8 DISCONTINUE
SUB: 08321-01123L000		 LOCK WASHER 3 -
9 08310-0012A-000
SUB: 08310-00123L000		 NUT 3 Rp17.500
10 48931-81A10-000 ROD, STEERING DRAG 1 Rp1.158.500
11 48831-81A20-000 TIE ROD, STEERING 1 Rp1.371.000
12 48820-81A01-000 END, ROD RH 2 Rp571.000
13 48800-80810-000
SUB: 48806-80000-000		 •BOOT SET 2 Rp331.500
14 09401-27402-000 •CLIP 2 Rp21.000
15 48810-81A01-000 END, ROD LH 2 Rp577.000
16 48800-80810-000
SUB: 48806-80000-000		 •BOOT SET 2 Rp331.500
17 09401-27402-000 •CLIP 2 Rp21.000
18 09140-16022-000 NUT 2 Rp23.500 RH THREAD
19 09140-16023-000 NUT 2 Rp24.500 LH THREAD
20 04111-3020A-000
SUB: 04111B3020AN000		 PIN 4 Rp2.500
21 08314-40123-000
SUB: 08314-40123L000		 NUT 4 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
