JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

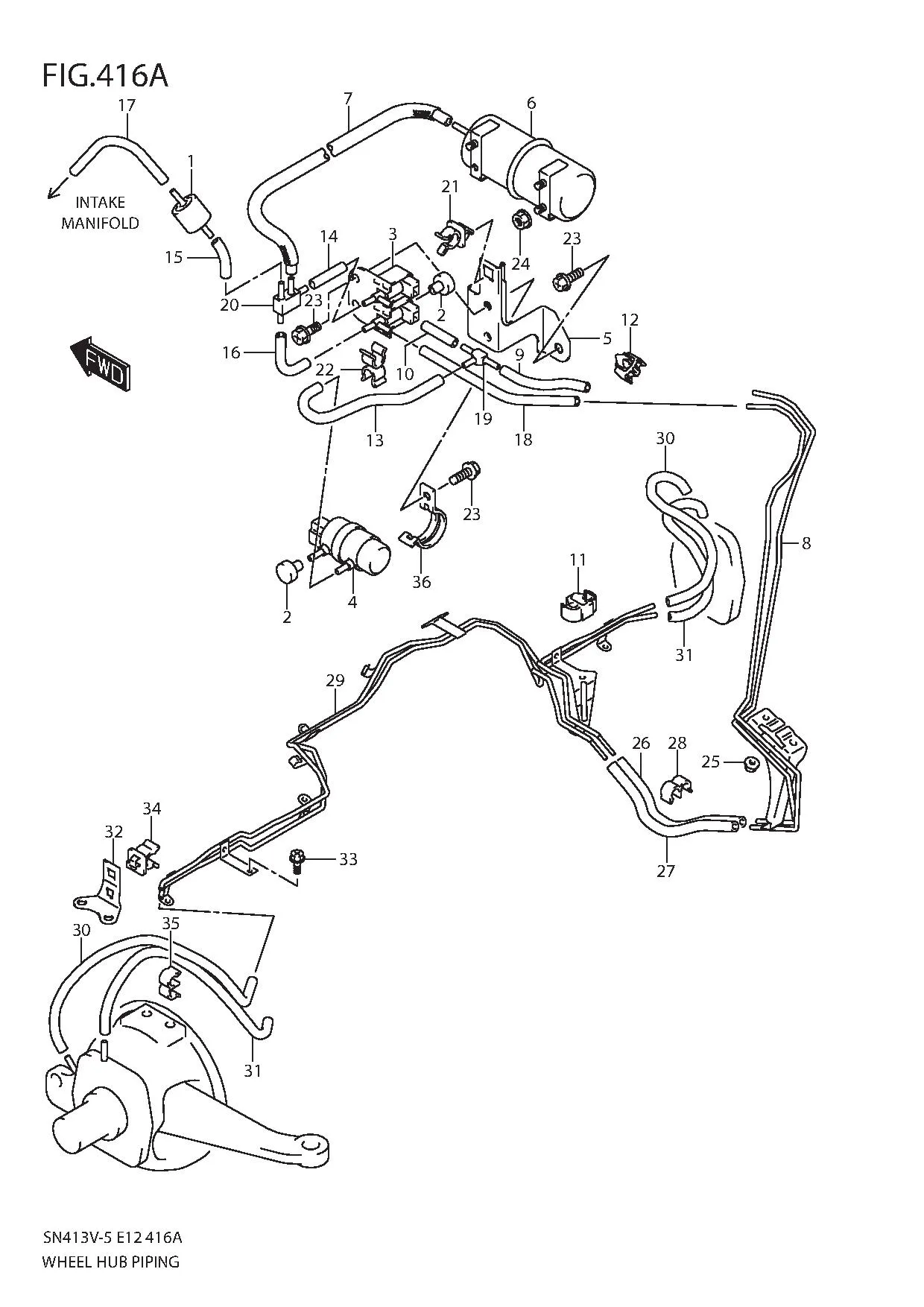

FIG.416A WHEEL HUB PIPING

FIG.416A WHEEL HUB PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 18131-82150-000 VALVE, CHECK 1 Rp156.500
2 18133-80401-000 FILTER 3 Rp97.500
3 27951-85600-000 VALVE, VACUUM SWITCH 1 Rp1.656.500
4 43830-81A60-000 SWITCH, VACUUM 1 Rp905.000
5 43840-81A01-000 BRACKET, VACUUM SWITCHING VALVE 1 Rp191.000
6 43850-81A00-000 TANK, VACUUM ACCUMULATION 1 Rp1.224.000
7 43856-81A00-000 HOSE, VACUUM TANK 1 Rp158.500
8 43870-81A40-000 PIPE, VALVE TO AXLE VACUUM 1 Rp775.500
9 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000 L:601->60
10 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000 L:601->30
11 51751-60B00-000 CLAMP, PIPE 1 Rp29.000
12 51761-70F00-000 CLAMP, PIPE 1 Rp33.500
13 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000 L:601->140
14 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000 L:601->30
15 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000 L:601->30
16 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000 L:601->60
17 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000 L:601->140
18 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000 L:601->100
19 09367-04002-000 CONNECTOR 1 Rp29.500
20 09367-04003-000 JOINT,4WAY 1 Rp42.000
21 09403-07306-000 CLAMP 1 Rp21.500
22 09408-00067-000 CLIP 1 Rp16.000
23 01550-0612B-000 SCREW 4 Rp16.500
24 08316-1006A-000
SUB: 08316B1006AN000		 NUT 3 Rp2.000
25 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
26 43885-81A50-000 HOSE, VALVE TO AXLE VACUUM 1 Rp149.500
27 43885-81A50-000 HOSE, VALVE TO AXLE VACUUM 1 Rp149.500
28 09408-00033-000
SUB: 09408B00033N000		 CLIP 1 Rp17.000
29 43910-81A61-000 PIPE, FRONT AXLE HOUSING 1 Rp2.030.500
30 43926-81A20-000 HOSE, SPINDLE VACUUM 2 Rp178.500
31 43926-81A30-000 HOSE, SPINDLE VACUUM 2 Rp147.000
32 45616-81A00-000 BRACKET, KINGPIN HOSE 2 Rp61.500
33 09132-06006-000 SCREW (6X12) 4 Rp18.000
34 09403-07306-000 CLAMP 2 Rp21.500
35 09408-00033-000
SUB: 09408B00033N000		 CLIP 4 Rp17.000
36 18569-78100-000 CLAMP, SWITCH 1 Rp31.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
