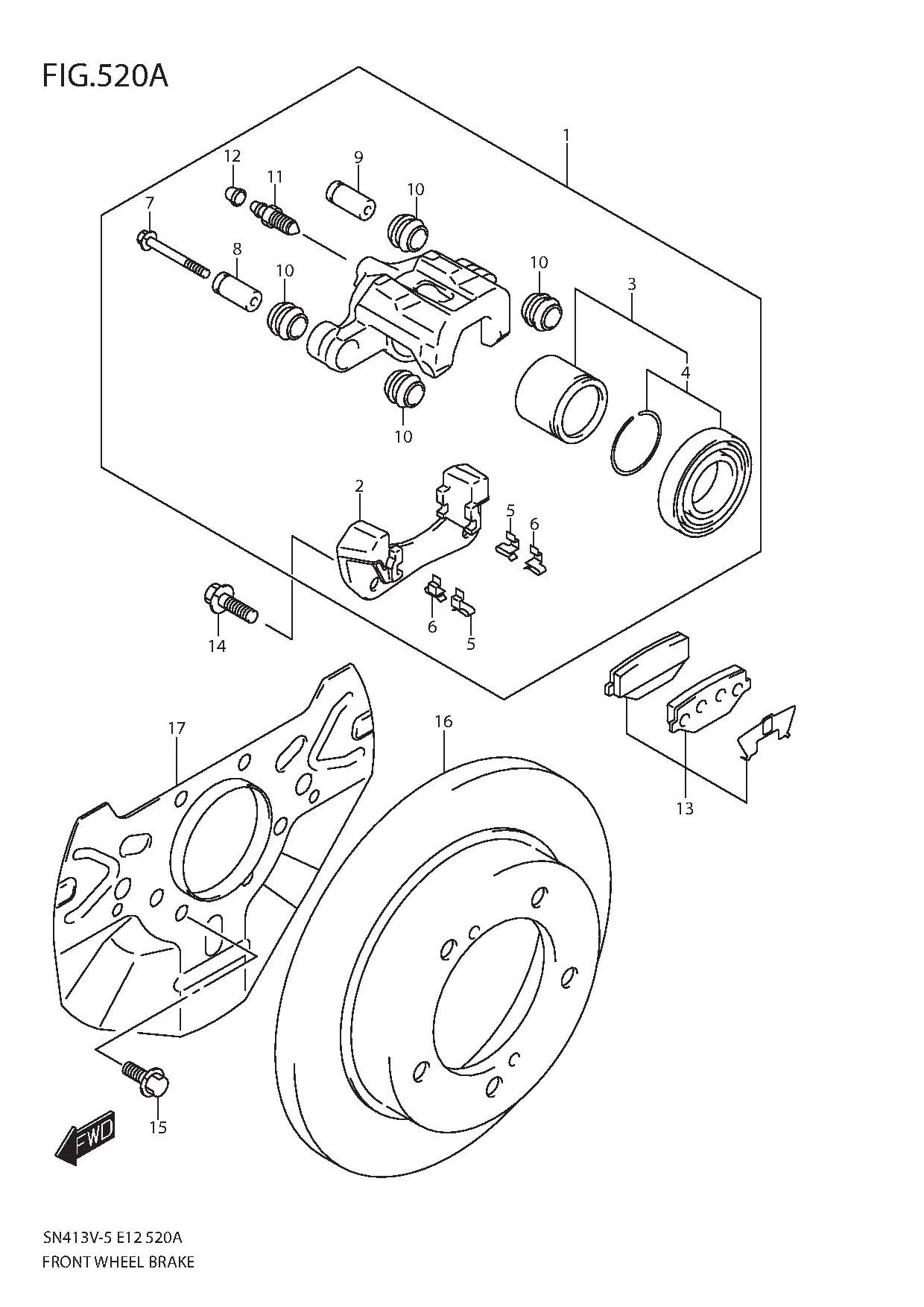

FIG.520A FRONT WHEEL BRAKE

FIG.520A FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55100-81A13-999 CALIPER, FR DISC BRAKE 2 Rp3.442.000
2 55161-80000-000 •MOUNTING, DISC BRAKE 2 Rp472.500
3 55830-78A05-000
SUB: 55830-78A02-000		 •PISTON/SEAL SET 2 Rp526.500
4 55100-82824-000
SUB: 55100-82822-000		 ••SEAL SET 2 Rp96.000
5 55235-60B00-000 •PLATE, PAD SUPPORT NO.2 4 Rp66.500
6 55234-78R00-000
SUB: 55234-60B00-000		 •PLATE, PAD SUPPORT NO.1 4 -
7 55164-61G50-000 •BOLT, BRAKE CALIPER 4 Rp45.000
8 55191-61G51-000 •BUSHING, CYLINDER SLIDER 2 Rp117.500
9 55192-61G01-000 •BUSH, CYLINDER SLIDER 2 Rp140.500
10 55201-86040-000 •BOOT, BUSH DUST 8 Rp61.000
11 55151-78451-000
SUB: 55151B78451N000		 •PLUG, BLEEDER 2 Rp45.500
12 55156M66310-000 •CAP, BLEEDER PLUG 2 Rp23.500
13 55810-57M00-000 PAD SET, DISC BRAKE 1 Rp1.415.000
14 09117-12012-000 BOLT (12X32) 4 Rp38.500
15 09117-10057-000 BOLT (10X25) 8 Rp32.500
16 55211-76J02-000 DISC, FRONT BRAKE 2 Rp1.587.000
17 55221-81A11-000 COVER, BRAKE DISC DUST 2 Rp508.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
