JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

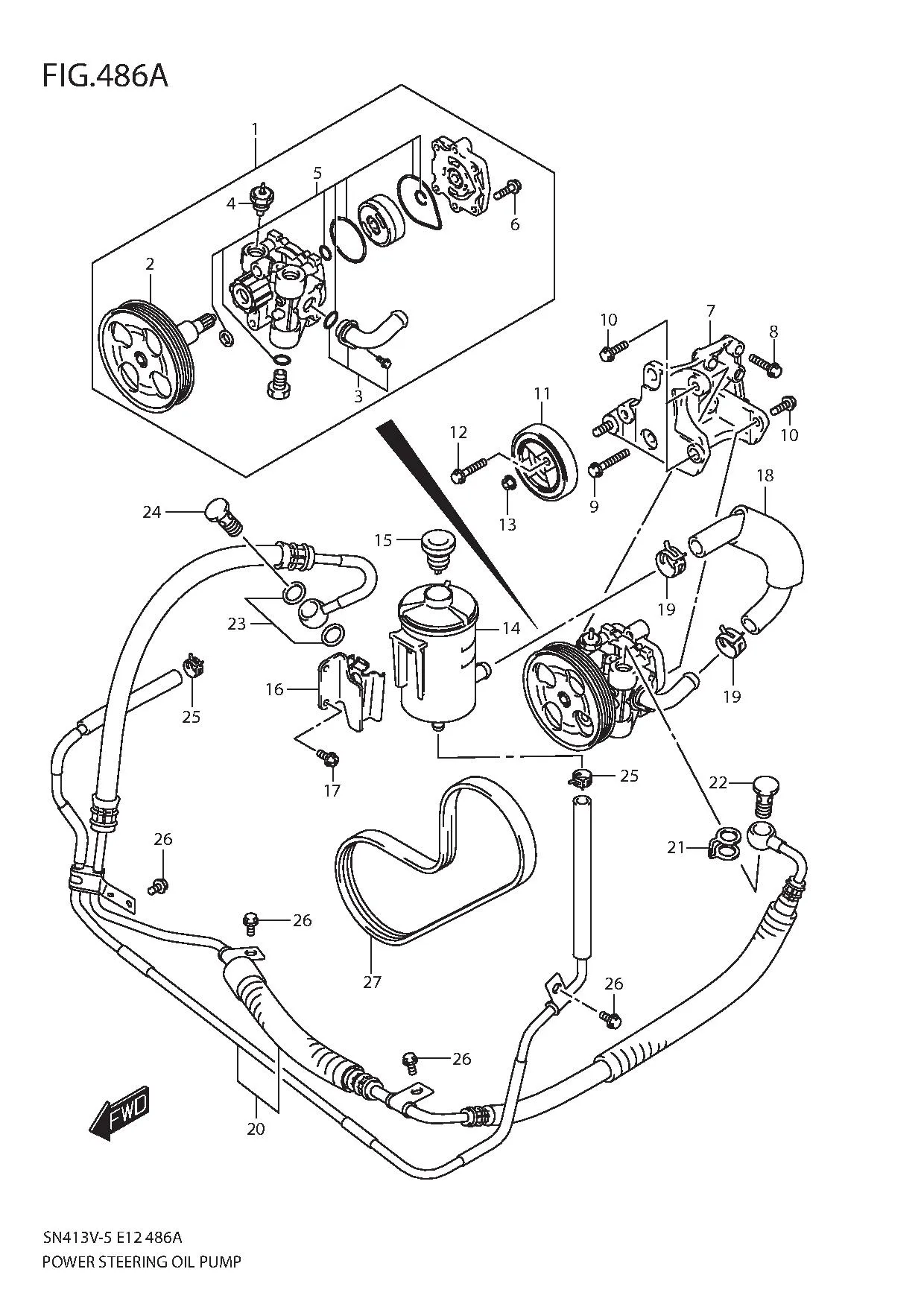

FIG.486A POWER STEERING OIL PUMP

FIG.486A POWER STEERING OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 49100-81A40-000 PUMP ASSY, POWER STEERING 1 Rp9.607.500
2 49111-81A40-000 •PULLEY 1 Rp1.460.500
3 49112-81A20-000 •CONNECTOR SET 1 Rp590.000
4 49113-65D00-000 •TERMINAL SET 1 Rp476.000
5 49114-56B30-000 •SEAL SET 1 Rp470.500
6 DISCONTINUE
SUB: 49115-56B30-000		 •BOLT SET 1 -
7 DISCONTINUE
SUB: 49120-69G00-000		 BRACKET, PUMP 1 -
8 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 4 Rp3.500
9 01550-0855A-000 BOLT 2 Rp3.500
10 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 3 Rp3.500
11 49160-64J02-000 PULLEY, BELT TENSION 1 Rp2.011.500
12 09103-08071-000 BOLT (8X36) 1 Rp33.000
13 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
14 49140-54J01-000 TANK ASSY, POWER STEERING OIL 1 Rp955.500
15 49142-65D00-000 •CAP 1 Rp67.500
16 49150-81A41-000 BRACKET, TANK 1 Rp257.000
17 01550-0612B-000 SCREW 2 Rp16.500
18 49214-81A40-000 HOSE, SUCTION 1 Rp335.500
19 09401-20405-000 CLIP 2 Rp23.500
20 49200-81A30-000 HOSE ASSY, PRESSURE/RETURN 1 Rp9.260.500
21 49211-63G03-000 GASKET 1 Rp56.500
22 09360-16003-000 UNION 1 Rp92.000
23 09168-14014-000 GASKET (14X18X1.5) 2 Rp18.000
24 49237-65J00-000 BOLT 1 Rp90.500
25 09401-15404-000 CLIP 2 Rp14.500
26 DISCONTINUE
SUB: 01550-0816C-000		 BOLT 4 -
27 17521-84H00-000 BELT (4PK850) 1 Rp203.000 N_AC

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
