JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.400A FRONT SUSPENSIONFIG.408A FRONT STABILIZERFIG.413A FRONT AXLEFIG.416A WHEEL HUB PIPINGFIG.430A REAR SUSPENSIONFIG.437A AXLE HOUSINGFIG.439A REAR AXLEFIG.449A ROAD WHEEL/TIREFIG.451A STEERING WHEELFIG.453A STEERING COLUMNFIG.480A STEERING UNITFIG.486A POWER STEERING OIL PUMPFIG.490A PEDAL/PEDAL BRACKETFIG.500A BRAKE MASTER CYLINDERFIG.503A BRAKE PIPINGFIG.510A ANTI LOCK BRAKE SYSTEMFIG.520A FRONT WHEEL BRAKEFIG.530A REAR WHEEL BRAKEFIG.542A PARKING BRAKEFIG.550A BODY MOUNTINGFIG.560A CHASSIS FRAME

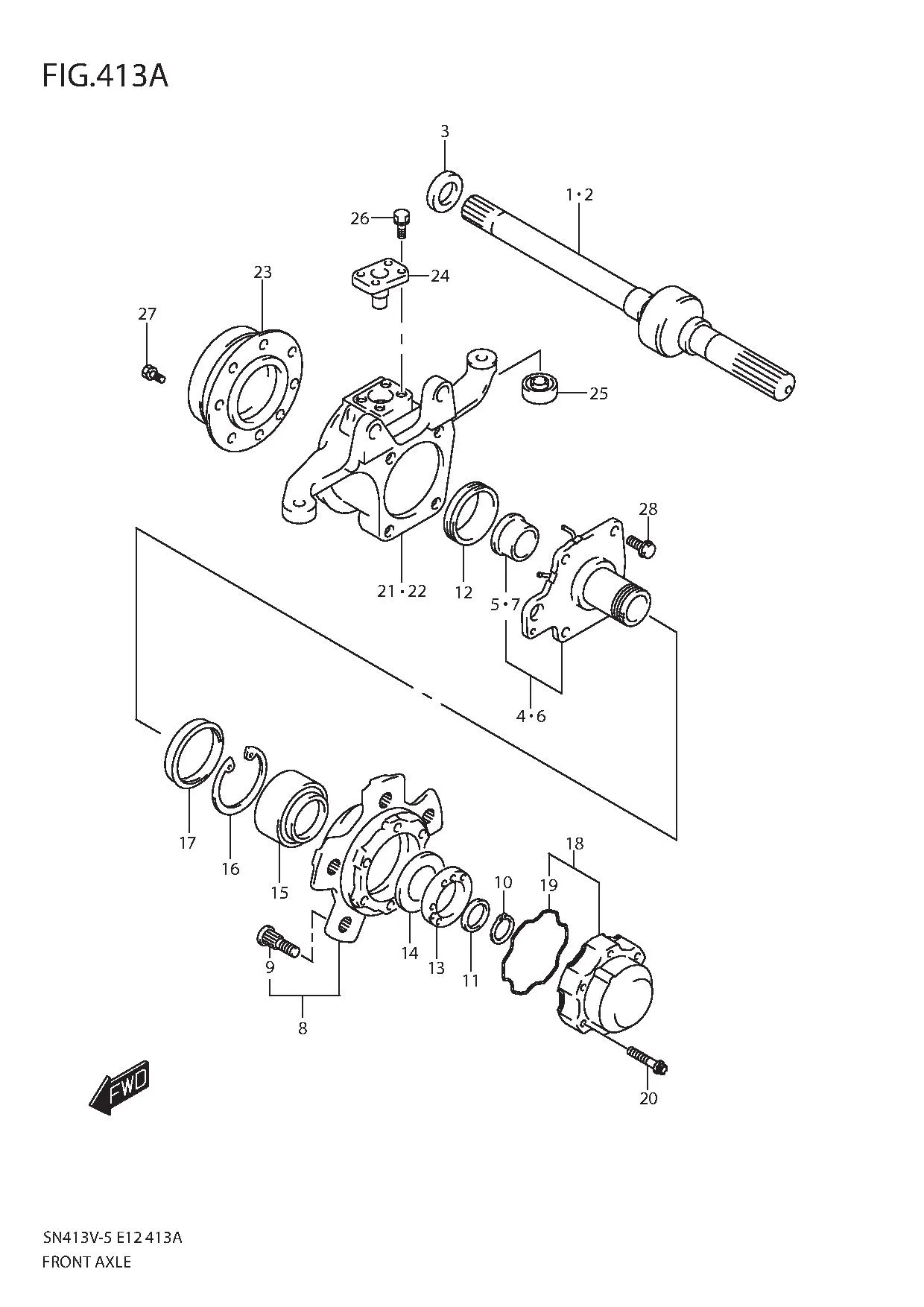

FIG.413A FRONT AXLE

FIG.413A FRONT AXLE
No No. Part Description Qty Price Per Pcs Remarks
1 44101-84A00-000 JOINT ASSY, FR AXLE SHAFT RH 1 Rp6.700.500
2 44102-84A00-000 JOINT ASSY, FR AXLE SHAFT LH 1 Rp6.700.500
3 09283-26016-000 OIL SEAL (26X38X8) 2 Rp47.500
4 43440-81A20-000 SPINDLE, FRONT WHEEL RH 1 Rp2.223.500
5 43445-60A11-000 •BUSHING, FRONT SPINDLE 1 Rp182.500
6 43440-81A30-000 SPINDLE, FRONT WHEEL LH 1 Rp2.213.500
7 43445-60A11-000 •BUSHING, FRONT SPINDLE 1 Rp182.500
8 43420-77830-000
SUB: 43420-76840-000		 HUB SET, FRONT WHEEL 2 Rp1.434.000
9 09119-12012-000 •BOLT (12X38) 10 Rp14.500
10 09380-26004-000 CIRCLIP 2 Rp28.500
11 44182-82CB0-000 WASHER, FRONT SPINDLE THRUST 2 Rp48.500
12 43446-82CB0-000 SEAL, FRONT WHEEL SPINDLE 2 Rp78.000
13 43461-82CB0-000 NUT, FRONT WHEEL BEARING LOCK 2 Rp584.000
14 43465-60A00-000 WASHER, FRONT WHEEL BEARING 2 Rp23.000
15 43462-84A00-000 BEARING, FRONT WHEEL 2 Rp1.151.000
16 09381-68001-000 CIRCLIP 2 Rp46.500
17 09283-54001-000 OIL SEAL (54X69X7) 2 Rp99.000
18 43810-76J02-000 HUB ASSY, AIR LOCKING 2 Rp4.771.500
19 43838-82CB1-000 •GASKET, AIR LOCKING HUB 2 Rp231.500
20 43811-81A00-000 BOLT, AIR LOCKING HUB 12 Rp43.500
21 45111-81A20-000 KNUCKLE, STEERING RH 1 Rp4.002.000
22 45151-81A20-000 KNUCKLE, STEERING LH 1 Rp4.002.000
23 45120-81A10-000
SUB: 45120-81A04-000		 SEAL ASSY, KNUCKLE 2 Rp407.000
24 45610-63002-000 PIN ASSY, KING 4 Rp622.500
25 09265-15006-000 BEARING (15X42X14.25) 4 Rp259.500
26 09117-08050-000 BOLT (8X20) 16 Rp17.500
27 45626-81A00-000 BOLT, KNUCKLE SEAL 16 Rp43.000
28 09117-10057-000 BOLT (10X25) 8 Rp32.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
