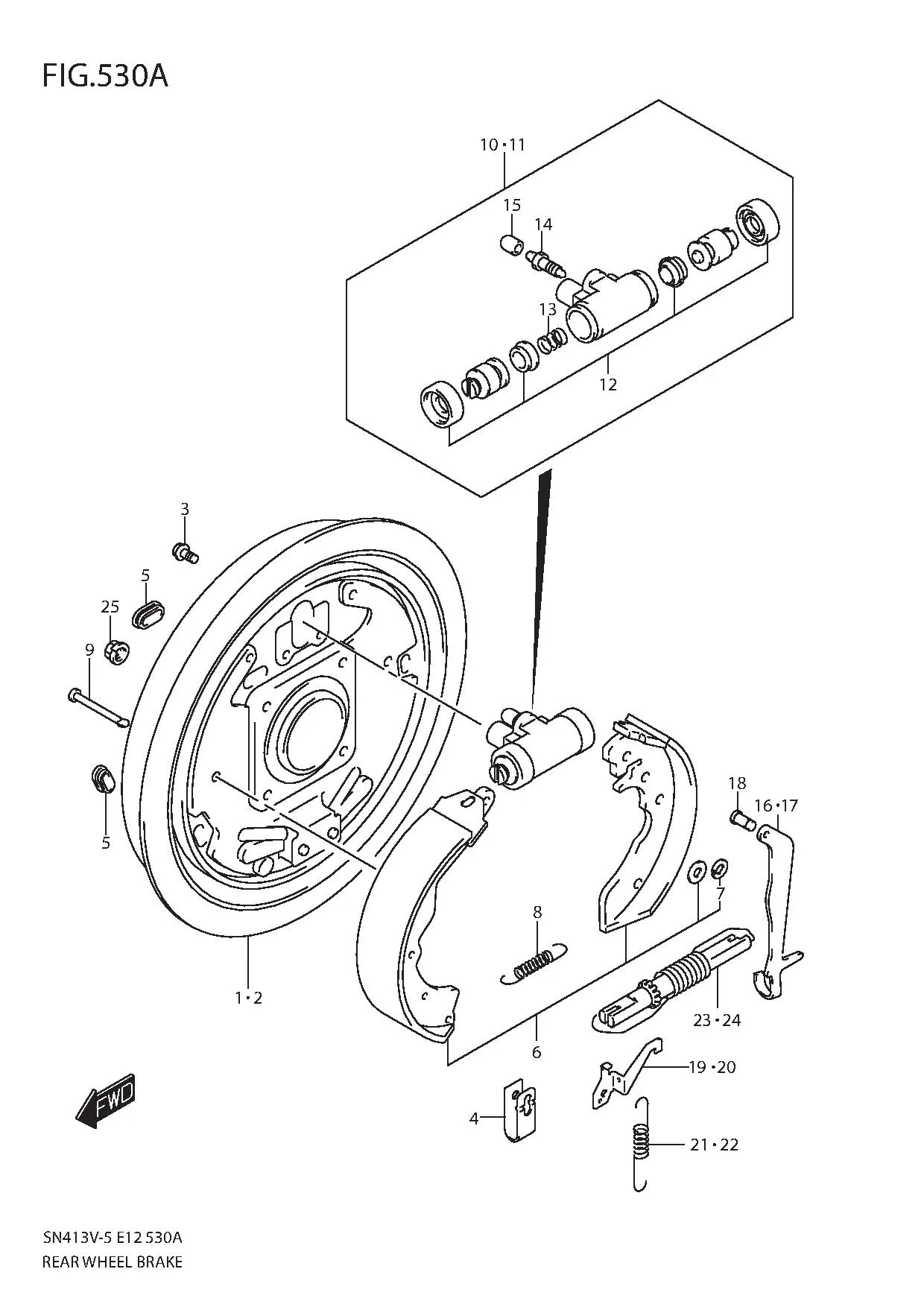

FIG.530A REAR WHEEL BRAKE

FIG.530A REAR WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 53110-81A01-000 PLATE, RR BRAKE RH 1 Rp1.264.000
2 53160-81A01-000 PLATE, RR BRAKE LH 1 Rp1.264.000
3 01550B0612BN000 BOLT 4 Rp2.500
4 52243-70AA0-000 SPRING, SHOE CLAMP 4 Rp38.000
5 53141-70A00-000 PLUG, BACKING PLATE 4 Rp6.500
6 53200-76J01-000 SHOE SET, BRAKE 1 Rp1.127.000
7 53751-50G10-000 •CLIP 2 Rp27.000
8 53231-81A00-000 SPRING, LOWER 2 Rp11.500
9 53241-50G10-000 PIN, SHOE HOLD DOWN 4 Rp8.500
10 53401-81A00-000 CYLINDER ASSY, RR BRAKE RH 1 Rp841.000
11 53402-81A00-000 CYLINDER ASSY, RR BRAKE LH 1 Rp841.000
12 53400-81A00-000 •PISTON CUP/BOOT SET 2 Rp149.000
13 53441-81A00-000 •SPRING, WHEEL CYLINDER 2 Rp26.000
14 52473-70AA0-000 •SCREW, BLEEDER LH 1 Rp11.000 LH
15 52474-70AA0-000 •CAP, BLEEDER SCREW LH 1 Rp8.500 LH
16 53721-81A01-000 LEVER, PARKING RH 1 Rp311.500
17 53726-81A01-000 LEVER, PARKING LH 1 Rp242.500
18 53731-50G10-000 PIN, PARKING LEVER 2 Rp31.000
19 53781-81A00-000 LEVER, ADJUSTER RH 1 Rp150.500
20 53782-81A00-000 LEVER, ADJUSTER LH 1 Rp146.000
21 53791-81A00-000 SPRING.ADJUSTER RH 1 Rp34.500
22 53792-81A00-000 SPRING, ADJUSTER LH 1 Rp33.000
23 53810-81A01-000 SPRING & ROD ASSY RH 1 Rp352.500
24 53860-81A01-000 SPRING & ROD ASSY LH 1 Rp352.500
25 09159-08075-000 NUT 8 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
